LINET MULTICARE 2015 User Manual

Project SERVICE MANUAL
Date
05-2017
Version 05
26/84

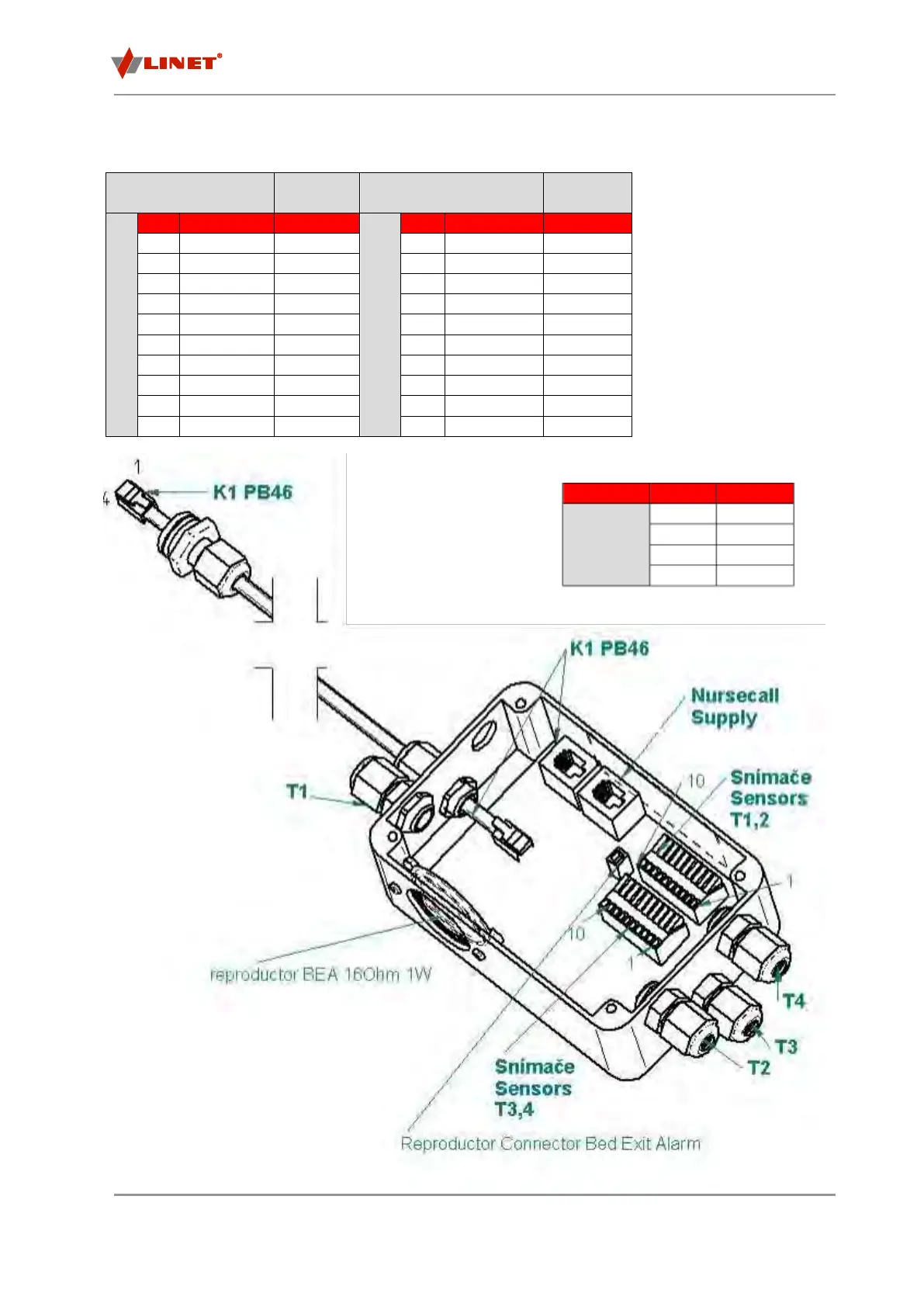

4.7 Scale tensometers
Model number of
tensometer
8300-0674A
Model number of
tensometer
8300-0674A
Sesnsors T1, T2
PIN
Meaning
Colour
Sensors T3, T4
PIN
Meaning
Colour
1
T1 shielding
transparent
1
T3 shielding
transparent
2
T1 – supply
brown
2
T3 – supply
brown
3
T1 + Output
green
3
T3 + Output
green
4
T1 – Output
white
4
T3 – Output
white
5
T1 + supply
yellow
5
T3 + supply
yellow
6
T2 shielding
transparent
6
T4 shielding
transparent
7
T2 – supply
brown
7
T4 – supply
brown
8
T2 + Output
green
8
T4 + Output
green
9
T2 – Output
white
9
T4 – Output
white
10
T2 + supply
yellow
10
T4 + supply
yellow
Connector
PIN
Meaning
K1
PB46
1
+
2
Tx
3
-
4
Rx
