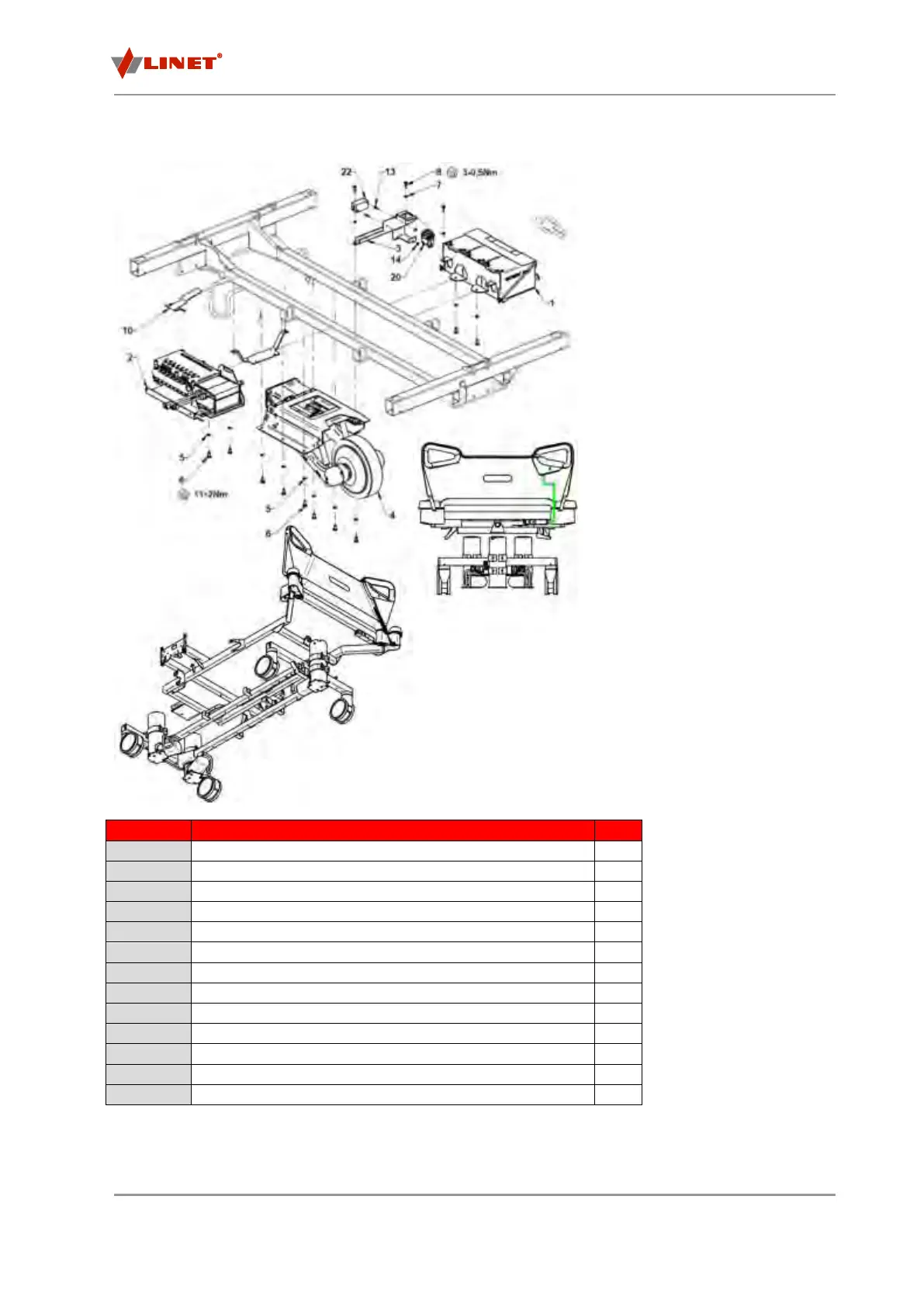

4.12 I-Drive Power wheel
POSITION
PART NAME
PCS
1
AKU Assembled
1
2
i-Drive control box
1
3
Cable ribbon
1
4
Drive wheel assembly
1
5
Fan-shaped washer 6,4 DIN 6798A – steel/zinc
10
6
Tapping screw M6x16 VALCOC Torx 30 DIN7500-C
10
7
Toothed washer steel Zn 5,3/10/0,6 DIN6797A
3
8
Tapping screw M5x18 VALCOC Torx 25 DIN7500-C
3
10
Cable clip
1
13
Connecting screw M4x12 IMB DIN912
2
14
Selflocking nut M4 DIN985
2
20
Battery disconnecter Schurter
1
22
*
