LINET MULTICARE 2015 User Manual

Project SERVICE MANUAL
Date
05-2017
Version 05
34/84
27
Hex screw M6x50 DIN933
1
28
Embedded screw M8x40 IMB DIN7991
1
29
Embedded screw M5x8 IMB DIN7991
1
33
Selflocking nut M4 DIN985
1
34
Distance washer 4,3 DIN125A
2
35
Upper gas spring cog – long
1
36
Distance bushing 8x12x41
1
38
Distance washer S235JRG2 (235MPa)
1
39
Wheel shelter
2
43
Cylindric screw imbus M6x8 IMB DIN912, 8.8, EsLock
1
44
Nut M6 DIN439
1
50
Screw
4
55
*
1
56
Wheel
1
57
Toothed washer
2

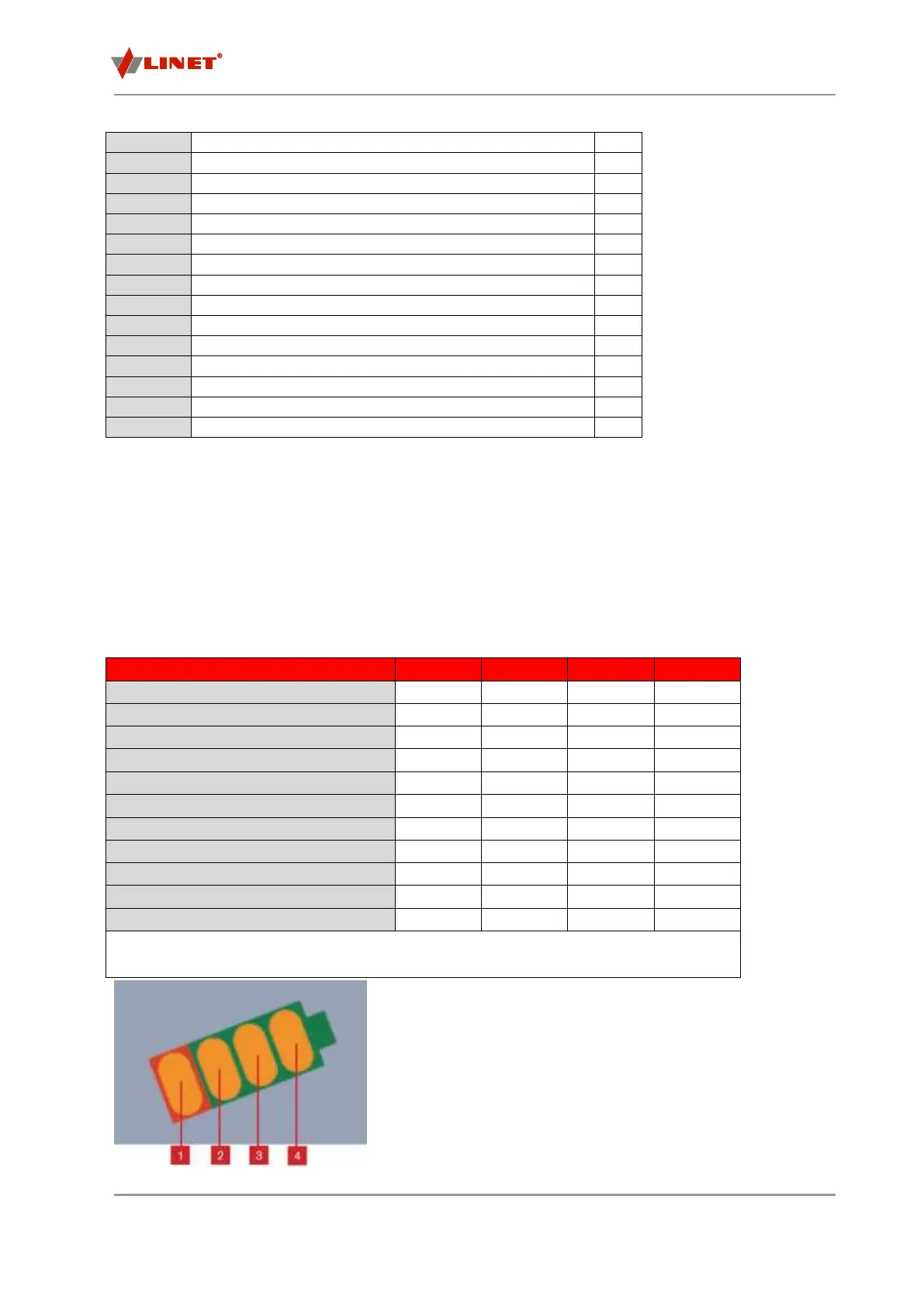

4.12.3 Fault signalisation
The system is protected against failure states by stopping and braking the drive system and then signalising the type
of failure. The fault is indicated by brief flashes and the battery indicator shows the fault state. Some of the defects
can be cleared automatically (eg: drive overheating).
Error
LED1
LED2
LED3
LED4
Drive overheated*
Off
Off
Off
On
Electronics overheated*
Off
Off
On
Off
Brake error
Off
Off
On
On
Retraction not completed
Off
On
Off
Off
5V off limits
Off
On
Off
On
FET closing penetrated
Off
On
On
Off
Control circuit overheated
Off
On
On
On
Control circuit error
On
Off
Off
Off
Activation button stuck
On
Off
Off
On
Retraction button stuck
On
Off
On
Off
Active button after start
On
Off
On
On
*An acoustic signal occurs before the drive is blocked (short acoustic signalisation)
NOTE the LED indicators are numbered from the left.
Battery indicator levels:
1.
Flashing: critically discharged
2.
50% charged
3.
75% charged
4.
100% charged
