Connecting the TV set

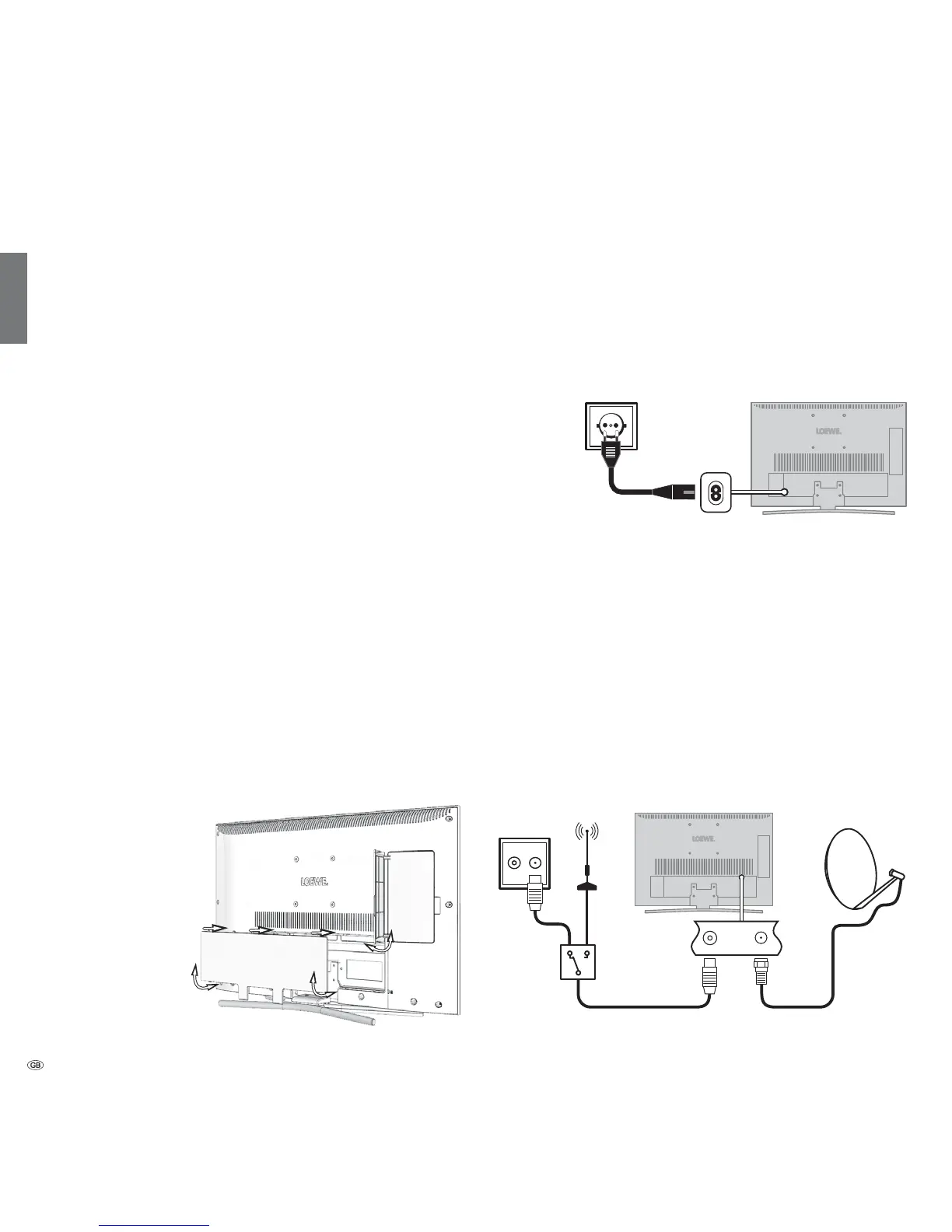

Connecting to the mains
Remove the cover for the connections.
Connect the TV set to a 220-240V mains socket:
First plug the small plug of the power cable into the mains connection on
the back of the TV (only for Connect 26) and then plug the large mains
plug into a mains socket.
Connecting antennas
Cable (analogue) / DVB-C / DVB-T antenna:
Plug the antenna cable of antenna, cable system or room antenna into
the ANT TV socket.
If you want to use analogue cables / DVB-C connection and a DVB-T
antenna together, use an external antenna switch (available from your
dealer).
Satellite antenna DVB-S:
Depending on the used satellite system, connect a connecting cable from
the multi-switch or directly from the LNC to the ANT-SAT socket of the TV.
When connecting the TV set to a single cable community antenna, con-
nect the ANT-SAT socket directly to the appropriate SAT antenna socket.
Ask your dealer if required.
Installing the TV set
Installation options
Your TV set is supplied equipped with a table stand. You are given the
option of choosing another installation solution tailored to your require-
ments from your Loewe dealer. Only use Loewe installation solutions (e.g.
wall mounts, floor stand) that are included in the Accessories – Setup
possibilities chapter on page 106.
After selecting an installation option, read the appropriate assembly
instructions.
Installation notes
Choose a place for installing your TV where no bright light or sunlight
shines directly onto the screen. This could cause reflections which impair
the picture.
3 times the screen diagonal can be taken as a guide value or the view-
ing distance (e.g. for 26-inch set approx. 2m for SD signal). The viewing
distance can be reduced with an HD signal.
Set covers
Covers for rear and side connections
To remove the rear cable cover, pull at the bottom end of the cover and
fold it out of the unit.
To fit the cover, insert the lugs at the top edge of the cover into the corre-
sponding cut-outs in the rear panel and push up the cover until it snaps in.
The side cover of the TV set can also be completely removed. For this,
open it as far as it will go and gently pull on the open cover.
The cover detaches from the holder and gives free access to the con-
nection area. To replace the cover, simply push it until it latches back
into place.
R TV
DVB-T
DVB-S
analogue
cable /
DVB-C
