GB-15
PreparationConnectionsInitial SetupUsing the FeaturesHints and Tips, Specification
and Safety Warnings
Using the Features
via USB port
Rear View of TV
VGA PC AUDIOCOAXIAL
S-VIDEO
SCART1
SCART2
HDMI2 HDMI1
VGA PC AUDIO COAXIAL
S-VIDEO
SCART1
SCART2
HDMI2 HDMI1
Rear View of TV
VGA PC AUDIOCOAXIAL
S-VIDEO
SCART1
SCART2
HDMI2 HDMI1
HDMI3USB
CARD FACE FRONT

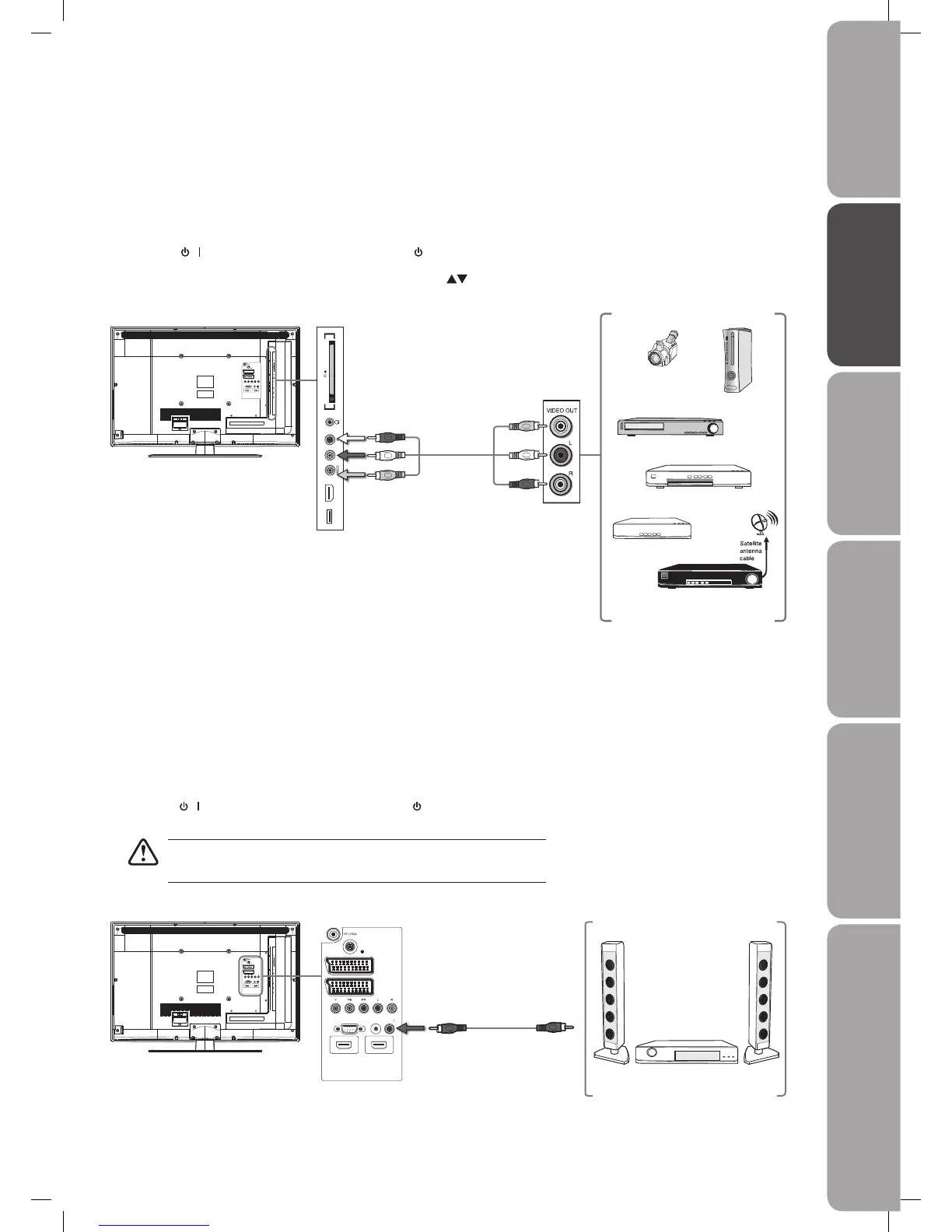

Connecting a Coaxial Audio Receiver
For better sound quality, you may want to play the DVD audio through your multi-channel audio receiver.
1. Use an audio cable to connect the TV’s COAXIAL output socket to an external audio receiver’s audio coaxial input socket.
2. Plug the connected devices into the mains socket before switching on the POWER ON/OFF switch at the right bottom of the
TV.
3. Press the
/ button on the right side of the TV or the button on the remote control to turn on your TV and your audio
receiver.
Satellite Receiver
Video Camera
VCR
DVD Player
Set-top Box
Game Console
Connecting an AV Device with a Composite Cable
1. Use the supplied AV cable to connect the TV’s AUDIO(L/R)/VIDEO input sockets to an external AV device’s composite audio/
video sockets. (Video = yellow, Audio Left = white, and Audio Right = red)
2. Plug the connected devices into the mains socket before switching on the POWER ON/OFF switch at the right bottom of the
TV.
3. Press the
/ button on the right side of the TV or the button on the remote control to turn on your TV.
4. Press the SOURCE button to display the Source List. Use the
buttons to select AV and then press the OK button to
confirm.
AV Cable
(included)
Yellow (VIDEO)
Yellow (VIDEO)
Red (R)
Red (R)
White (L)
White (L)
Audio Cable
(not included)
Audio Receiver
Both of our TV and audio receiver have audio output, please turn off the
volume of your TV and control the audio level via the audio receiver.
L32DIGB20_IB_final110325_running change_PN not updated.indd 15 25/03/2011 7:11 PM
