4 -26
▶ When adjusting the wheel track, pay attention to the direction of tire lugs. If it
shows “/\” shape when looked behind, it is correct.
▶ Actual settings may vary depending on the brand of the rim and type of tire.
Notice
▶The tractor wheels are very heavy. PLEASE BE CAREFUL.
▶When removing the wheels, proceed with extreme caution, use a suitable hoist and
specific equipment to move the heavy parts.
Warning
(6) Adjusting Wheel tracks and Tire replacement
② Rear wheel

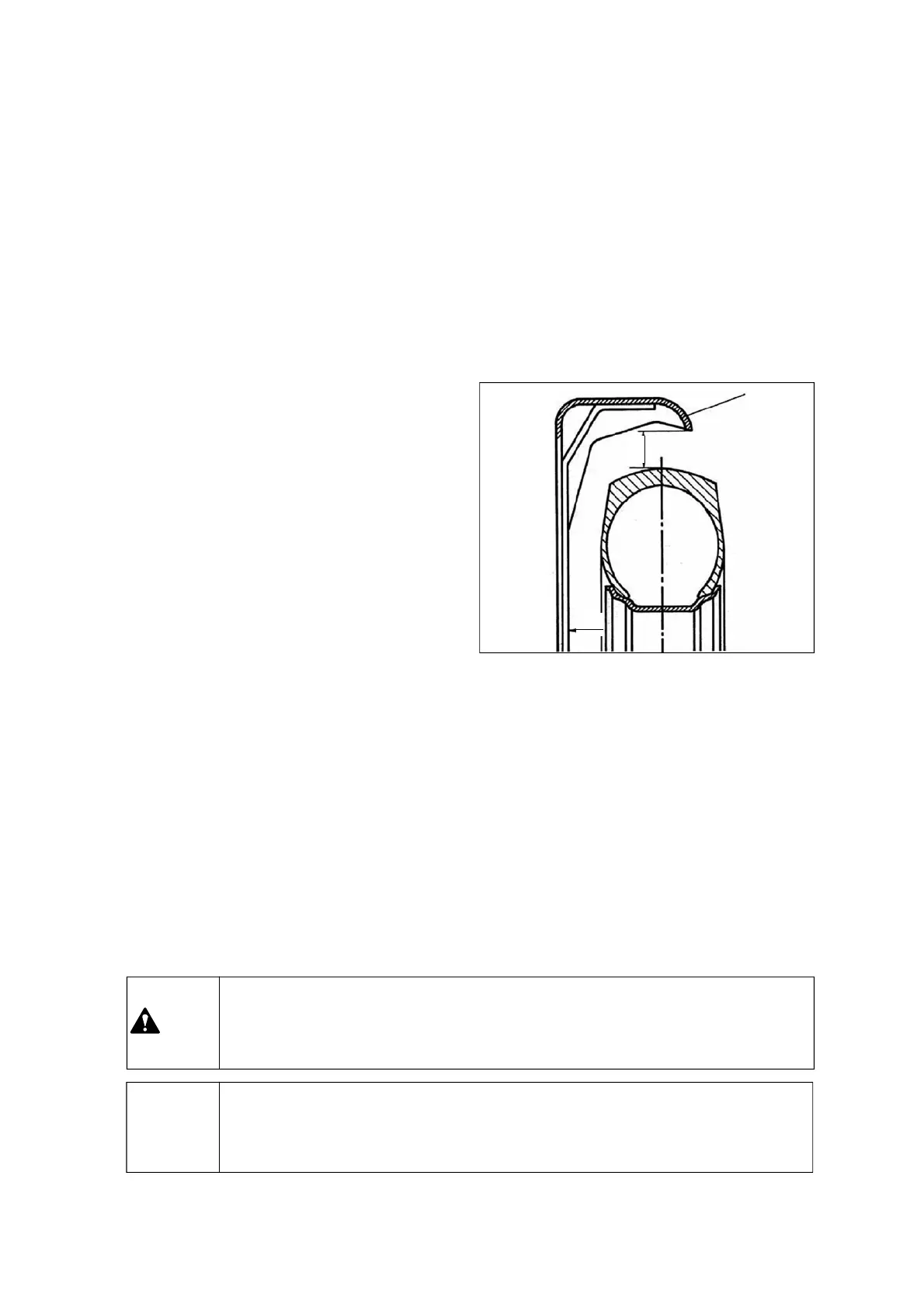

When changing the rear wheels, check the radial
and lateral clearance between rear tire and
tractor chassis as below.
- A : 15mm (0.6 in) (Minimum)
- B : 30mm (1.2 in) (Minimum)
“A”
“B”
FENDER
① Front wheel
The rim and disk assembly of the front wheel is not adjustable type.
If the front wheels are replaced, check the clearances between tires and tractor body case by case.
If necessary, the steering angle must be adjusted. (See chapter 4-5-(8) in this manual.)
③ Standard track
Standard wheel track for this model as below.
(when applying front tires: 23x8.50-12, rear tires:
12-16.5)
- Front wheel track: 915mm
- Rear wheel track: 930mm
To Next Page
