5 -45
Main fuse
Chassis fuse box
▶
If the same function fuse is damaged repeatedly, contact your authorized local
dealer for check instead of using a substitute such as wire or aluminum foil.
▶
If using the substitute instead of the rated capacity fuse, it may cause a fire which
results in damage of the tractor or personal injury.
Caution
①

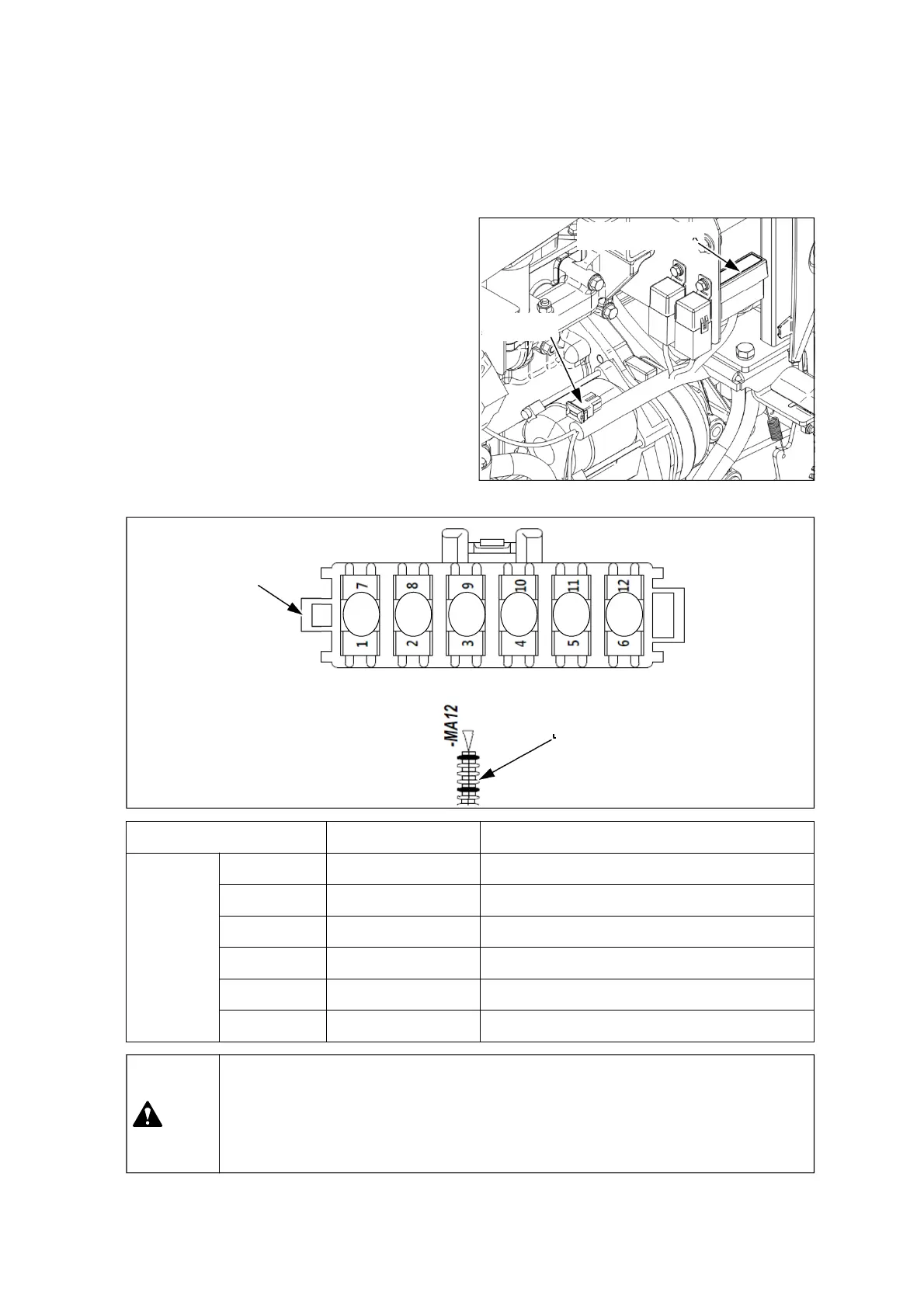

Fuse check and replacement
Chassis fuse box is installed on the main electric
wiring harness on the left-hand side of the
engine as shown in the right figure.
How to replace the fuse.
1. Remove the fuse box cover (if fitted).
2. Check each fuse and remove the damaged one.
3. Replace it with a new one such as a damaged
one.
The capacity and function of each fuse is
described on the fuse box cover.
(2) Fuse & Main fuse
Fuse box
Electric main harness
F6
Fuse Location Fuse capacity Circuit
HST
F1 15A ECU
F2 10A Controller / Switch
F3 10A Work / Brake / Turn signal lamps
F4 15A PTO / Power socket
F5 10A ECU / Rack actuator
F6 15A Hazard warning lights
F5F4F3F2F1
