3 -9

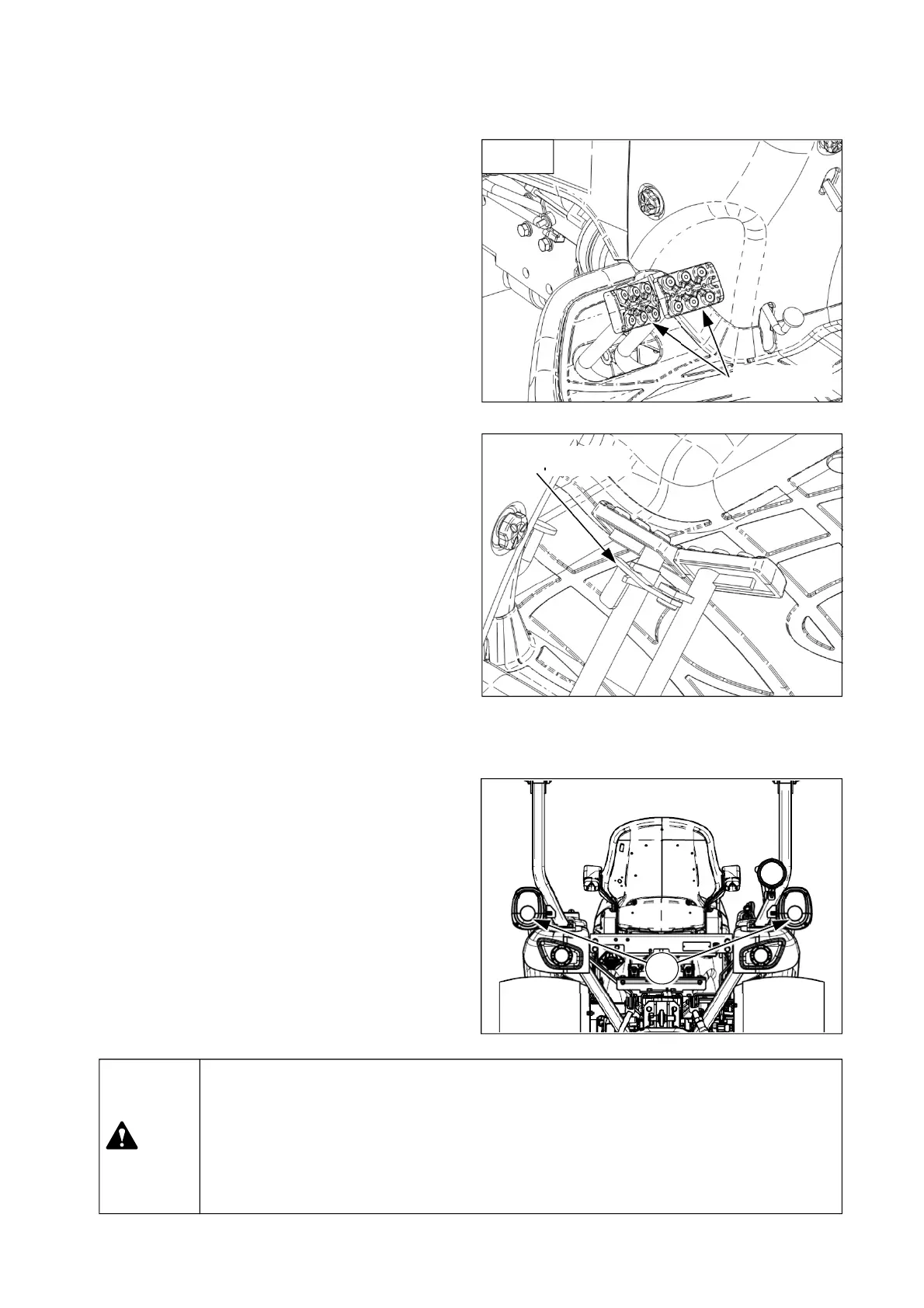

(5) Brake pedals
This pedal is used to stop the tractor in an
emergency status.
In a normal operational status, the tractor shall
be stopped when releasing the HST pedals.
If the 4WD is disengaged, the braking force is
only applied on the rear wheels.
The brake pedals are installed on the left-hand
side of the step floor.
HST
Brake pedals
Caution
▶ For HST model, when releasing HST pedal, the pedal shall be return to neutral
position and the HST brake begins to work. But, press down the brake pedal
additionally in an emergency state.
▶ DO NOT ride your foot on the brake pedal while driving. If so, it may cause a
failure of the brake device.
2
The brake lights② will illuminate when the brake
pedal is depressed and the key switch in the
“ON” position.
The brake pedals of your tractor can be operated
independently after disconnecting the brake
pedal latch. The left/right brake pedals transmit
braking force on each wheel.
To reduce the turning radius in work field, release
the brake pedal latch, and press only the
left/right pedal firmly.
DO NOT press the one-side brake pedal while
the differential lock is engaged. It may cause
damage or a failure of the axles.
Brake pedal latch
