Do not assemble a wet filter element.
▶
Do not dry the wet filter element by using the compressed air.
▶
Do not start the engine if air filter element is not assembled.
Notice
②
Assembling filter element
z
Clean the inside of the air cleaner housing using a clean damp cloth, taking care not to damage the
safety element.
z
Check if there is damage inside filter element by using a light. If there is tiny crack or small hole in the
filter element or the gasket is damaged, replace it with a new one.
z
Insert the filter element by pushing it deeply into the filter housing.
z
Remove the dust of the evacuator valve and clean the inside of the cover.
z
Assemble the cover with the evacuator valve placed downward.
▶
Do not start the engine or close the hood if the filter element is not assembled..
Notice
z
If the dust is not removed by tapping, use
compressed air (less than 500kPa (5bar; 72psi))
from inside to outside as shown in the right
figure to remove the dust and foreign materials.
And clean inside the filter element with a clean
damp cloth.
▶
Do not tap the element on a
hard place when cleaning.
▶
If the element is cracked,
change it with new one.
Notice

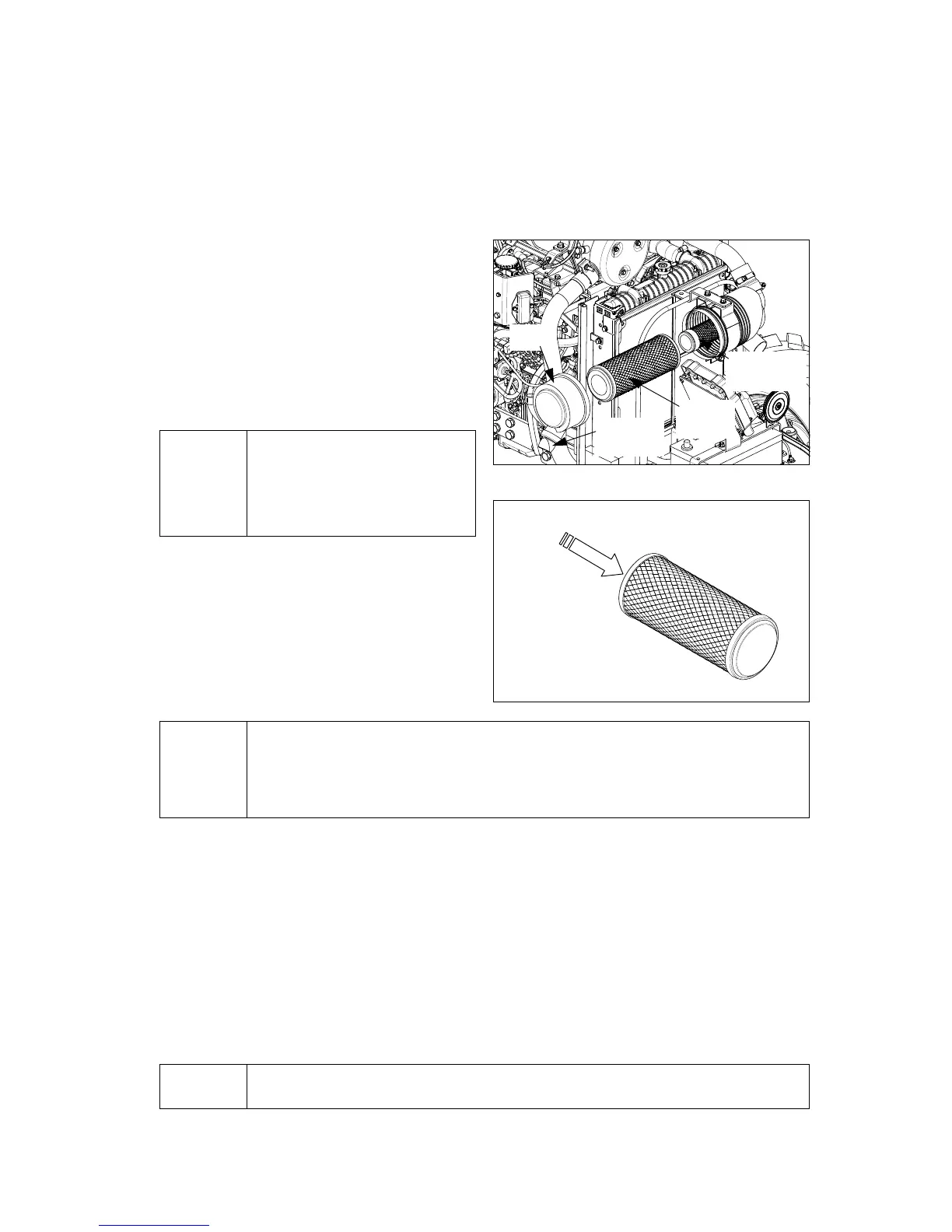

(6) Air cleaner (Dry type)
①
Cleaning filter element
z
Remove the cover and pull the primary element
straight out, ensuring the safety filter element
remains in place.
z
When cleaning the element in the working field,
tap the element by hand to remove the dust
Cover
Primary
element
Evacuator
valve
Safety filter
element
(5) Engine coolant
z
See section 5-12-(1), Replacement of engine coolant” in this manual.
