4 -13

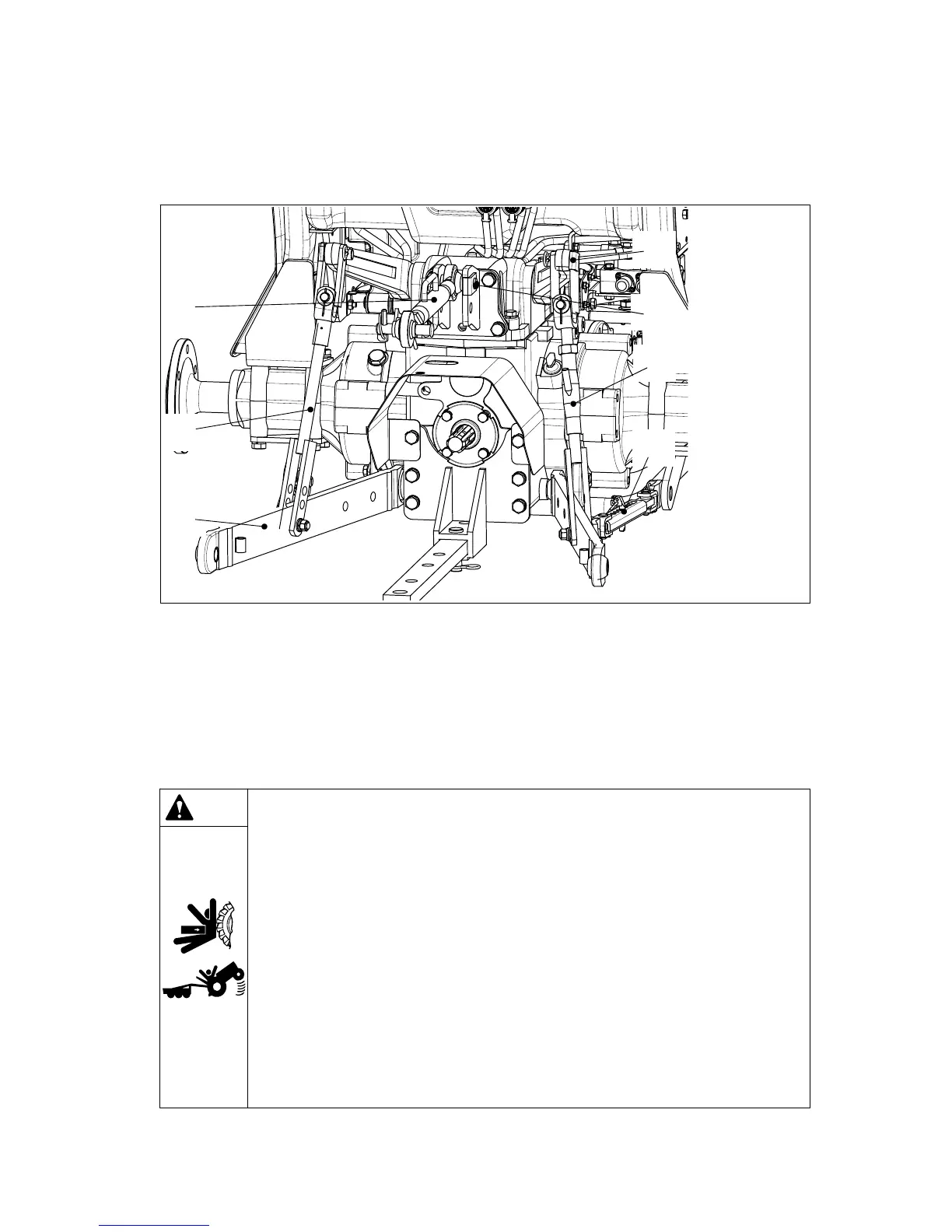

(1) 3-point linkage
4-4. Attaching Implement
Warning
▶Before attaching/detaching implement, place PTO switch in OFF position and PTO
gear lever (if fitted) in neutral position, and apply parking brake.
▶When attaching/detaching implement, make sure to assemble and tighten the
connecting parts correctly.
▶if the tractor is used to tow heavy loads, always use the approved drawbar or hitch
to avoid injury. Never connect to lower link or upper link of 3-point linkage. If not, it
may cause tipping or turnover.
▶DO NOT connect implements that require more power than can be generated by
your tractor.
▶Never stand between implement and tractor when connecting implement.
▶DO NOT change the setting pressure of the relief valve arbitrarily to increase the lift
capacity of the 3-point linkage. It can cause fatal damage to the hydraulic system.
z When attaching the implement, comply with the followings.
1. Set the implement upright on a level surface and approach the implement in reverse.
2. Stop the tractor on attaching position and apply the parking brake.
3. Connect the lower link(3) to implement and insert firmly the lock pin. (left, right)
4. Connect the upper link(5) to implement and insert firmly the lock pin. Wide adjustable range of the
upper link provides you easier attachment.
5. Fix the implement firmly with stabilizer(2).(left, right).
①
④
③
⑤
②
⑥
⑦
① Lift rod (LH)
② Stabilizer
③ Lower link
④ Lift rod (RH)
⑤ Upper link
⑥ Lift rod pin
⑦ Upper link pin
