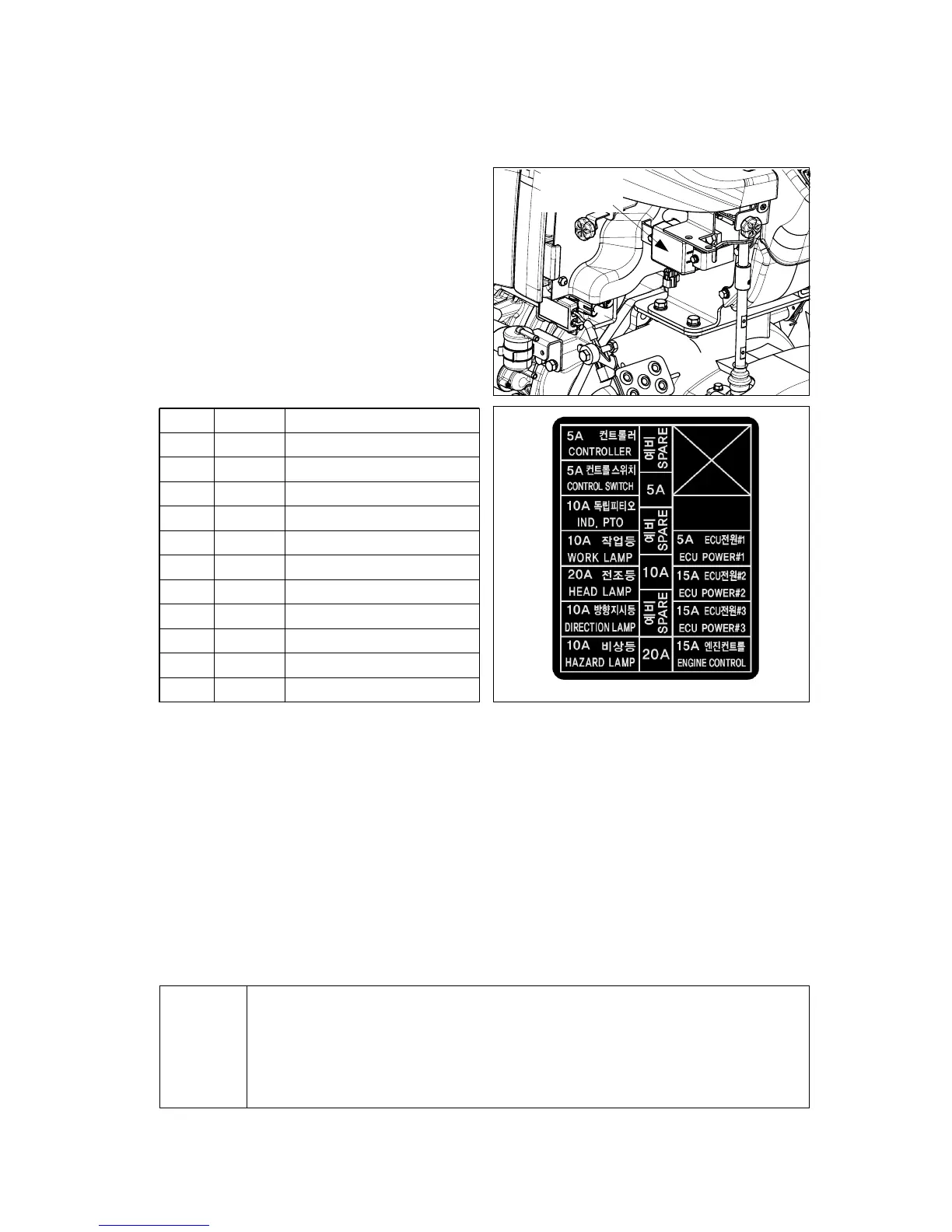

Fuse check and replacement
z
How to change the fuse
1. Remove the cover of fuse box.
2. Check each fuse and remove the damaged
fuse.
3. Change with new one same as damaged one.
z
Body fuse box is located under the front console
and cabin fuse box is on the left cabin pillar.
z
The capacity and function of each fuse is
described on the fuse box cover.
(2) Fuse & Main fuse
< Fuse box for chassis >
▶
If the same function fuse is damaged often, contact your authorized dealer for
check instead of using the alternatives such as wire or aluminum foil.
▶
If using the alternatives instead of the rated capacity fuse, it may cause fire which
results in the damage of tractor or injury.
Notice
Fuse box
for chassis
No. Fuse Descriptions
1 5A ECU power#1
2 15A ECU power#2
3 15A ECU power#3
4 15A Engine control
5 5A Controller
6 5A Control switch
7 10A Independent PTO
8 10A Work lamp
9 20A Head lamp
10 10A Directional lamp
11 10A Hazard lamp
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
