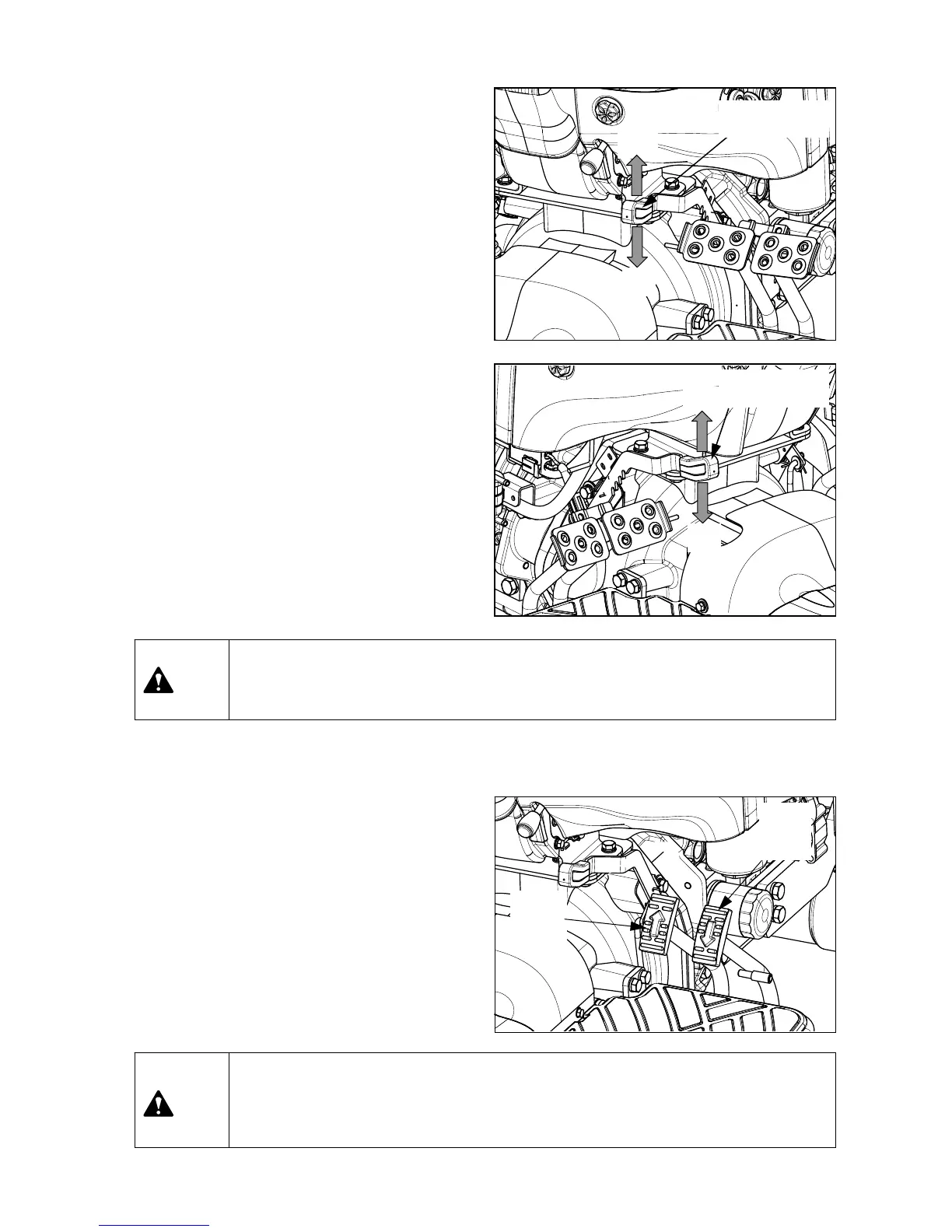

(16) HST forward/reverse pedal
(HST type)
z Press the HST forward pedal slowly in order to
move forward and if release the pedal, it returns
back to the NEUTRAL position, and tractor stops.
z The HST reverse pedal is as same as the HST
forward pedal operation.
warning
▶Press the brake pedal to prevent stopping distance from being extended when
driving in high speed .
▶DO NOT operate the pedal hastily. It may cause a shock to you.
HST
reverse
pedal
HST
forward
pedal
(15) Parking brake lever
z Connect brake pedals each other with brake
connection plate.
z Push down the parking brake lever while
pressing the brake pedals and check that
serrated part is engaged to left brake pedal.
z Release the brake pedals slowly to check
slippage of the tractor.
z To release the parking brake, just press the
brake pedals little harder and check if parking
brake lever goes to its original position by spring.
Caution
▶ DO NOT drive the tractor while parking brake is engaged. It may cause damage of
brake or parking brake system.
Parking brake
lever
OFF
ON
Parking brake
lever
OFF
ON
