Installation
MXD73 Add-in Cards Installation
The MXD73 is designed to be expandable by the use of add-in cards; these add-in cards can
take the form of either a sensor input add-in card or an output option add-in card. The
MXD73 can be fitted with up to 3 sensor input cards and 1 output option card. The sensor
input cards are designated Input Card 1, Input Card 2 and Input Card 3. On the instrument
display these are designated Channel 1, Channel 2 and Channel 3.
L Electrostatic precautions must be taken when handling the Add-in cards
.

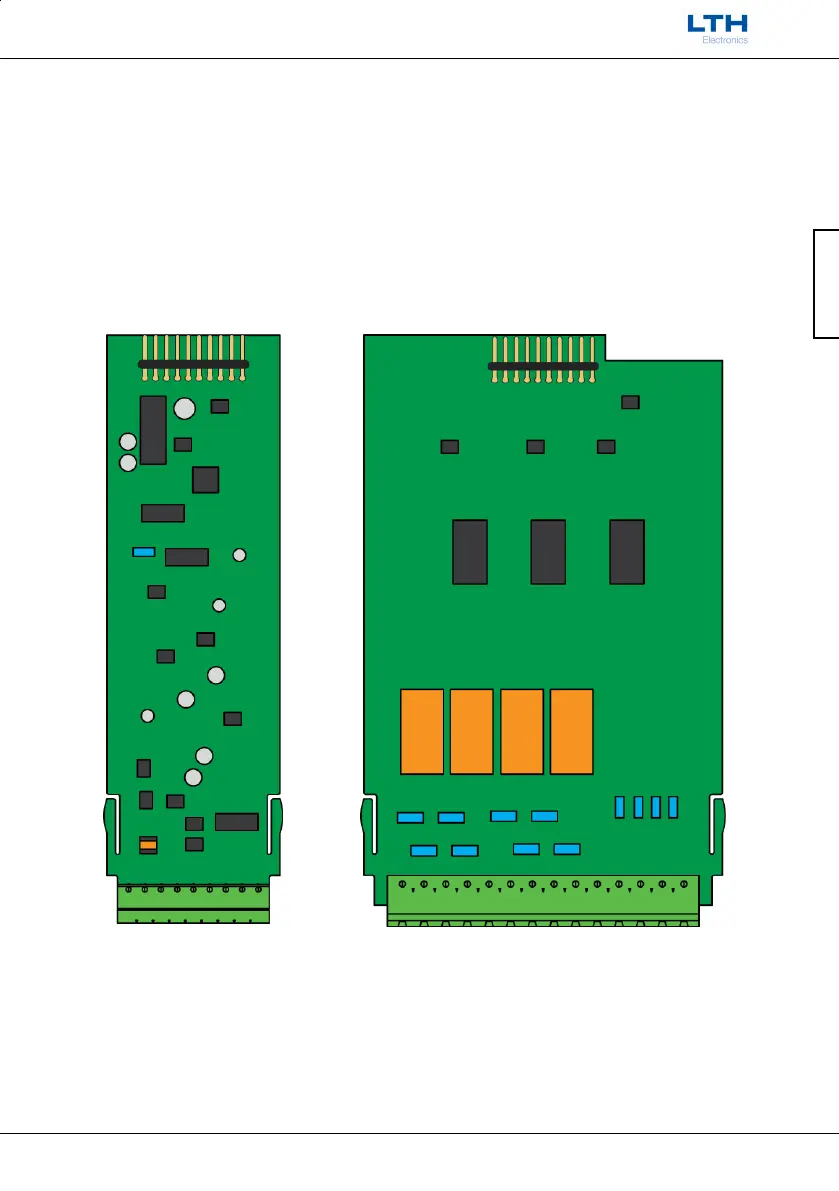

Sensor Input Card
Profile
Output Option Card Profile
N.B. Cards must be inserted with the green connector towards the rear of the instrument
case.
