LTH Electronics MXD73 User Manual

Configuration
User Interface Guide
- 15 -
Configuration
Setup Front Screen

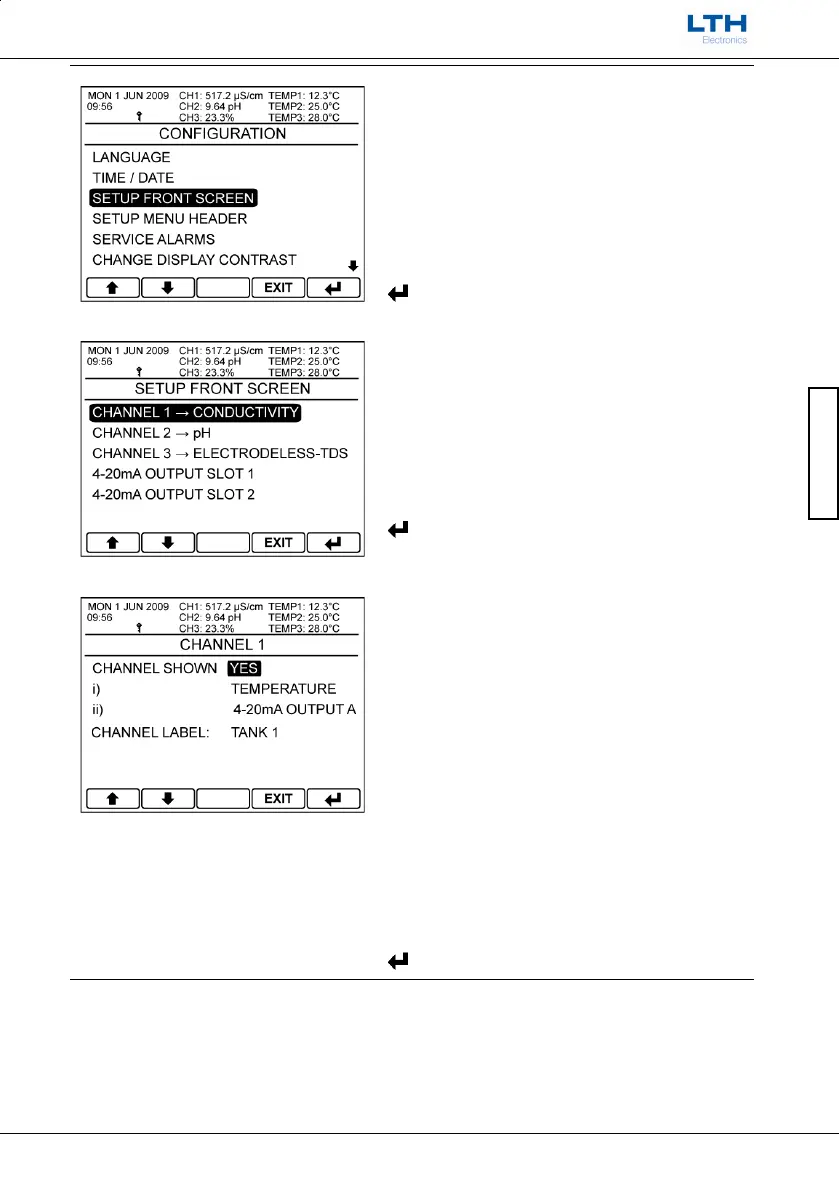

This allows the user to customise the information the
front screen displays
/
– Select Option
EXIT
– Return to Main Menu
– Enter Option
Select Front Screen Channel
Select which front screen channel you wish to edit
/
– Select Option
EXIT
– Return to Configuration Menu
– Enter Option
Channel Setup
•
Channel shown – Select whether the channel is
shown or not.
•
i), ii) – Define which is displayed in the either of the
two secondary reading slots. Available options
depend on the selected input card type but
include temperature, sensor current, pressure and
any associated current output values.
•
Channel Label – Define the channel label that
appears on the front screen adjacent to the
channel reading (7 characters maximum).
/
– Select Option
EXIT
– Return to Configuration Menu
– Enter Option
