MXD70 Setpoints, Current Outputs, and
Digital Inputs Configuration Guide
Current Outputs
Current Output Calibration
The user is provided with an opportunity to adjust the current output to calibrate any equipment that
may be being used to monitor the current output signal.

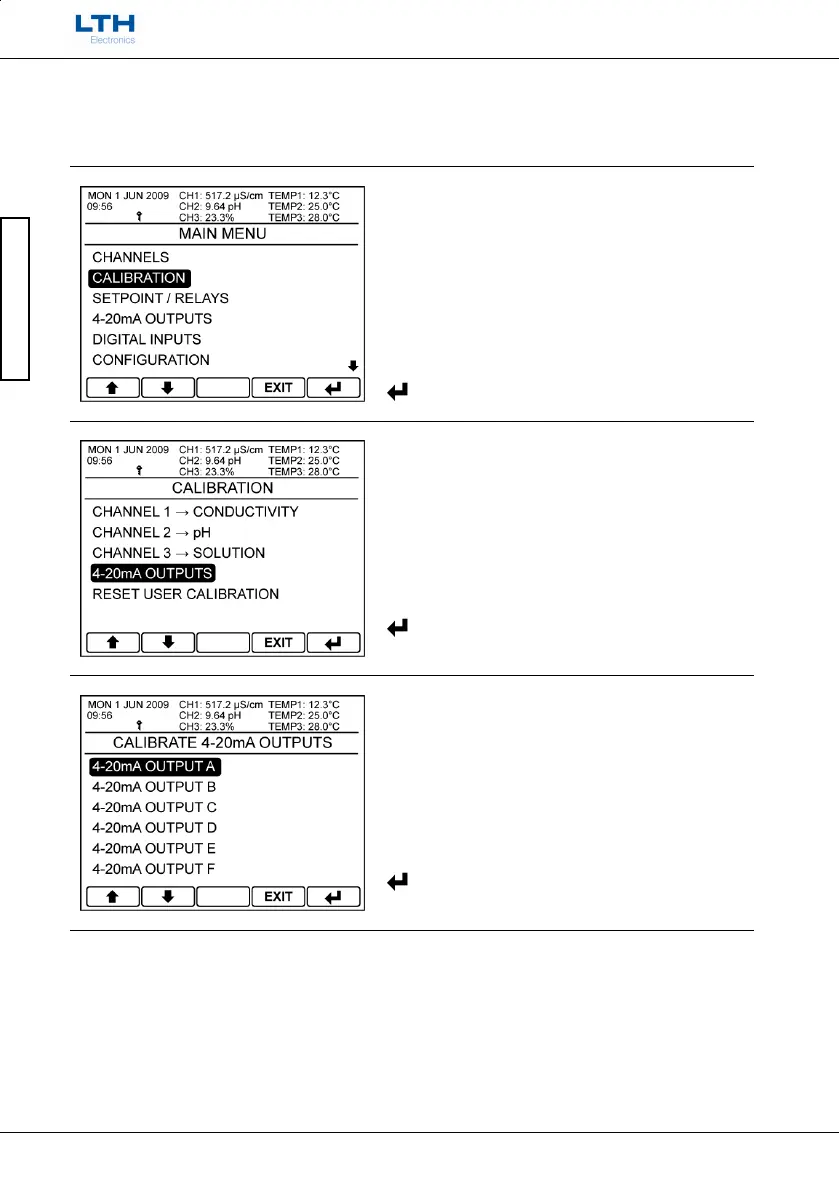

Main Menu
From the front screen press the menu button to show
the main menu options and select Calibration.
/ – Select Option
EXIT
– Return to Front Screen
– Enter Option
Calibration
Select 4-20mA Outputs.
/ – Select Option
EXIT
– Return to Main Menu
– Enter Option
Calibrate 4-20mA Outputs
Select the current output you wish to calibrate.
/ – Select Option
EXIT
– Return to Calibration
– Enter Option
