Installation
MXD75 Installation Guide
- 19 -
Installation
Installation – MXD75
The MXD75 Surface mount instrument is designed for fixing to a wall or other flat surface.
Three 6.5mm diameter holes are provided for this purpose. Note that fasteners are not
provided.

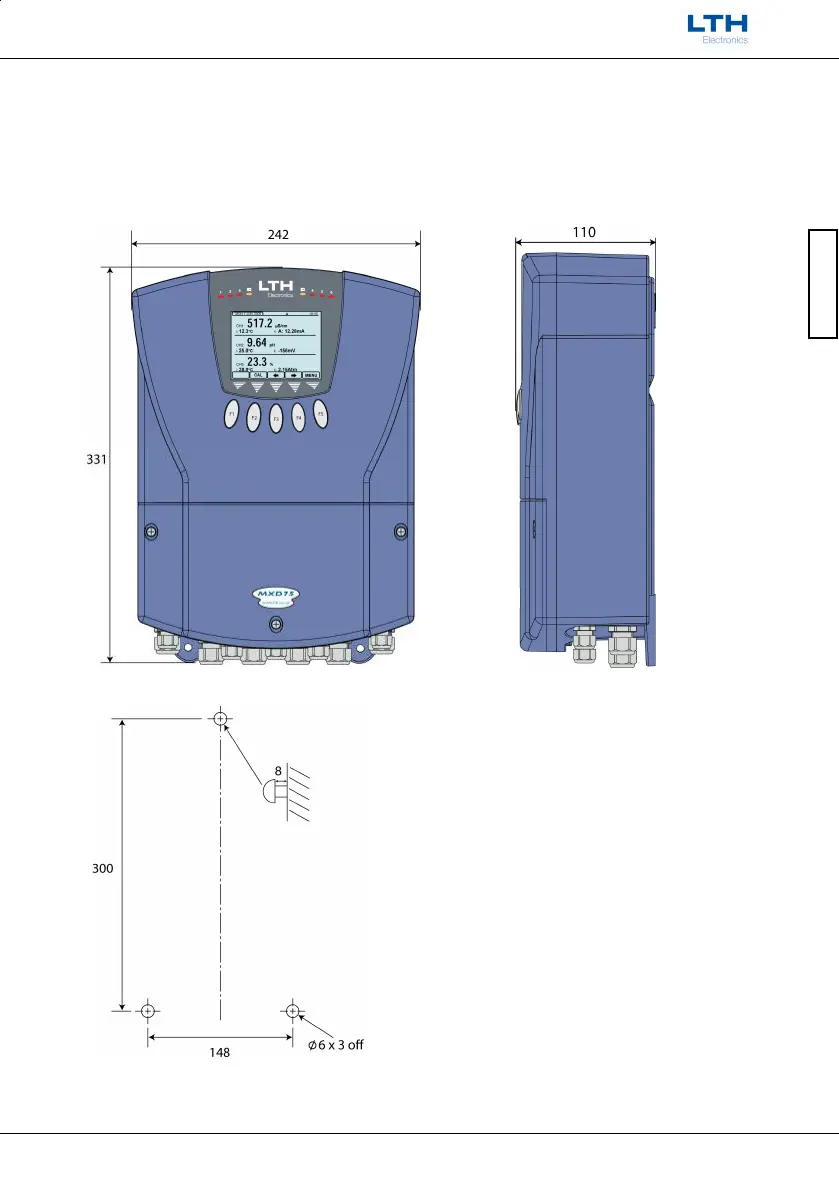

MXD75 Overall Dimensions
LTH Recommends using No. 10
x 1¼ inch round head screws or
similar for mounting.
Ensure top screw head is 8mm
proud.
Care must be taken when fitting
the unit on uneven walls or
surfaces. Do not over stress the
mounting lugs.
Over tightening the mounting
screws could also break the
lugs.
Drill Hole Dimensions
