Simulate Channels
MXD70 Setpoints, Current Outputs,
and Digital Inputs Configuration Guide
- 33 -

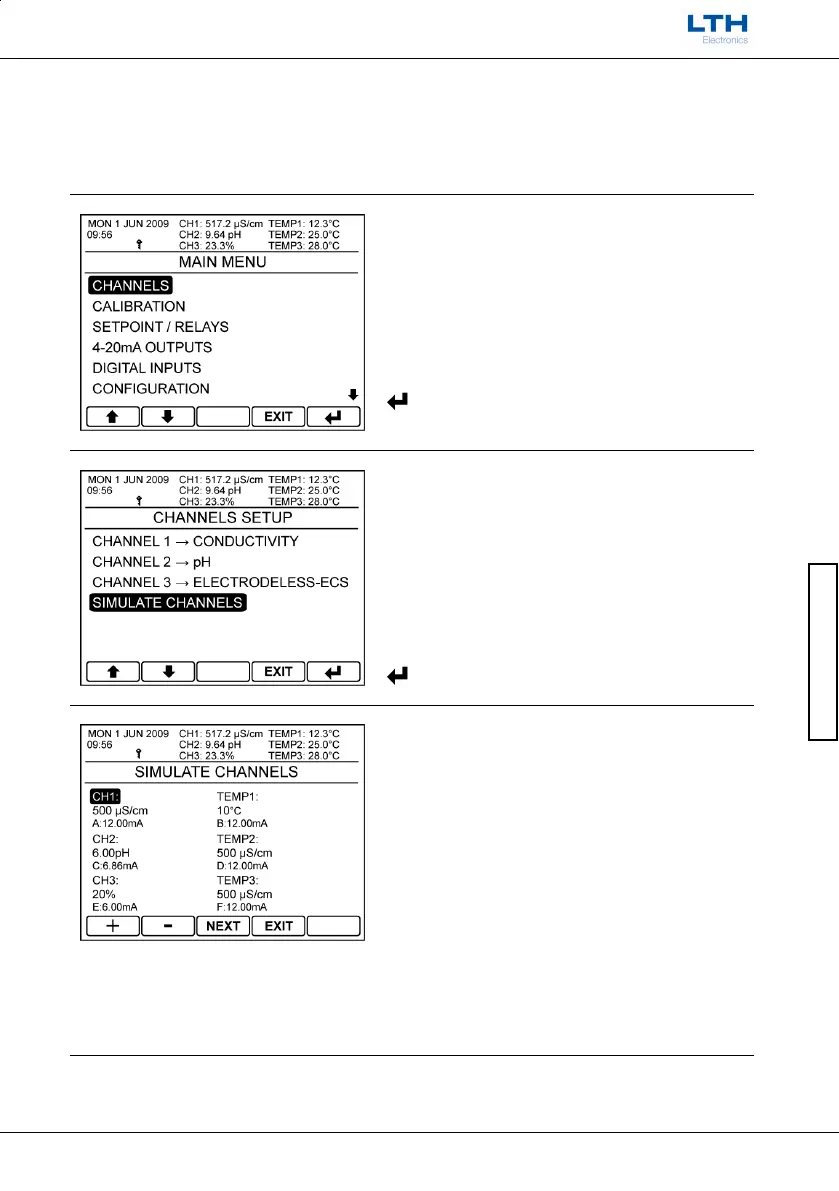

Simulate Channels
Simulate Channels
The facility exists within the MXD70 series to simulate the input sensor levels to test the setpoint and
current output operation. This function allows the user to cycle up and down through the sensor range
whilst displaying the current output level, and with the relays responding accordingly.
Main Menu
From the front screen press the menu button to
show the main menu options and select Channels.
/ – Select Option
EXIT
– Return to Front Screen
– Enter Option
Channels Setup
Select Simulate Channels, or alternatively to only
simulate one channel select Simulated Input in the
individual channel setup menu.
/ – Select Option
EXIT
– Return to Main Menu
– Enter Option
Simulate Channels
Select the sensor or temperature you wish to
simulate and observe the associated setpoints
operate and current outputs move. Only input
sensors or temperatures with setpoints or current
outputs associated with them will appear.
Note – This menu will not “time out” back to the front
screen.
+
– Increase Selected Value
–
– Decrease Selected Value
NEXT
– Select Next Value
EXIT
– Return to Channels Setup
