OPERATING CONTROLS AND PROCEDURES GRT880 OPERATOR MANUAL
3-44 Published 3-25-2020, Control # 643-04
Radius Limitation
If the Radius Limitation is selected from the menu of WRL
limitations, then the Radius Limitation Screen will be shown
(Figure 3-23).
Using the Left Arrow and Right Arrow function on the display
or the jog dial changes the object highlighted on the screen.
As the arrow keys are pressed, the highlight will move
between the objects, with the color orange typically meaning
that the object is selected and can be affected by
subsequent actions. In Figure 3-23, one can see that the
symbol for minimum radius is selected since it has
the orange color highlighting. Table 3-6: shows the objects
available on the Radius Limitation Screen. Note that the
boom angle cannot be typed in (as is possible with the
Height Limitation).

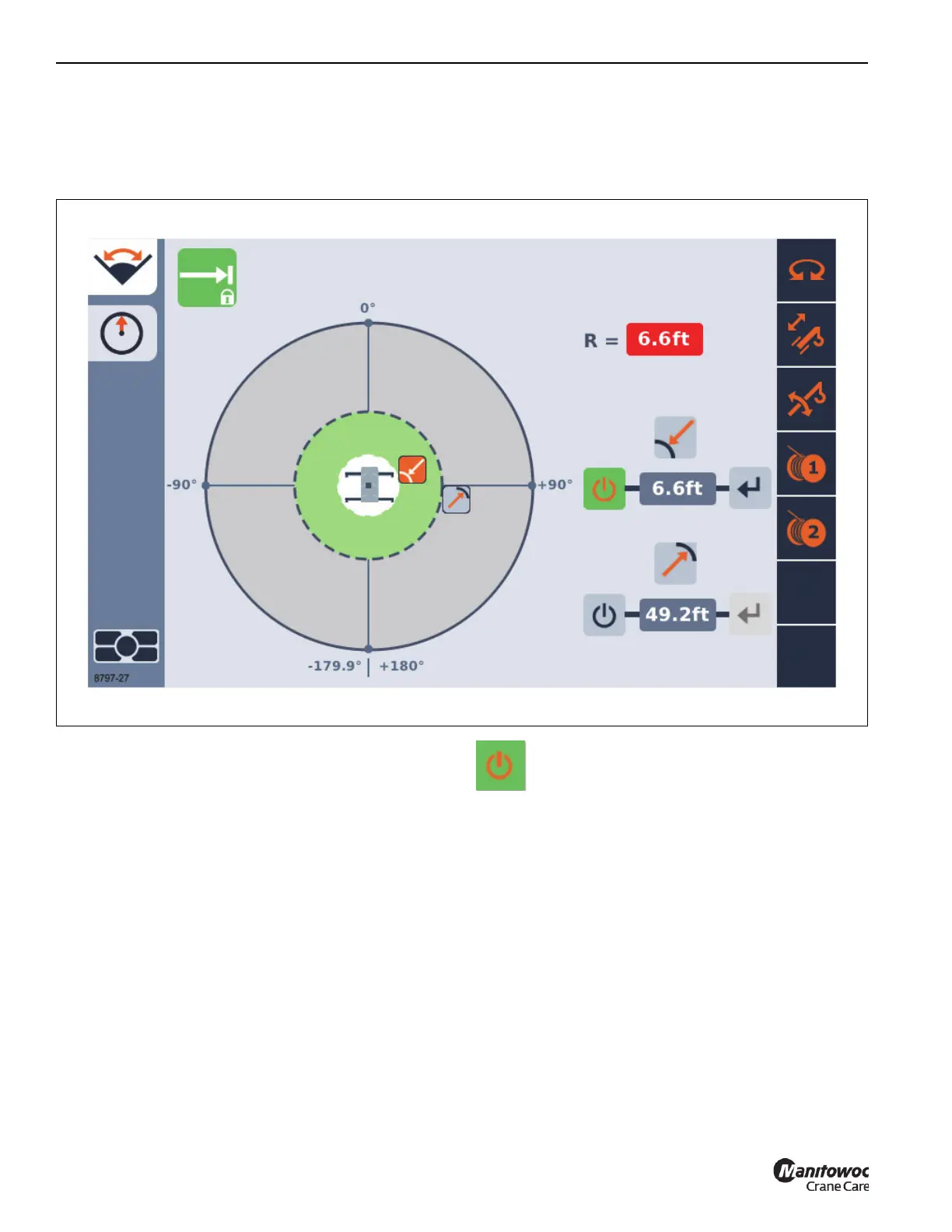

FIGURE 3-23
8797-27
Radius Limitation Screen
To Next Page
