OPERATING CONTROLS AND PROCEDURES GRT880 OPERATOR MANUAL
3-50 Published 3-25-2020, Control # 643-04
Wall Limitation
If the Wall Limitation is selected from the menu of WRL
limitations, then the Wall Limitation Screen will be shown
(Figure 3-25).
Using the Left Arrow and Right Arrow function on the display
or the jog dial changes the object highlighted on the screen.
As the arrow keys are pressed, the highlight will move
between the objects, with the color orange typically meaning
that the object is selected and can be affected by
subsequent actions. In Figure 3-25, one can see that the wall
number symbol is selected since it has the orange color
highlighting. Table 3-8: shows the objects available on the
Wall Limitation Screen.

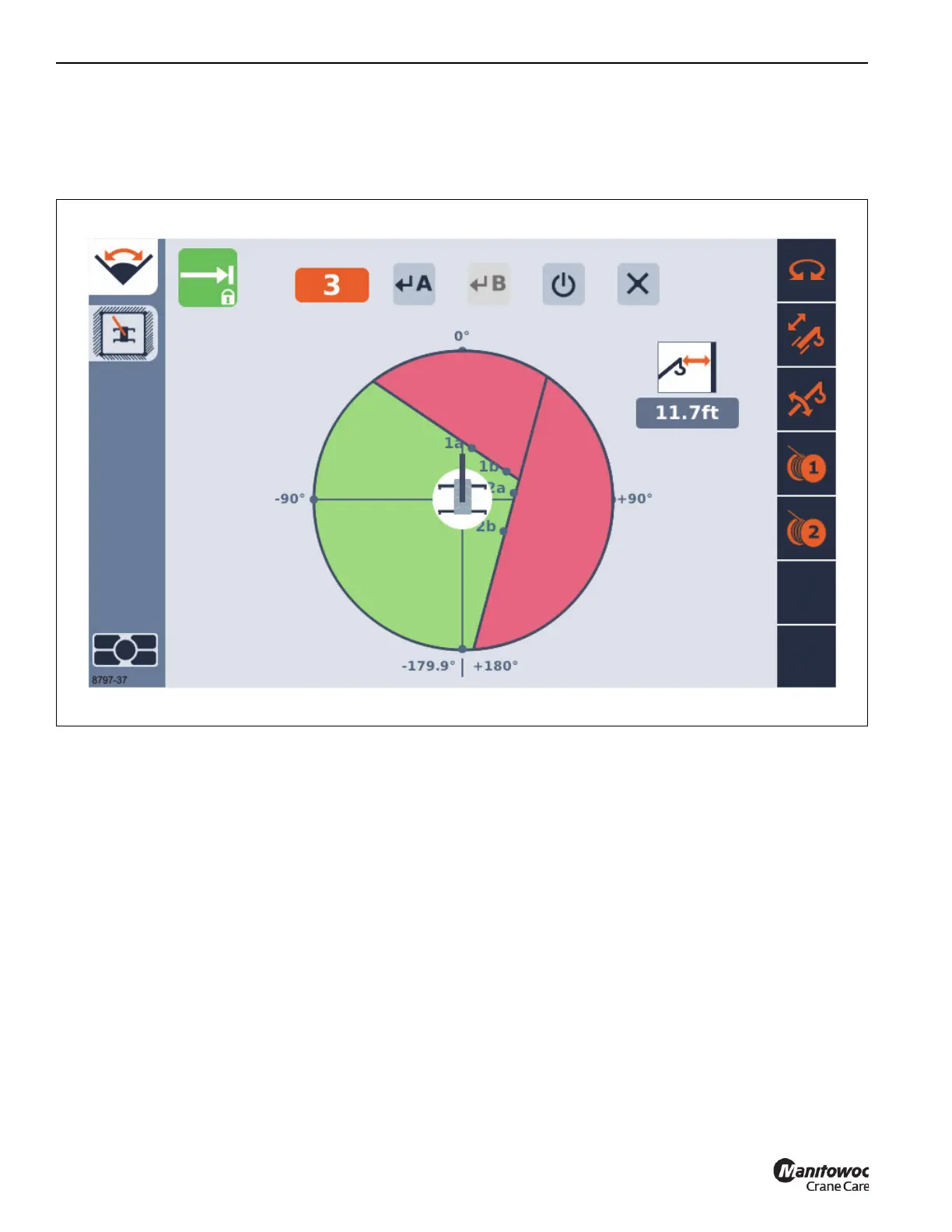

FIGURE 3-25
8797-33
Wall Limitation Screen with 2 Virtual Walls already active
