GRT880 OPERATOR MANUAL MAINTENANCE AND LUBRICATION
Outriggers
Item
Lube Point
Description
Figure
No.
Approved
Lubricant
Lube
Capacity
Lube Interval Application
60 Wear Pads Figure 5-9 L --- 50 hours or 1 week. Brush on.
NOTE: Remove outrigger box end cover. Reach inside outrigger box and brush lubricant on underside of top plate.
61 Outrigger Beams Figure 5-9 L --- 50 hours or 1 week. Brush on.
NOTE: Extend beam and brush lubricant on edges of the top and bottom outrigger beam plates where they contact the
sides of the outrigger box.

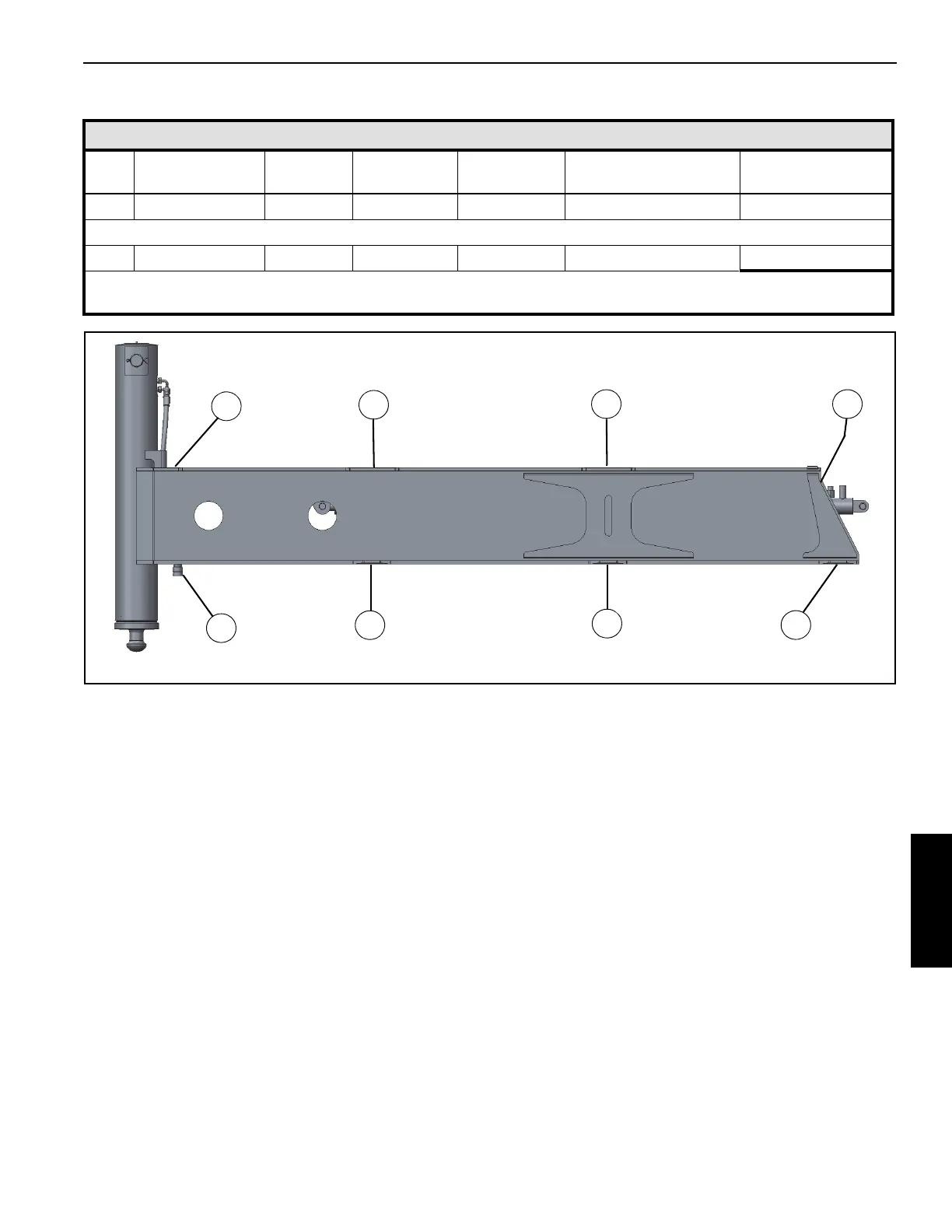

FIGURE 5-9
8600
61
61
61
61
61
61
60
60
