OPERATING CONTROLS AND PROCEDURES GRT880 OPERATOR MANUAL
3-18 Published 3-25-2020, Control # 643-04

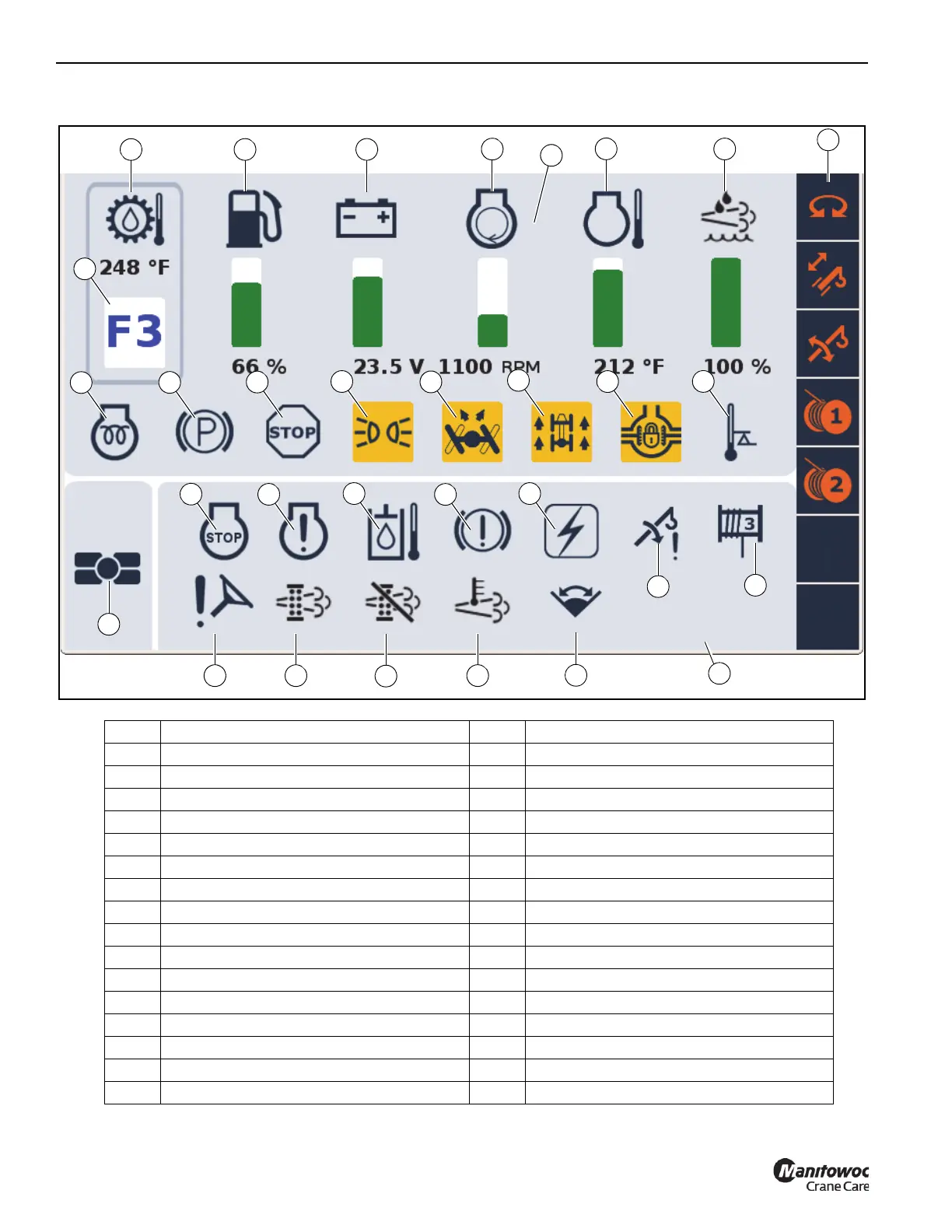

CCS Main Screen Symbols and Icons
Item Description Item Description
1 Transmission Temperature 17 Engine Warning Indicator
2 Fuel Level 18 High Hydraulic Oil Temperature
3 Battery Voltage 19 Low Brake Pressure
4 Engine Speed (Tachometer) 20 System Fault
5 Engine Coolant Temperature 21 Boom Angle Too Low (Optional)
6 Diesel Exhaust Fluid (Optional) 22 Third Wrap Indicator (Optional)
7 Direction/Gear Number 23 Low Steering Pressure (Optional)
8 Engine Warm-up Indicator (Wait-to-start) 24
Exhaust System Cleaning Needed (Optional)
9 Park Brake 25 Exhaust System Cleaning Inhibited (Optional)
10 Emergency Stop 26 High Exhaust Temperature (Optional)
11 Marker/Position/Side Light 27 Work Range Limiter Indicator (Optional)
12 Rear Wheels Not Centered 28 Active Screen Indicator
13 Four-Wheel Drive Indicator 29 Alerts Area
14 Differential Lock Indicator (Optional) 30 Status Bar
15 Cold Temperature Warning (Optional) 31 Status Area
16 Engine Stop
1
2 3
4
5
6
28
23 24
25
26
27
21
22
16
17
18
19
20
15
14
13
12
11
10
9
8
7
FIGURE 3-14
29
30
31
