HOISTS MLC80A-1/MLC90A-1/MLC100A-1/MLC100-1 SERVICE/MAINTENANCE MANUAL

5-20

Published 10-09-2020, Control # 259-06

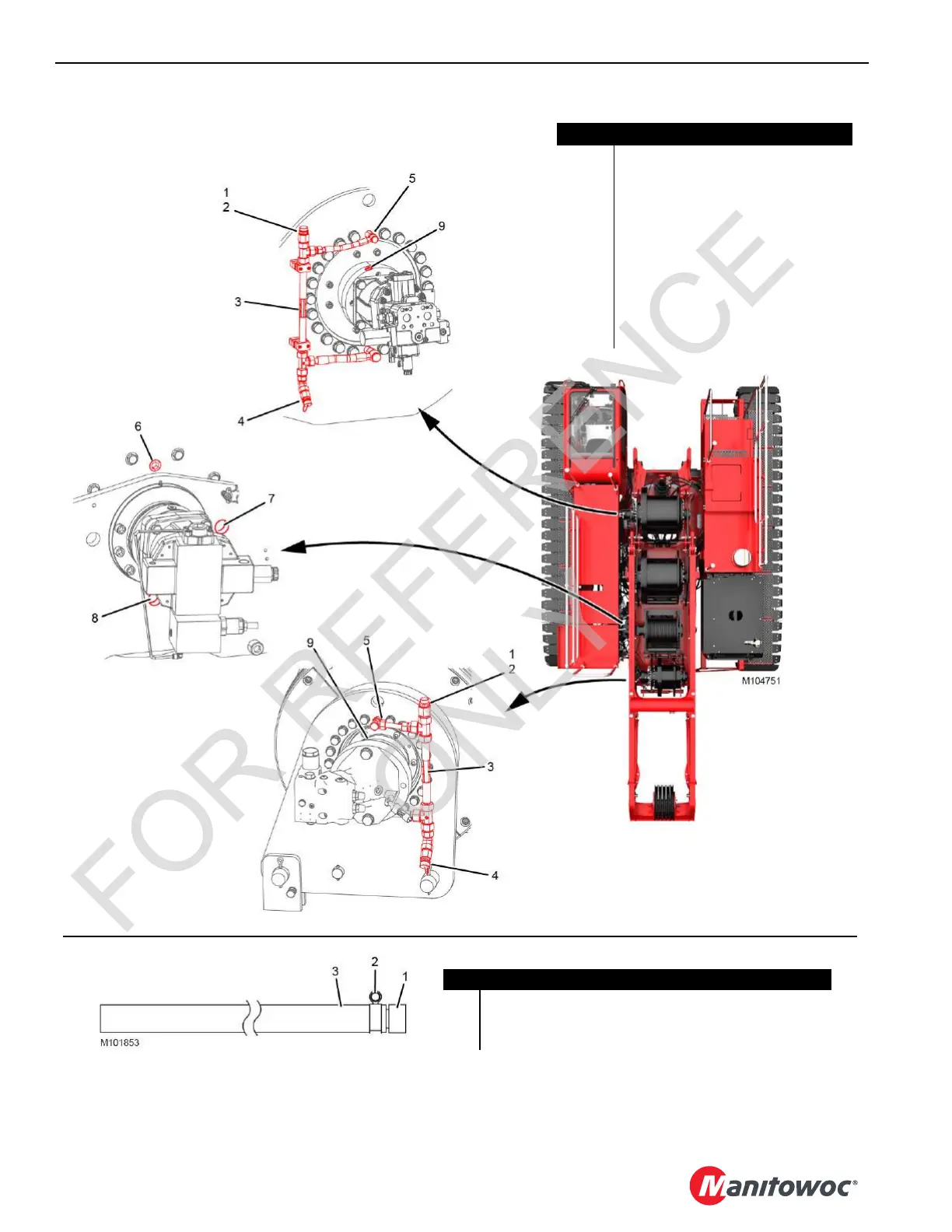

FIGURE 5-14

Drum Description

1 Breather

2 Fill Port

3 Sight Gauge

4 Quick-Drain Valve

5 Upper Hose

6 Fill Plug

7Level Plug

8 Drain Plug

9 Fill Plug – Motor Shaft Oil Cavity

Drums 1 and 2 (similar)

Drum 4

Drum 3

Item Description

1 Quick-Drain Drainer

2 Hose Clamp

3 Hose: 3/4 in (19 mm) Inside Diameter by 10 ft (3.0 m) Long

FIGURE 5-15

FOR REFERENCE

ONLY
