Configuration 4 — 800D (all booms other
than 8100D)
This mount requires front stabilizer for full capacity 360°
around the truck. Front stabilizer gives the machine a solid
base helping the operator control loads.
Requires 16,000 lb (7257 kg) GAWRF, 34,000 lb (15 422 kg)
GAWRR, 50,000 lb (22 679 kg) GVWR, standard sub-base
for 18 ft, 20 ft or 22 ft bed, SFO and RSOD rear stabilizers.
Truck must have 20.0 in
3
(327 cm
3
) section modulus and
2,200,000 lb-in (248 566 Nm) RBM or be capable of being
reinforced to this strength under the crane frame through to
the front suspension. Normally a tapered frame cannot be
reinforced to this requirement. Additional truck frame
requirements must be met from the crane frame through the
front suspension to the SFO attachment point (See “Truck
Frame and Mounting Bolt Requirements for Front Stabilizer”
in this section).
*Actual axle scale weights prior to installation of crane,
torsion box and stabilizers.
Configuration 5 — Rear Mount
This configuration allows the rear mount installation of
the Series 800D. This configuration is 360° stable and allows
the effective use of close working area to lift the heavier
capacity loads.
Requires a 16,000 lb (7257 kg) GAWRF, 40,000 lb (18 143
kg) GAWRR and 56,000 lb (25 401 kg) GVWR, overframe
outriggers, rear stabilizer, and heavy duty rear mount sub-
base. The maximum bed length is 16
ft (4,87 m).
Counterweight may have to be added to ensure unit stability
if the truck does not meet minimum weight requirements.
Truck frame must have 15.9 in
3
(260 cm
3
) section modulus
and 1,749,000 in-lb (197 610 Nm) RBM from rear of crane
through the front outriggers. Truck frame must have or be
capable of being lengthened to an AF of 112 in (2844 mm).
*Actual scale weights prior to installation of crane, heavy
duty sub-base and behind cab stabilizers.

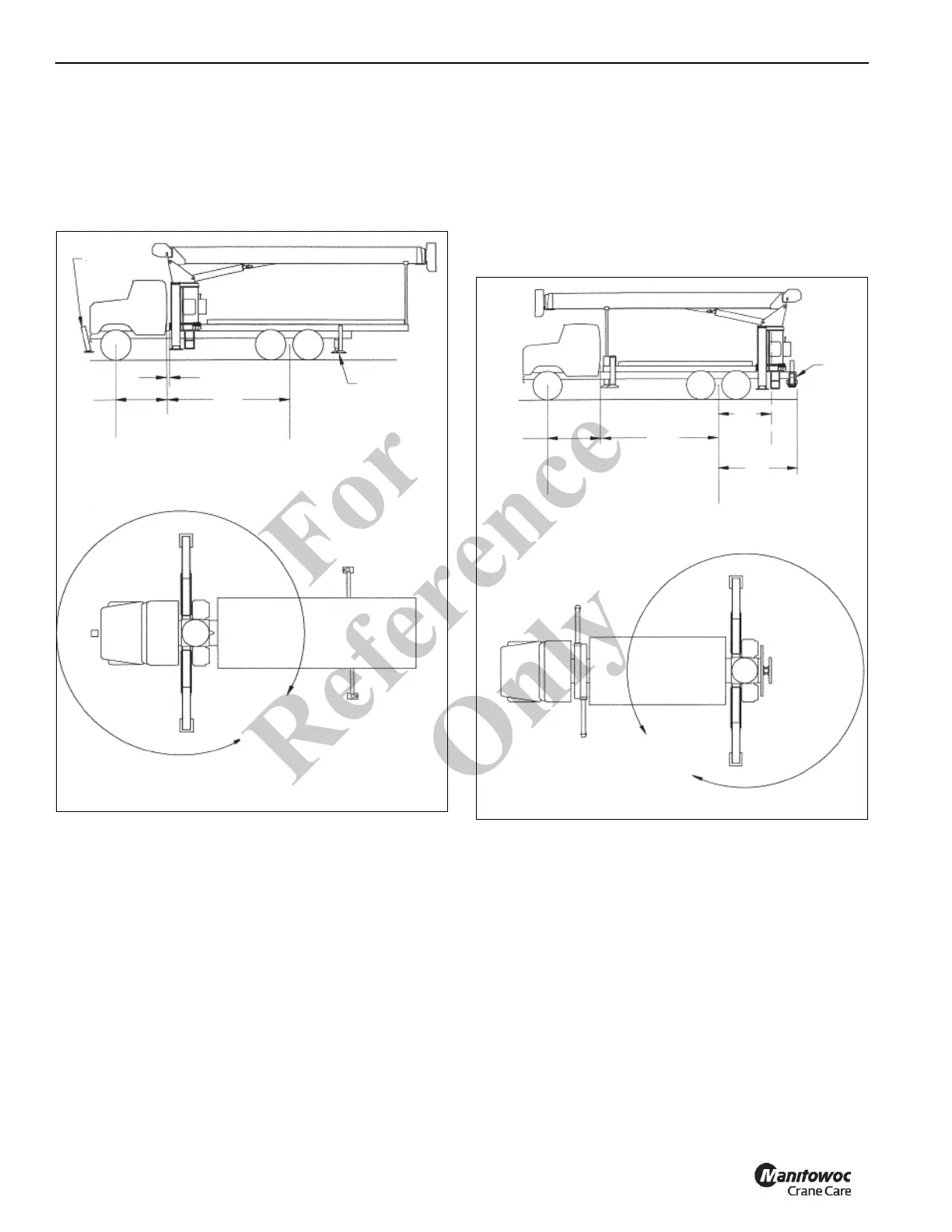

RSOD
3 in (76 mm) MIN
*9100 lb
(4128 kg)
165 in
(4191 mm)
MIN
69 in
(1753 mm)
MIN
*7500 lb
(3402 kg)
360°
FULL CAPACITY
WORK AREA
SFO
9430
AF
112 in
(2844 mm)
170 in
(4318 mm)
MIN
*8800 lb
(3991 kg)
*8500 lb
(3855 kg)
74 in
(1879 mm)
MIN
360°
FULL CAPACITY
WORK AREA
SRO
75 in
(1905 mm)
MIN
9431
Fo
r
Reference
Only
