HOIST 800D
11-4
Published 5-27-2018 Control # 039-06

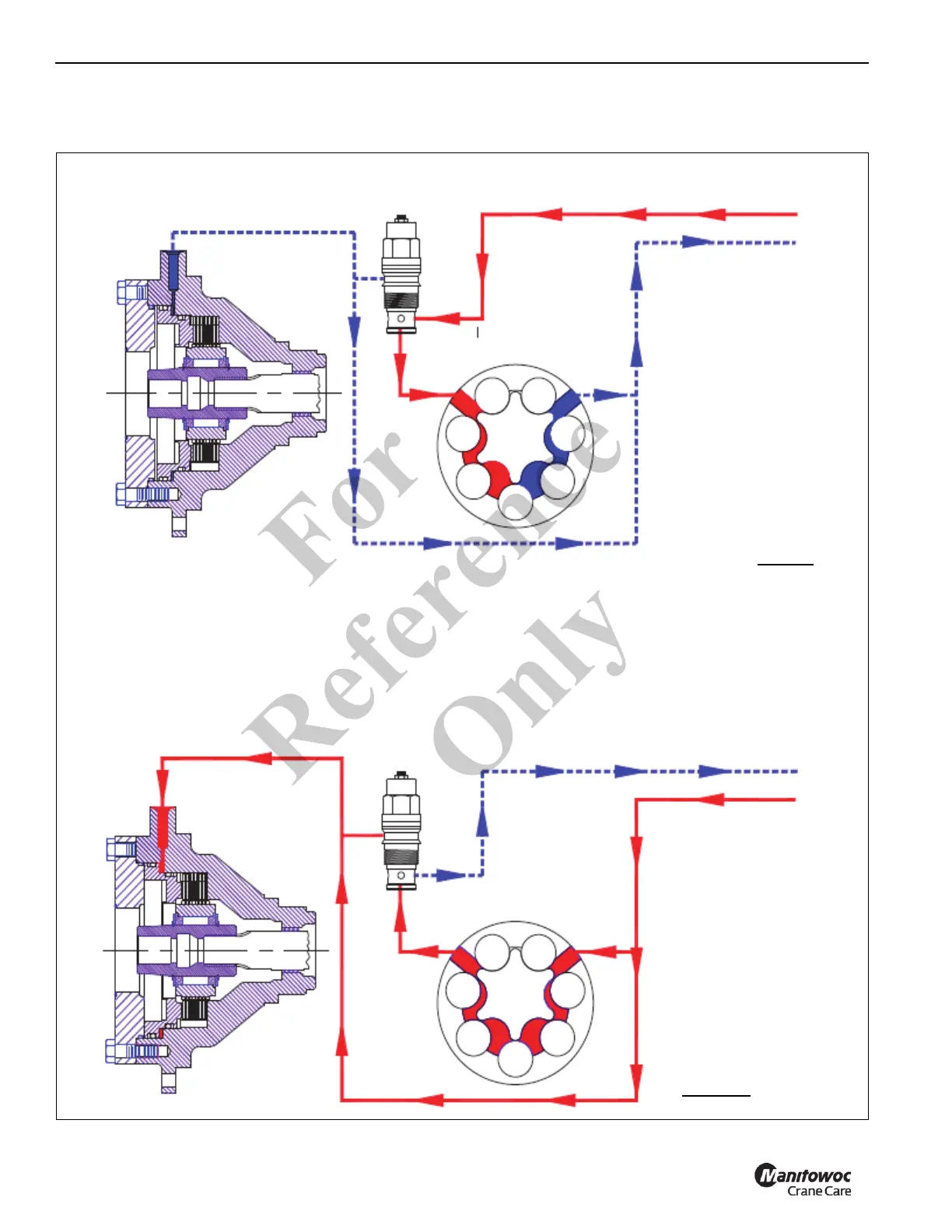

HYDRAULIC SCHEMATIC
CB VALVE
HYDRAULIC FLUID FROM
CONTROL VALVE
HYDRAULIC FLUID TO
CONTROL VALVE
HYDRAULIC MOTOR
HIGH PRESSURE
LOW PRESSURE
CB VALVE
HYDRAULIC FLUID TO
CONTROL VALVE
HYDRAULIC FLUID FROM
CONTROL VALVE
HYDRAULIC MOTOR
RAISE
LOWER
9460
Fo
r
Reference
Only
