Megger AVTMTTR100 - Figure 5-3. Setup for Testing Single-Phase, Type a (Straight Design) Step Voltage Regulator; Figure 5-4. Setup for Testing Single-Phase, Type B (Inverted Design) Step Voltage Regulator

100 pages

To Next Page

To Previous Page

AVTMTTR100-ENG Rev 6 Nov 2015

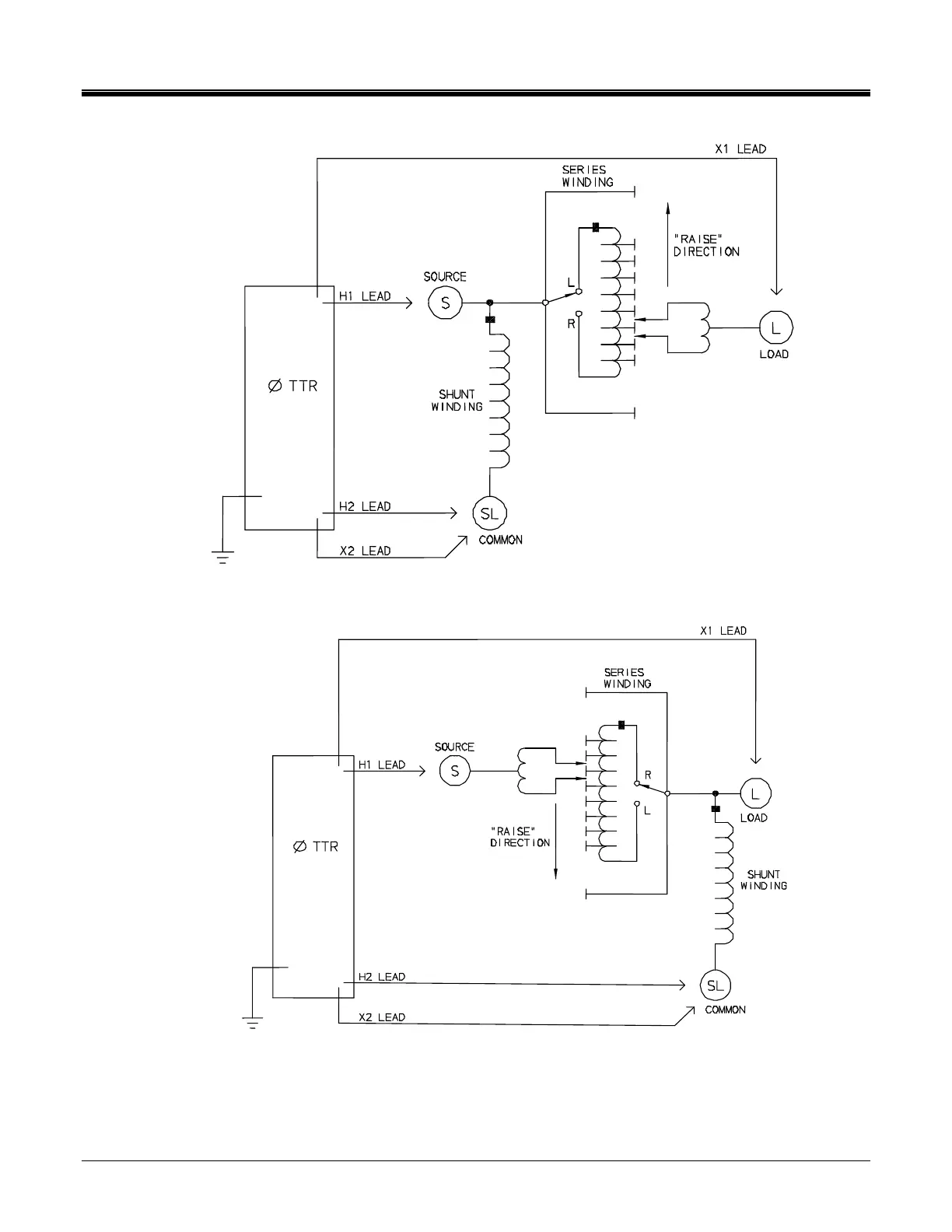

Figure 5-3. Setup for Testing Single-Phase, Type A (Straight Design) Step Voltage Regulator

Figure 5-4. Setup for Testing Single-Phase, Type B (Inverted Design) Step Voltage Regulator

GROUND

LEAD

GROUND

LEAD
