Practical hints
Fuses
Main fuse box in passenger
compartment

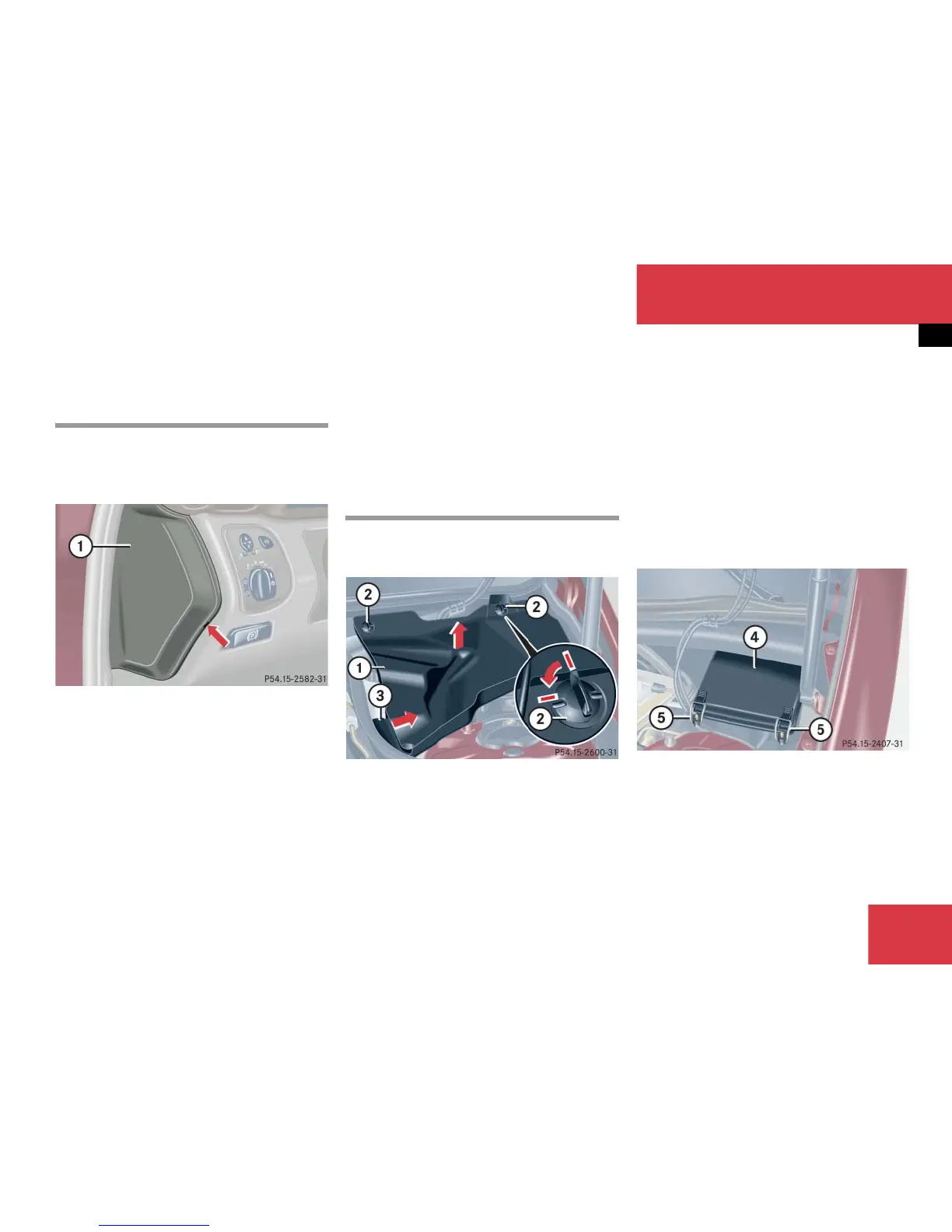

The main fuse box is located in the passen-
ger compartment on the driver’s side of
the cockpit.
1 Main fuse box cover
Opening fuse box
왘 Open the driver’s door.
왘 Pull fuse box cover 1 open with a
screw driver or similar tool (see arrow).
왘 Remove fuse box cover 1 rearward.
Closing fuse box
왘 Attach fuse box cover 1 in the front.
왘 Fold fuse box cover 1 in until it
engages.
Fuse box in engine compartment
The fuse box is located in the engine
compartment on the driver’s side.
1 Cover
2 Screws
3 Retainer
Removing cover
왘 Twist screws 2
90° counterclockwise.
왘 Lift the rear of cover 1.
왘 Slide out retainer 3 and remove
cover 1 by pulling towards front.
Opening fuse box
4 Fuse box cover
5 Clamps
왘 With a dry cloth, remove any moisture
from the fuse box.
왘 Release clamps 5.
왘 Remove fuse box cover 4.
