Flat tire
549

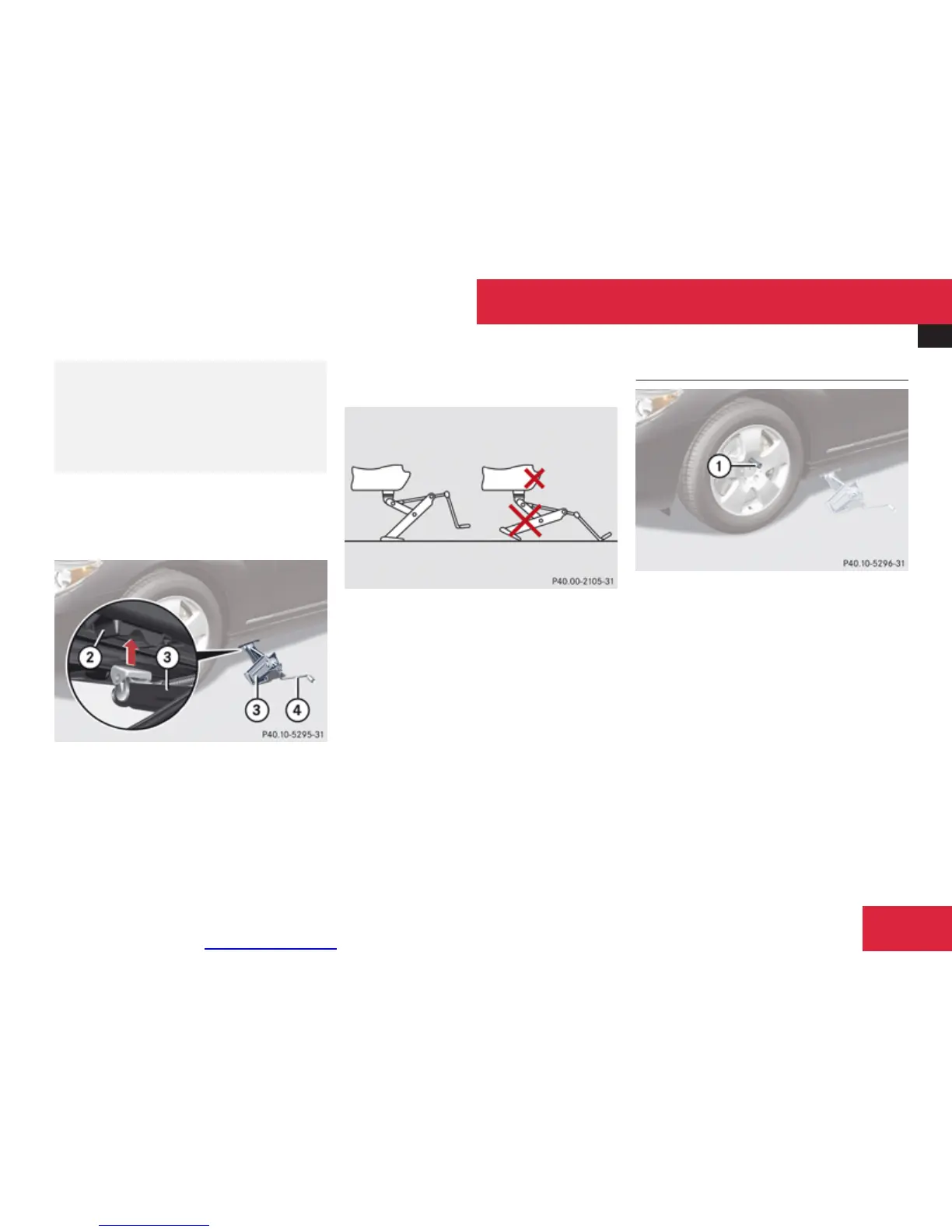

Make sure the jack arm is fully seated in the
jack take-up bracket.
If you do not position the jack correctly in
the jack take-up bracket, the vehicle can
fall off the jack and seriously or fatally injure
you or others.
!
Do not position the jack on the body of
the vehicle, as this may cause damage to
the vehicle.
2
Take-up bracket
3
Jack
4
Crank
X
Place jack 3 on firm ground.
X
Position jack 3 under take-up bracket
2 so that it is always vertical as seen from
the side, even if the vehicle is parked on an
incline.
X
Turn crank 4 clockwise until jack 3 is
fully seated in take-up bracket 2 and the
jack base evenly meets the ground.
X
Jack up the vehicle until the wheel is a
maximum of 1.2 in (3 cm) from the ground.
Removing the wheel
1
Alignment bolt
X
Unscrew uppermost wheel bolt and remove
it.
X
Replace this wheel bolt with alignment bolt
1 supplied with the vehicle tool kit.
X
Remove the remaining bolts.
!
Do not place wheel bolts in sand or dirt.
This could result in damage to the wheel
bolts and wheel hub threads.
X
Remove the wheel.
Practical hints
Z
