Vehicles with a 48 V on-board electrical system
1
Electric drive support
2
Recuperation behaviour of the electric motor
%
Due to various system limits, the values dis-
pla
yed may temporarily dier slightly from the
actual value.

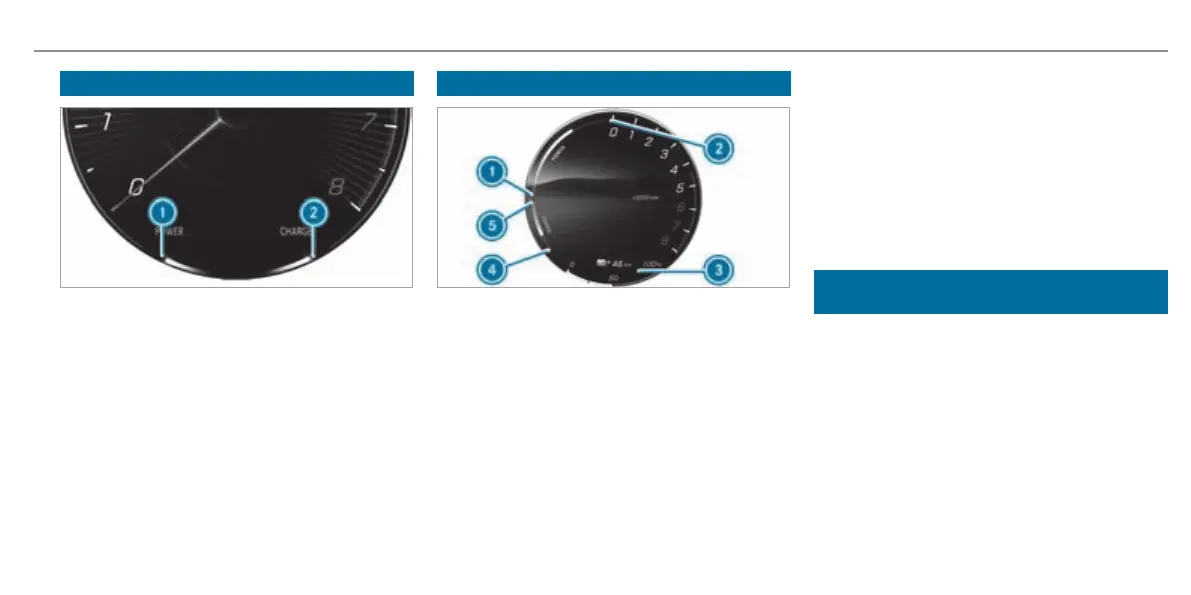

Function of the power meter
1
Start of the POWER display range
2
End of the POWER display range
3
Current state of charge of the high-voltage
batt
ery
4
Maximum recuperated energy
5
Start of the display range of recuperated
energy
The power meter has the following functions:
R
In electr
ic mode, the area 1 – 2 shows
what percentage of the electric drive is cur-
rently being used. The combustion engine is
switched on at 100%. In boost mode, the elec-
trical power assistance of the drive is dis-
pla
yed.
R
The area 4 – 5 shows the recuperation and
charging behaviour using the combustion
engine.
%
Due to various system limits, the displayed
v
alue 4 may temporarily dier slightly from
the actual value.
Overview of status displays on the driver's dis-
pla
y
The status displays for the driving and driving
safety systems can be found in display sections
1 to 4.
Driver display
349
