Mercury TDI 3.0L User Manual

Engine Component List

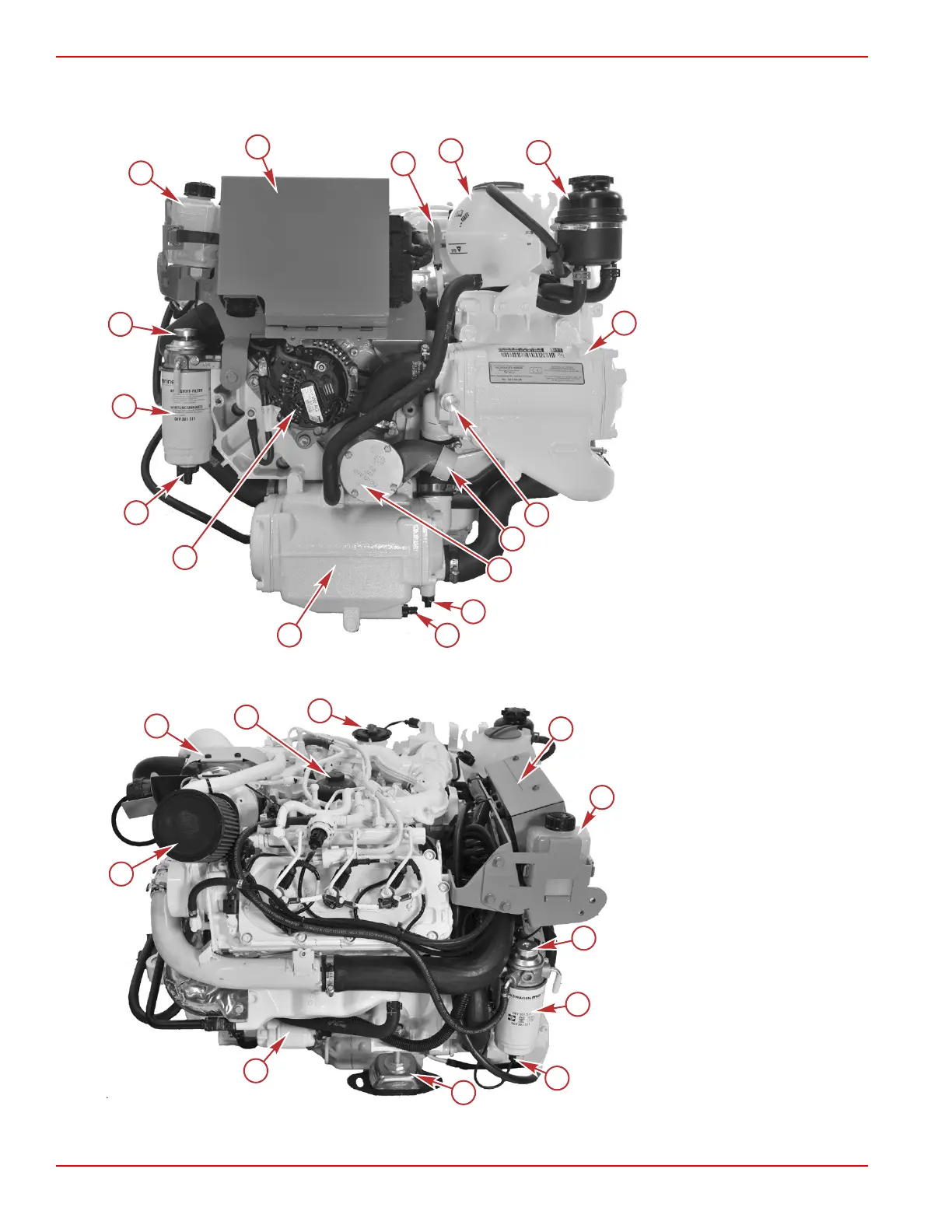

3.0 Liter TDI Front View Components
a - Gear lubrication monitor
b - Engine control module cover
c - Engine oil dipstick
d - Engine coolant expansion
tank
e - Power steering oil reservoir
f - Charge air cooler
(intercooler)
g - Sacrificial anode
h - Seawater inlet connection
i - Seawater pump
j - Seawater‑cooling system
drain screw
k - Closed‑cooling system drain
screw
l - Heat exchanger
m - Alternator
n - Water‑in‑fuel sensor
o - Fuel filter with water sensor
p - Manual fuel primer
3.0 Liter TDI Starboard View Components
a - Engine control module cover
b - Gear lubrication monitor
c - Manual fuel primer
d - Fuel filter with water sensor
e - Water‑in‑fuel sensor
f - Motor mount
g - Starter
h - Air filter
i - Turbocharger
j - Oil filter
k - Oil fill cap
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
52237
a
b
c
d
e
f
h
g
i
j
k
52238
Section 1 - Getting to Know Your Power Package
Page 2 90-8M0145546 eng MAY 2018

Mercury TDI 3.0L Specifications

General

Brand	Mercury
Model	TDI 3.0L
Category	Engine
Language	English
