Power Trim and Steering Fluid Power trim pump 92-858074K01
Filling
1. If the fluid level is below the "MIN" line, the specified fluid must be added.
2. Remove the fill cap from the reservoir.
NOTE: Fill cap is vented.

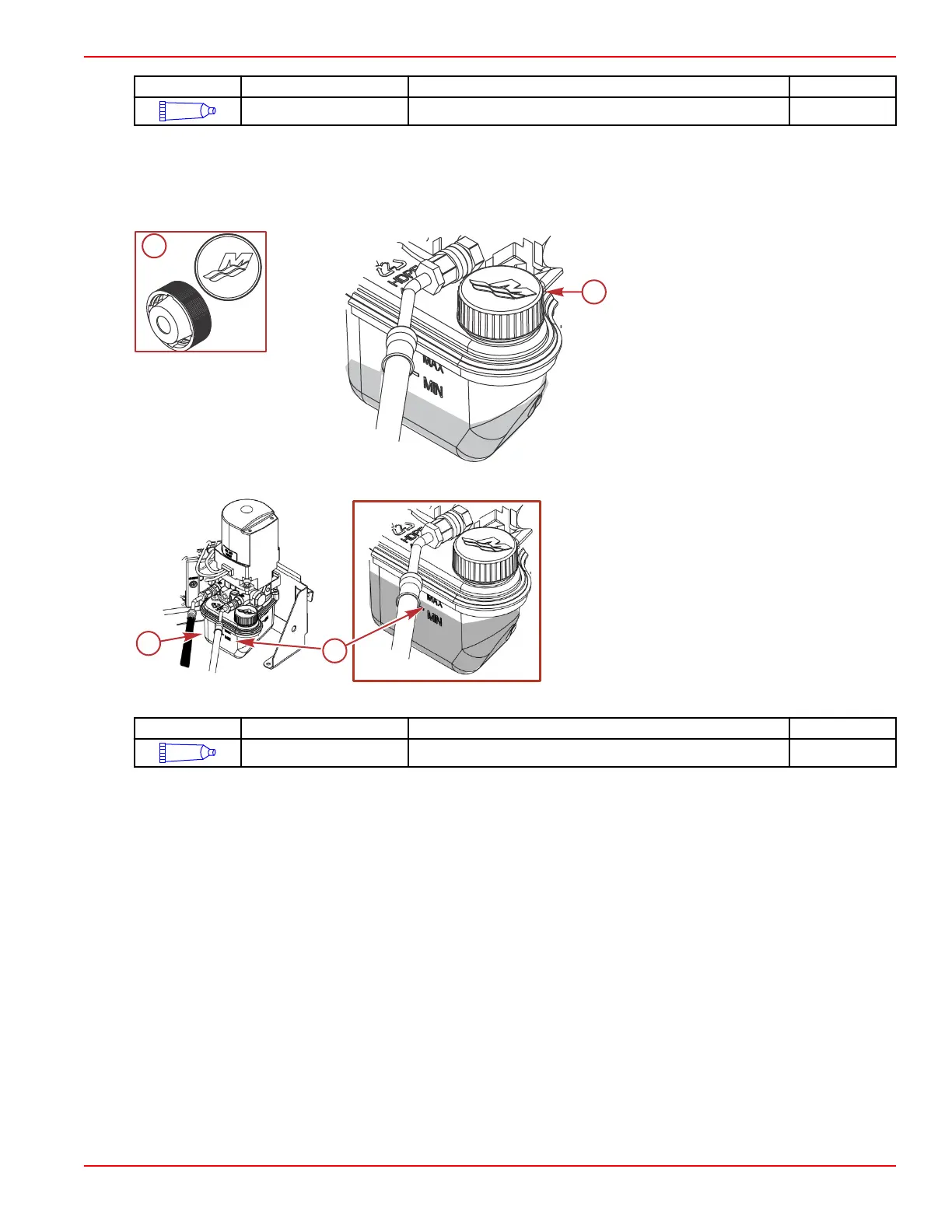

Power trim pump reservoir shows the fluid
level is below "MIN" line
a - Fill cap assembly
b - Fill cap installed
3. Add the specified fluid to bring the fluid level to within the "MIN" and "MAX" lines on the reservoir.
a - Reservoir
b - "MIN" and "MAX" lines
Tube Ref No. Description Where Used Part No.
114
Power Trim and Steering Fluid Power trim pump 92-858074K01
4. Install the fill cap.
Changing
Power trim fluid does not require changing unless it becomes contaminated with water or debris.
Power‑Assisted Steering Fluid
The power steering fluid level should be checked at regular intervals.
IMPORTANT: Do not leave the steering wheel at full lock for longer than 15 seconds with the engine running. The power
steering fluid will heat up considerably when the steering wheel is at full lock and could cause damage to the power steering
system.
When the steering wheel is at full lock, power steering pump noise will increase as the pump is under full load and the engine
idle RPM will be reduced momentarily.
Checking
1. Center the sterndrive and stop the engine.
7701
b
a
a
b
b
7876
Section 4 - Maintenance
90-8M0145546 eng MAY 2018 Page 51
