Section 1 - General Information
90-8M0074777 eng MAY 2013 Page 7
b. Fast flick = faster advancement.
District Description
a Area for contextual data horizontal and vertical transition
b Area for contextual data horizontal transition
Color Strategy

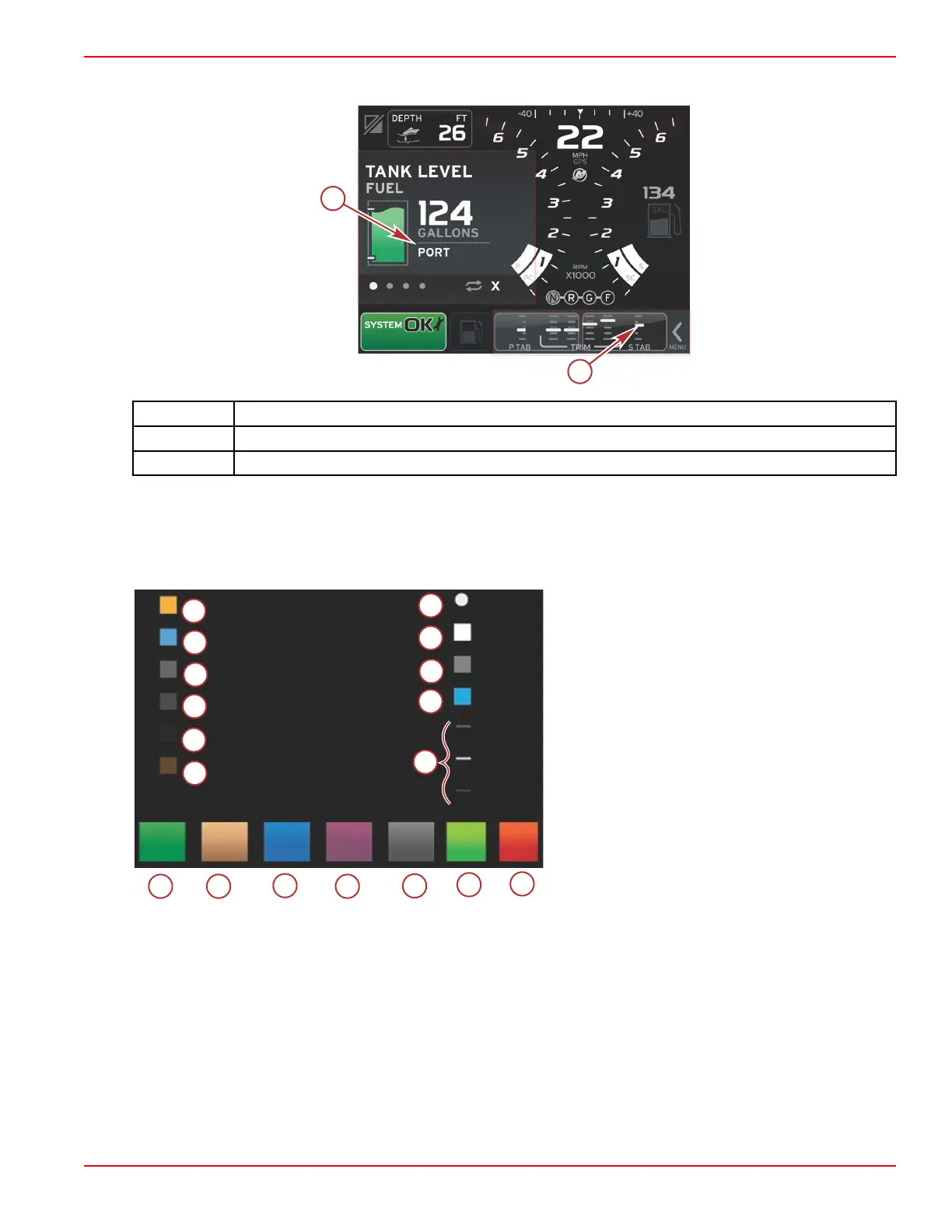

VesselView uses a color strategy to help quickly identify the various types of fluid that are on the vessel, if the system is
operating normally, if attention to specific operating systems is required, if an element is active, or if the element is computer
controlled.
1 - Computer‑controlled functions or cautions and
warnings
2 - Notice
3 - Contextual panel header text (not activated)
4 - Contextual panel sub‑header text (not
activated)
5 - Autopilot (not activated)
6 - Computer controlled function (not activated)
7 - Navigation footer dot highlighted
8 - Navigation footer element highlighted
9 - Navigation footer element (not activated)
10 - Navigation footer (active)
11 - Tank marker
12 - Fuel
13 - Oil
14 - Water
15 - Waste
16 - Gray water
17 - Good (normal)
18 - Bad (warnings)
Maintenance—VesselView 7
IMPORTANT: It is recommended that the supplied sun cover be installed for protection when the unit is not in service.
Display Cleaning
This product was packaged with a cloth that should be used for cleaning the screen. Salt, when crystalized, can scratch the
display coating when using a dry or damp cloth. Ensure the cloth has a sufficient amount of fresh water to dissolve and remove
salt deposits. Do not apply aggressive pressure on the screen while cleaning.
