Mercury VesselView 7 User Manual

Section 6 - Installation
90-8M0074777 eng MAY 2013 Page 53
11. Install the upper and lower bezel trim.

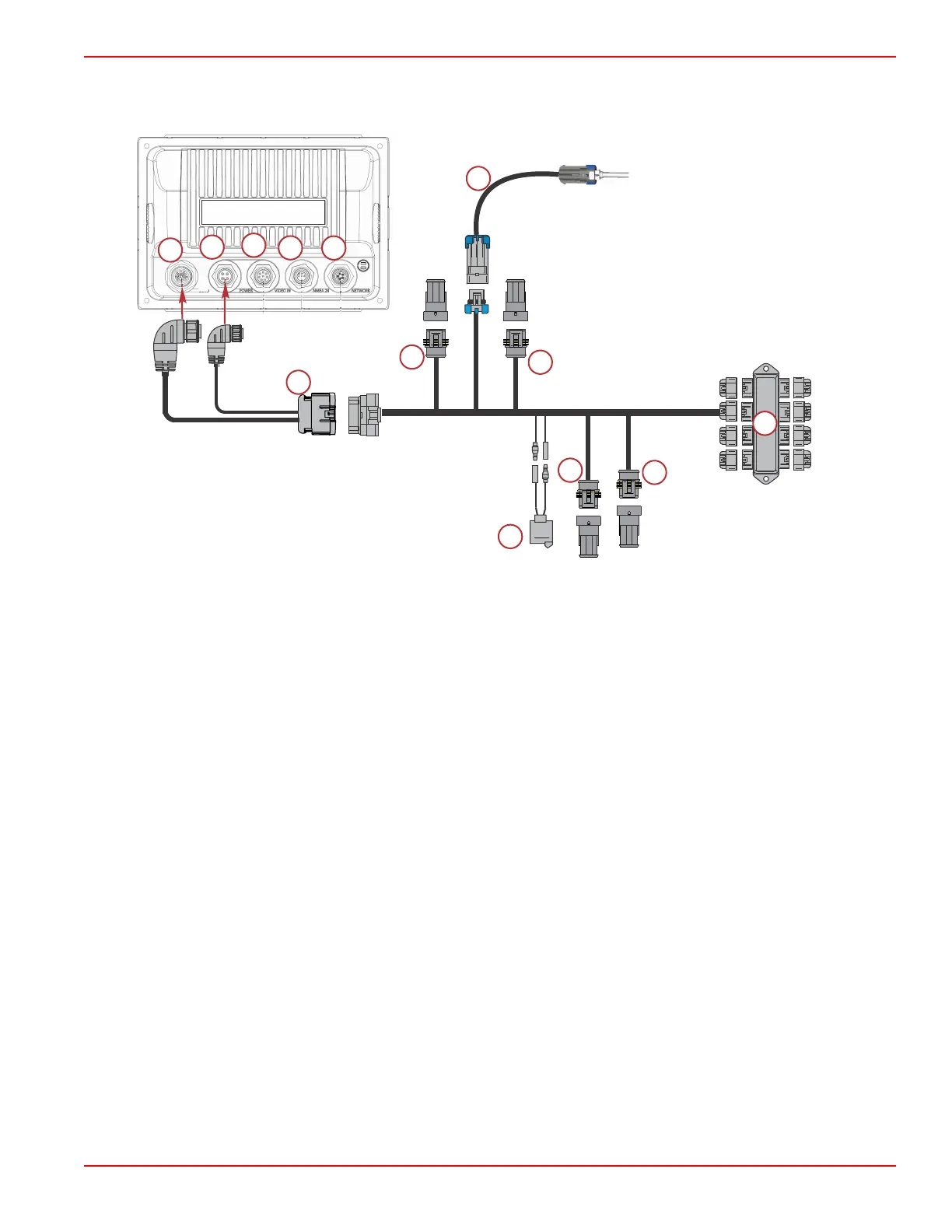

VesselView 7 Wire Harness
a - SmartCraft network connection
b - Power connection
c - Video in
d - SIMNET/ NMEA 2000
e - Ethernet network
f - VesselView 7 adapter harness
g - System Link port
h - Air temperature sensor
i - System Link starboard
j - Horn
k - System Link starboard center
l - System Link port center
m - Junction box
a
b
c
d
e
f
g
h
i
j
k
52774
l
m
