Mercury VesselView 7 User Manual

Section 3 - Contextual Data
Page 24 90-8M0074777 eng MAY 2013
NOTE: An arrow icon will appear to the left and right of the scroller bar. When only one arrow icon is visible, you must
move the direction indicated by the arrow. When both arrows are visible, either direction can be selected.

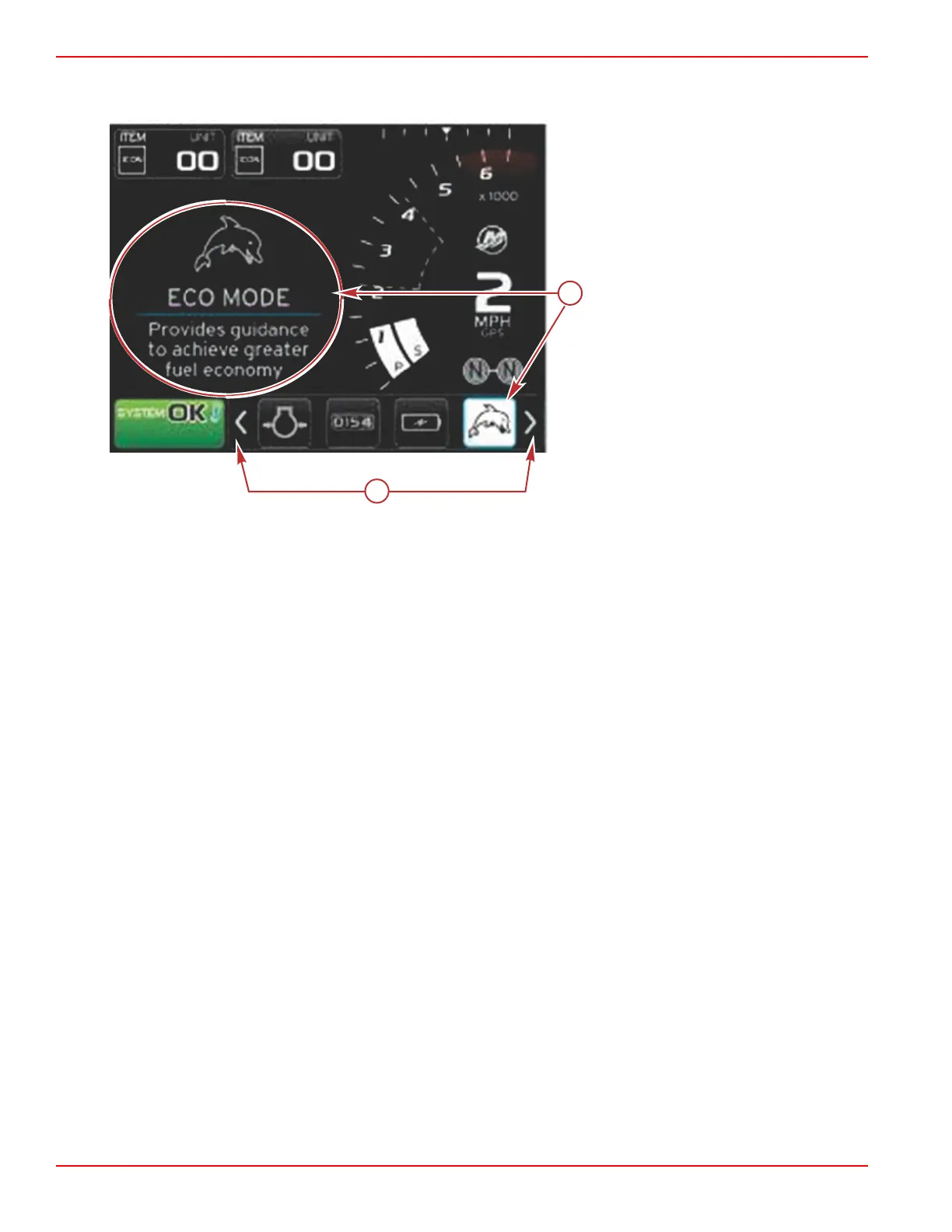

a - Selected Icon
b - Scroller bar arrows
Contextual Data Area
During the scroller bar navigation process, when the icon is highlighted and enter is not pressed, the contextual data area will
change to display the icon, the icon name, and a description of what the feature does. The contextual data area will show this
information for a short time only.
Final Contextual Data Selection
When the icon has been chosen, press enter. The icon will show next to the system tray and the contextual data area will
display the full data pertaining to that selection.
b
a
52051
