Section 5 - Screen Navigation
Page 36 90-8M0074777 eng MAY 2013
Economy Mode
ECO Mode
ECO Mode displays information to guide the operator to set the optimum trim position and engine speed to achieve the best
fuel economy. The engine control module (ECM) or propulsion control module (PCM) calculates the best fuel economy based
on information from various sensors on the power package and vessel.
1. Push the pages button to open the scroller bar.
2. Use the rotary knob to the find the ECO Mode icon and press enter. The contextual area will display ECO icon element
with a short description on how to achieve the best fuel economy.
ECO Minimum and Maximum Values

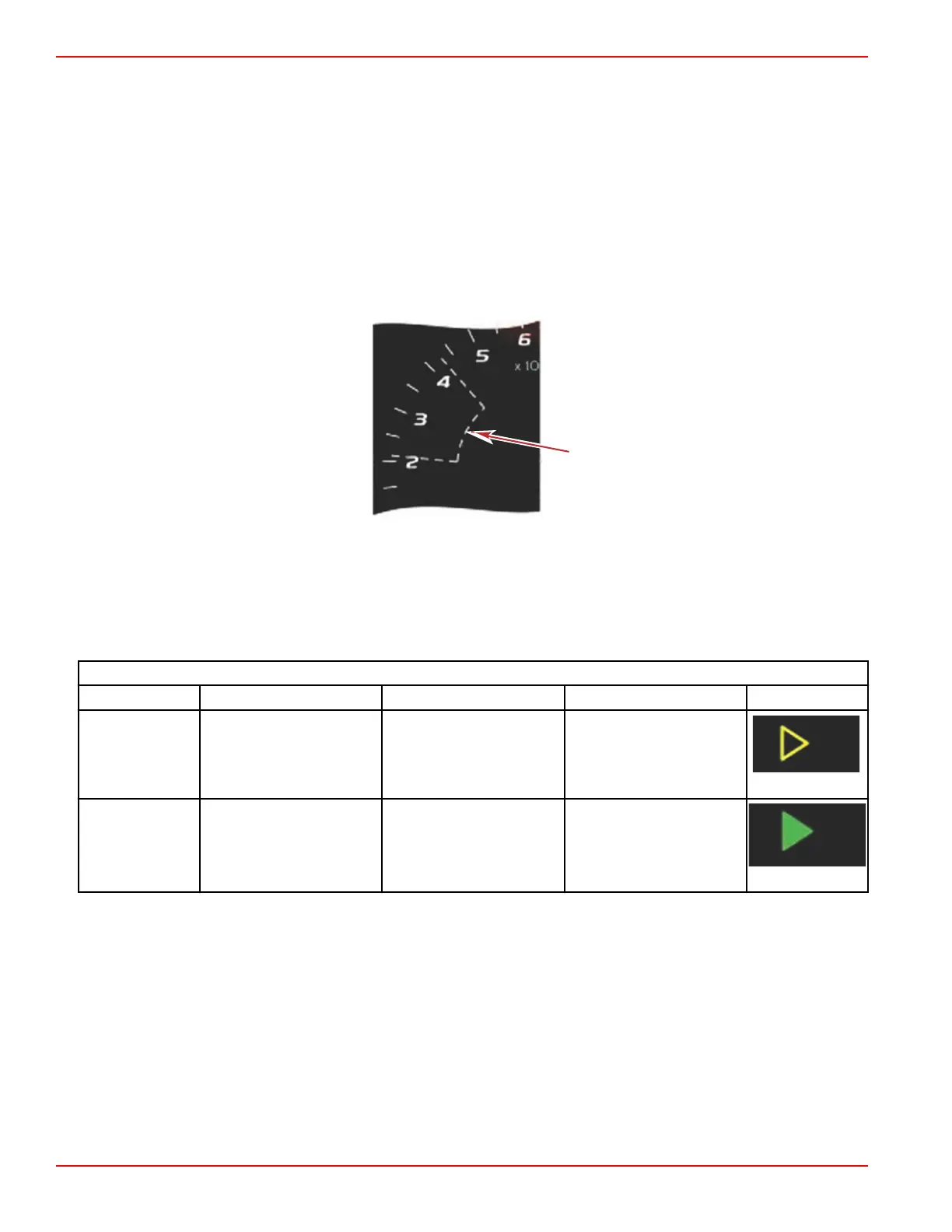

When ECO Mode is active, the minimum and maximum value target lines will appear in the RPM sweep. These lines display
the active optimized range that is to be calculated. The target lines can be adjusted in the Settings menu.
ECO RPM and Trim Targets
When the RPM values reach the minimum value range, RPM and trim targets will appear. A colored line will span the RPM
sweep with colored targets to inform the user where the target values are and will change color when they have achieved
optimization.
Target Colors
Triangle Color Rules
State Color Fill value Action Image
Target not
achieved
Yellow Outline Blinking
Target achieved Green Solid Continuous
