Section 2 - System Startup
Page 16 90-8M0074777 eng MAY 2013
Display Screens
Startup
On startup after the splash screen sequence, the main display will load and all data and graphics will be active. Two conditions
are available: engines off or engine running. The following chart and information explain the sequence for how the persistent
and contextual data areas change.
Engine state Contextual data area
Engine off, ignition on Good stewardship message
Engine cranking System scan in progress, animated propeller is shown
Engine running at idle Propeller color turns green
Engine running in gear Level 1 smart contextual data
Engine Off, Ignition On
The Mercury good stewardship message screen is displayed in the contextual data area when the ignition is on and the
engines are not running. All functions will be available and there will be no engine data displayed.
• The messages are randomly selected. Examples include: Do you have floatation devices, Mercury reminds you to please
boat safely.
• The good stewardship list items are subject to change depending on engine type or personality configuration.
Engine Running at Idle
When the engine is running, the contextual area of the display will show green propeller when the system scan report is
finished.
• The contextual data area of the screen will display an animated propeller and progress bar to indicate a scan is in
progress.

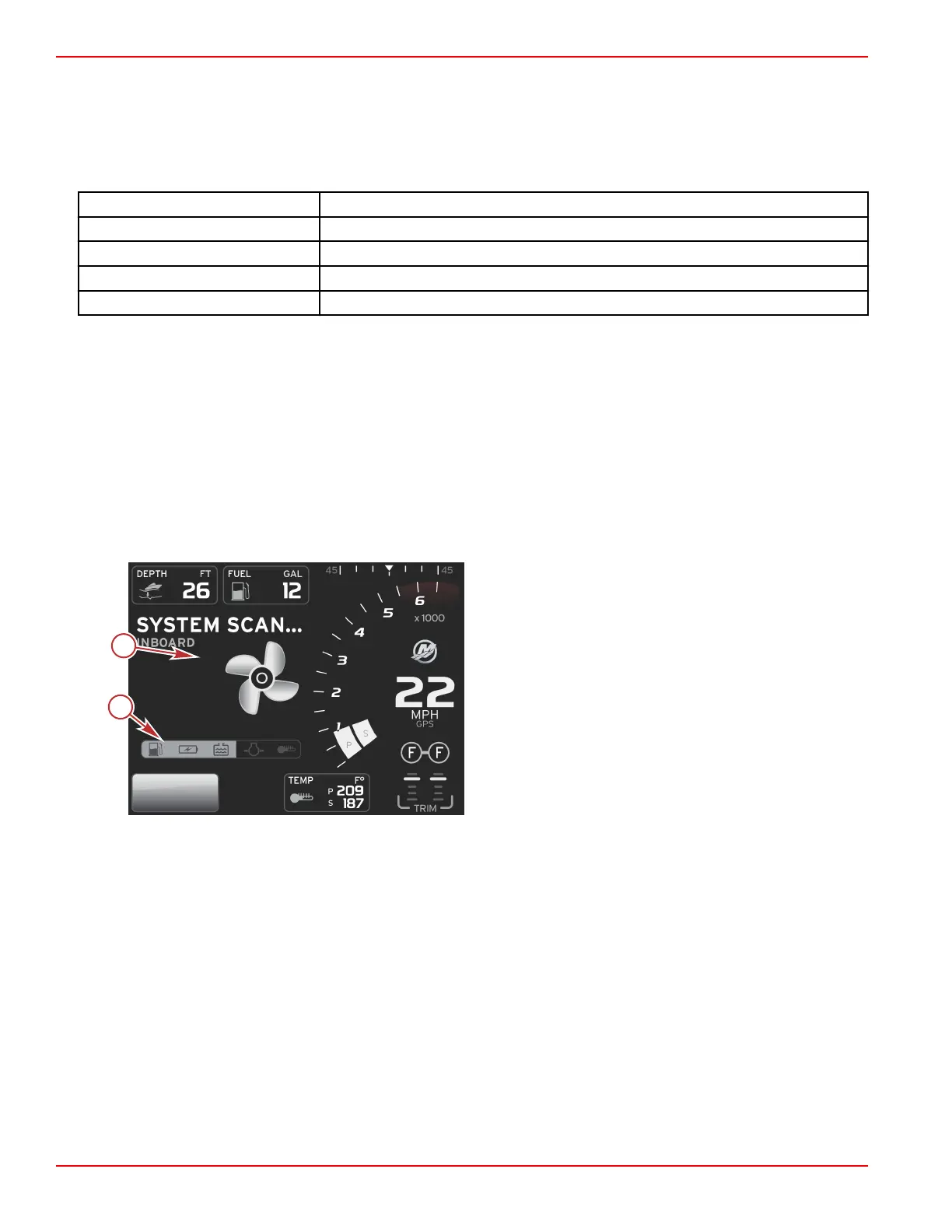

System Scan
a - Animated propeller
b - Progress bar
• If at anytime the engine is shifted into gear, the system scan will stop and the propeller will turn green and Level 1 smart
contextual data will appear.
