Mercury VesselView 7 User Manual

Section 6 - Installation
Page 54 90-8M0074777 eng MAY 2013

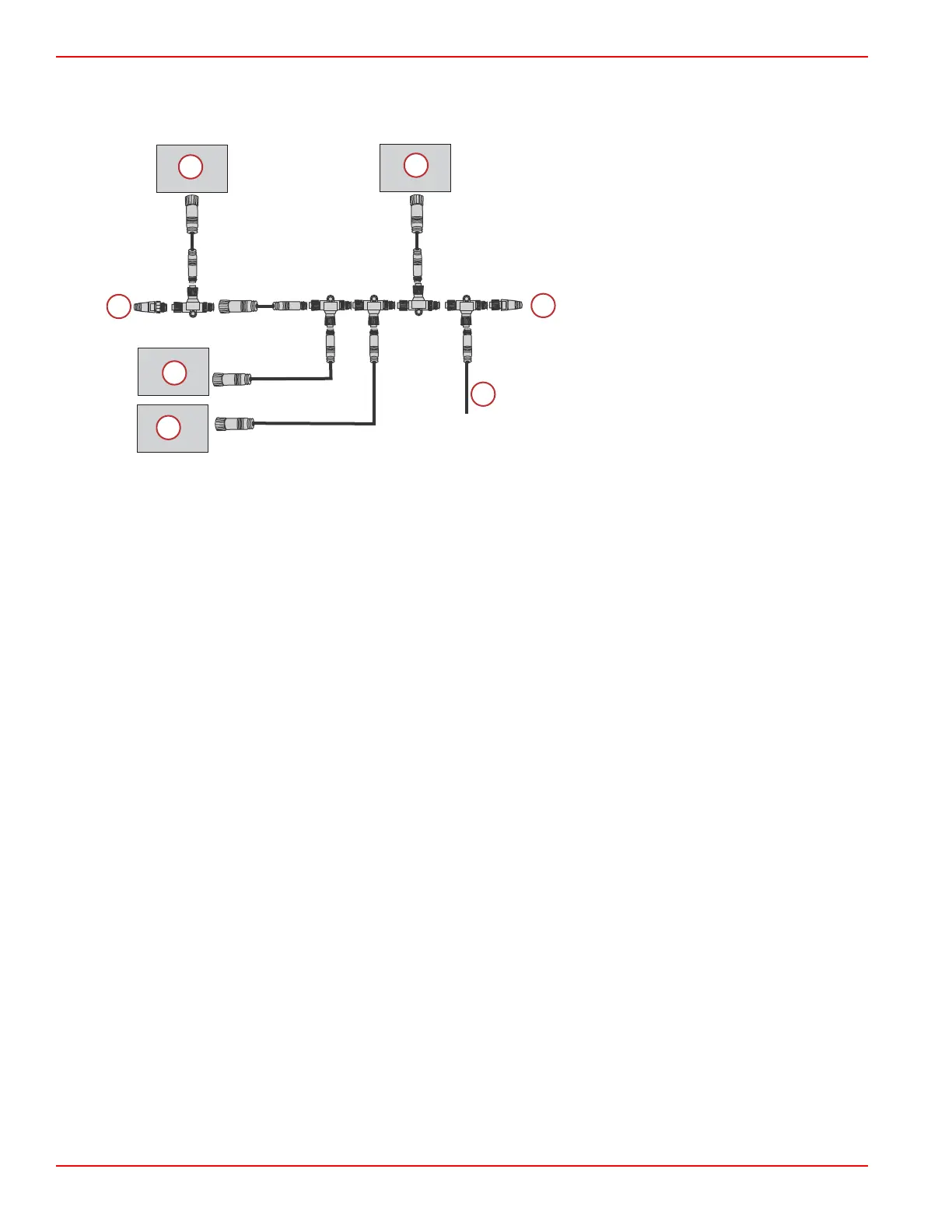

VesselView NMEA 2K Connections
NMEA 2K must be powered separately from the SmartCraft network. The NMEA 2K power supply must be properly fused and
have termination resistors at each end of the backbone.
a - 120k ohm termination resistor
b - GPS
c - Chart plotter
d - NMEA 2K fused power source
e - VesselView
120
a
a
b
c
d
e
e
52795
120
