Section 5 - Screen Navigation
90-8M0074777 eng MAY 2013 Page 43

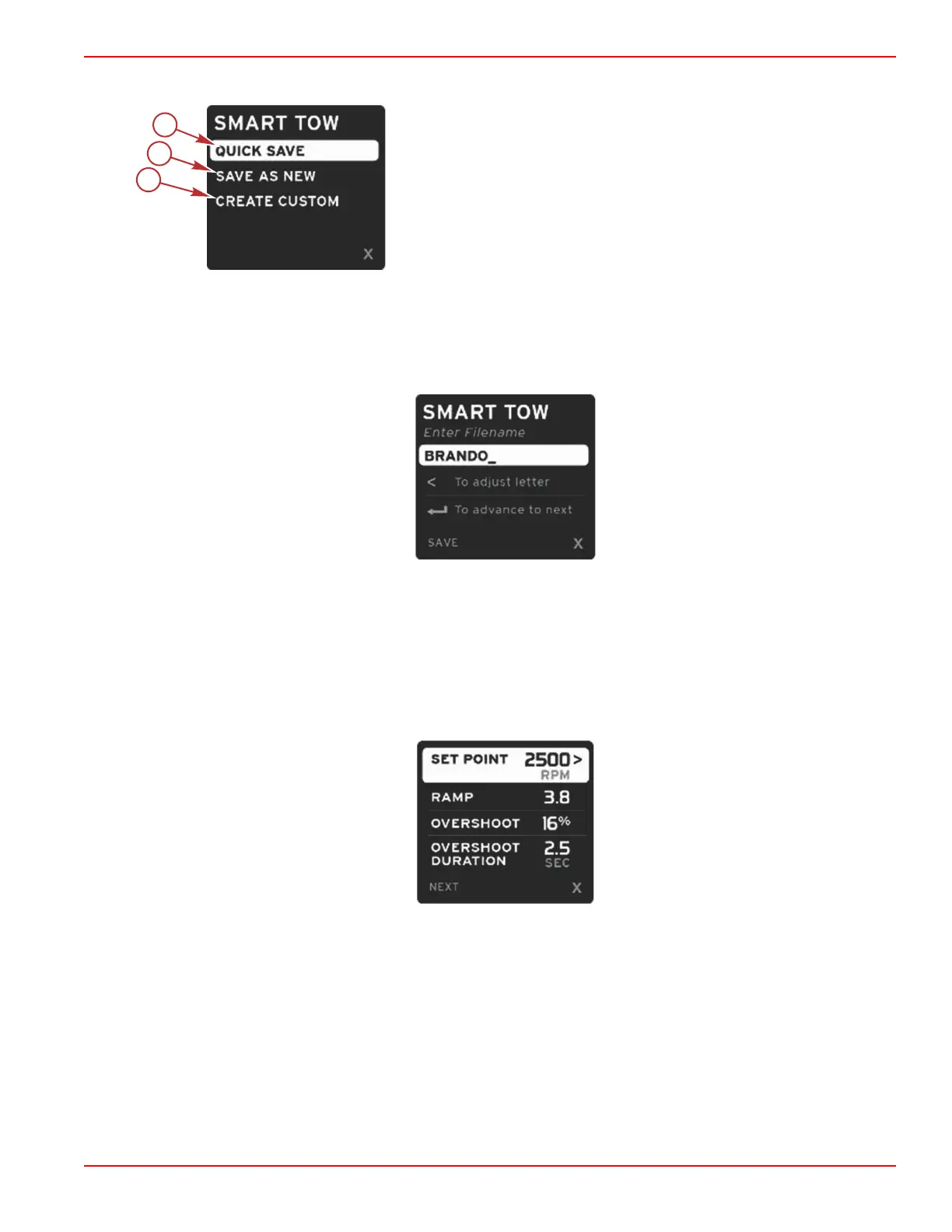

• Press on the selection to confirm.
a - Quick save
b - Save as new
c - Create custom
•
QUICK SAVE will store the existing profile with the new RPM or speed values. Press to save the data and return to the
Smart Tow contextual screen.
•
SAVE AS NEW allows the operator to store the current setting with a custom name. Press to transition to the custom file
name. The file name selection is active by default.
a. Use the screen or rotary knob to change the letters.
b. Use the rotary knob to highlight save and press the knob to confirm the changes.
NOTE: To exit, select X and press the rotary knob. The screen will transition to the main screen without saving the
new data.
Create Custom Launch
Create custom launch allows the operator to create a custom launch profile. The operator can adjust the set‑point of the RPM
or speed, ramp, overshoot, and overshoot duration. When the operator selects this option, the contextual data area will
transition to the custom profile set‑up screen.
• Use the rotary knob to move the selection box to the desired fields that require adjustment. Use the onscreen prompt to
adjust the value of the selected item.
• After the custom profile is completed, highlight NEXT or X.
a. Select Next, and the contextual data area will transition to SAVE AS NEW to create a custom name for the new
launch profile. Press the rotary knob to accept the selection.
b. Selecting exit, the custom profile settings will not be saved and the screen will transition to the main Smart Tow
screen.
