Part 1 - General Information
5 Typical Applications
5.1 Application 1

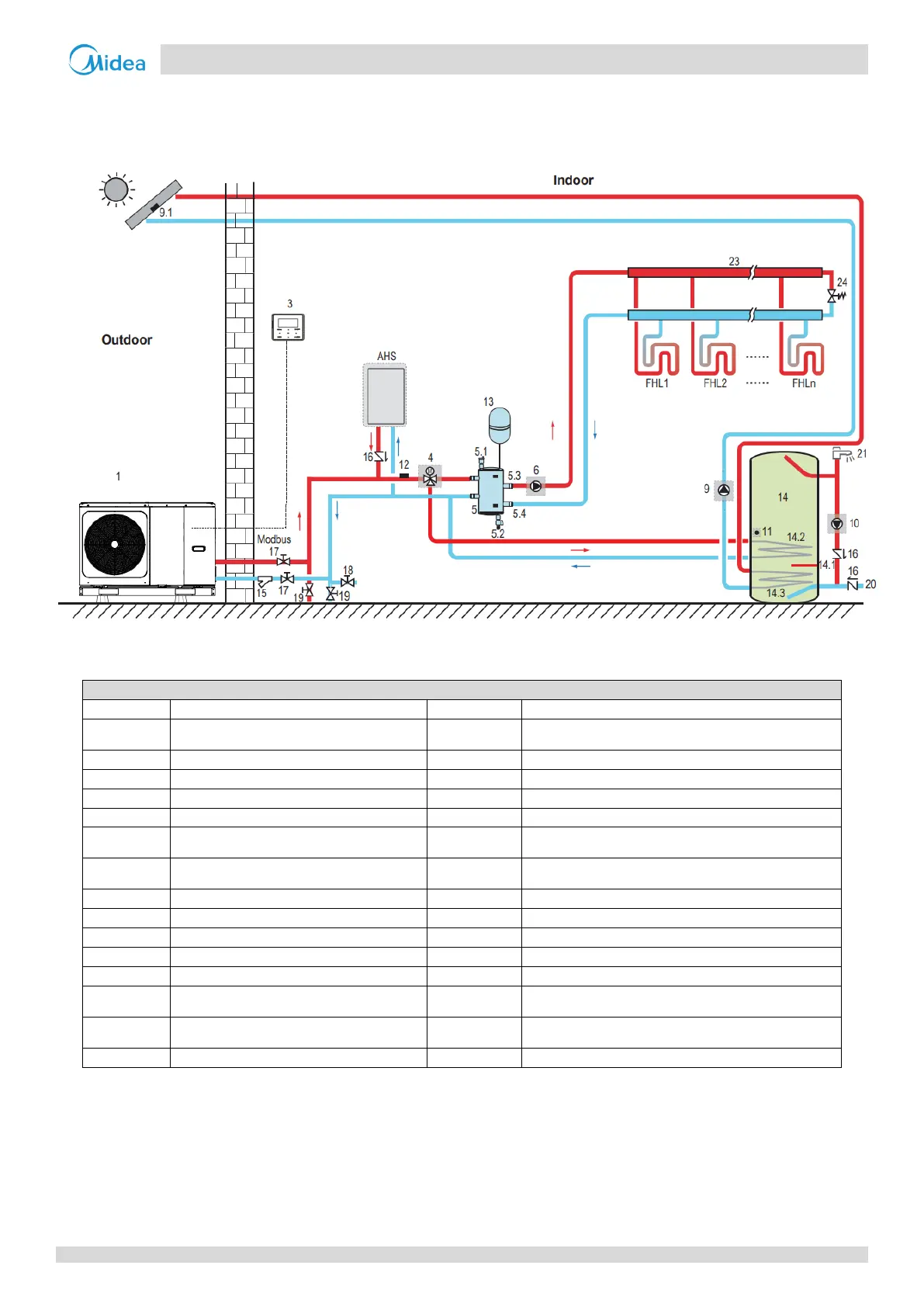

Figure 1-5.1: Application 1
Legend
1
Outdoor unit
14
Domestic hot water tank (Field supply)
3
User interface
14.1
TBH: Domestic hot water tank booster
heater (Field supply)
4
SV1:3-way valve (Field supply)
14.2
Coil 1, heat exchanger for heat pump
5
Balance tank (Field supply)
14.3
Coil 2, heat exchanger for Solar energy
5.1
Automatic bleed valve
15
Filter (Accessory)
5.2
Drainage valve
16
Check valve (Field supply)
5.3
Tbt1: Balance tank upper temperature
sensor (Optional)
17
Shut-off valve (Field supply)
5.4
Tbt2: Balance tank lower temperature
sensor (Optional)
18
Filling valve (Field supply)
6
P_o: Zone A circulation pump (Field supply)
19
Drainage valve (Field supply)
9
P_s: Solar pump (Field supply)
20
Tap water inlet pipe (Field supply)
9.1
Tsolar: Solar temperature sensor (Optional)
21
Hot water tap (Field supply)
9.2
Solar panel (Field supply)
23
Collector/distributor (Field supply)
10
P_d: DHW pipe pump (Field supply)
24
Bypass valve (Field supply)
11
T5: Domestic water tank temperature
sensor (Accessory)
FHL1…n
Floor heating loop (Field supply)
12
T1: Water flow temperature sensor
(Optional)
AHS
Auxiliary heat source (Field supply)
13
Expansion vessel (Field supply)
Notes:
1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.
Midea CAC Confidential

Midea MHC-V4W/D2N8-B Specifications

General

Brand	Midea
Model	MHC-V4W/D2N8-B
Category	Air Conditioner
Language	English
