Midea MHC-V4W/D2N8-B Engineering Data

M thermal Mono
80 202005
Midea M thermal Mono Engineering Data Book

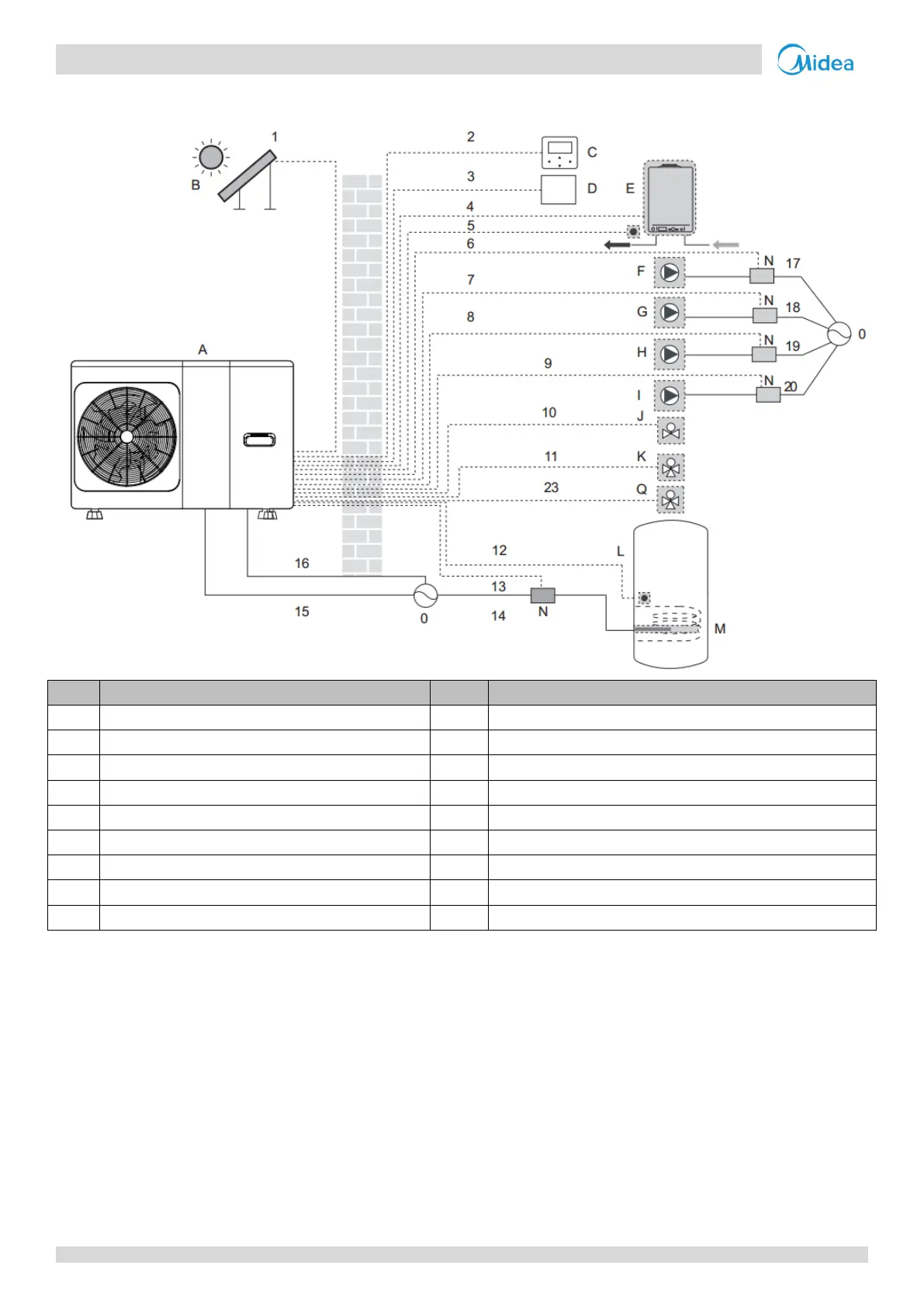

Figure 3-4.4: Wiring overview for 8/10/12/14/16kW models
Item
Description
Item
Description
A
Outdoor unit
J
SV2: 3-way valve (field supply)
B
Solar energy kit (field supply)
K
SV1: 3-way valve for domestic hot water tank (field supply)
C
User interface
L
Domestic hot water tank
D
Room thermostat (field supply)
M
Booster heater
E
Boiler (field supply)
N
Contactor
F
P_s: Solar pump (field supply)
O
Power supply
G
P_c: Mixing pump (field supply)
P
Backup heater
H
P_o: Outside circulation pump (field supply)
Q
Zone2 SV3(3-way valve)
I
P_d: DHW pump (field supply)
Midea CAC Confidential

Midea MHC-V4W/D2N8-B Specifications

General

Brand	Midea
Model	MHC-V4W/D2N8-B
Category	Air Conditioner
Language	English
