Midea M thermal Mono Engineering Data Book

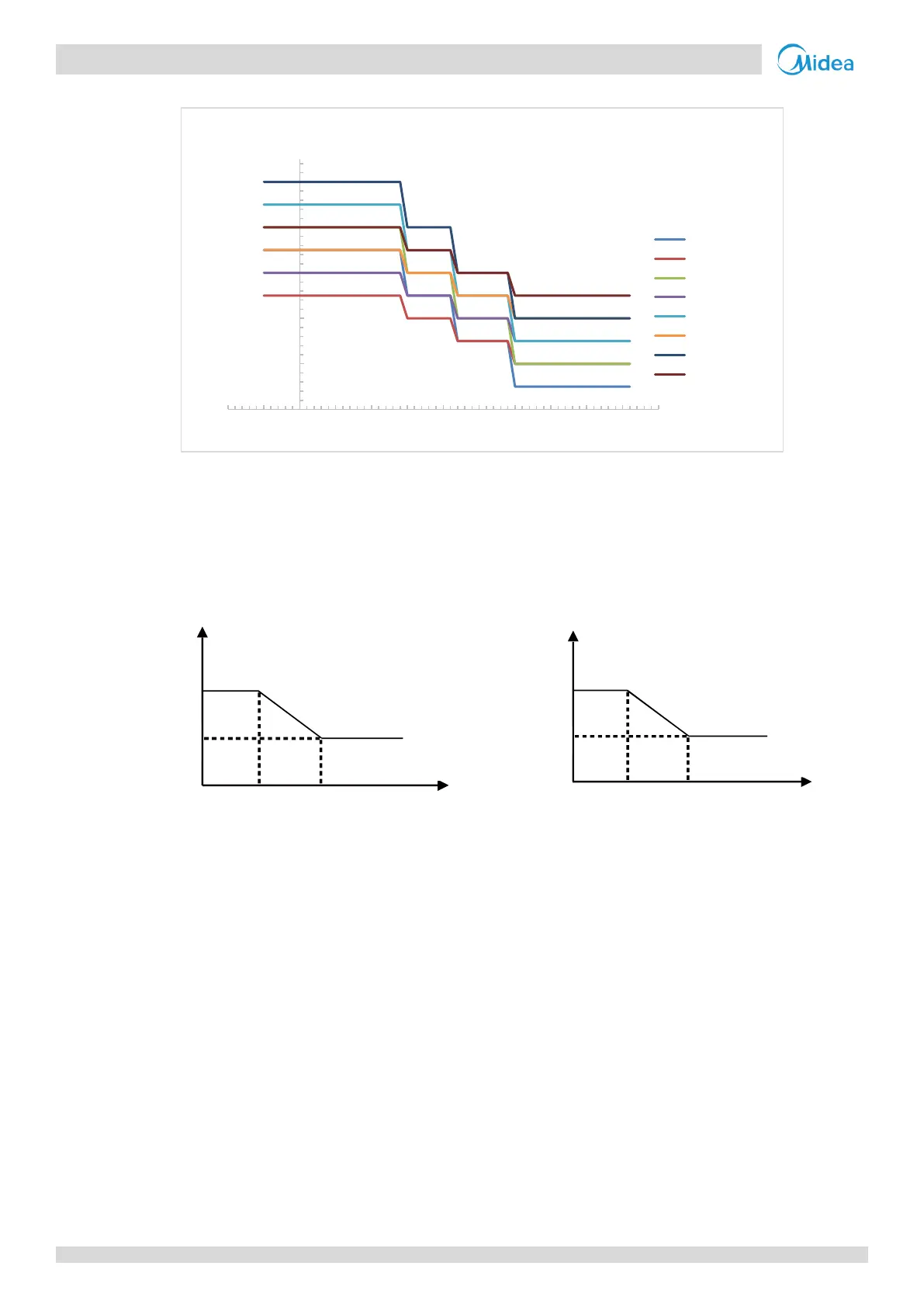

Figure 3-9.5: High temperature curves for cooling mode
1
Leaving water set temperature (⁰C )
Outdoor ambient temperature (⁰C )
Notes:
1. It only has the curves of the high temperature setting for cooling, if the high temperature is set for cooling.
2. Curve 4 is default in high temperature cooling mode and curve 6 is default in ECO mode.
Figure 3-9.6: Automatic setting curve for heating mode
Figure 3-9.7: Automatic setting curve for cooling mode
The setting of T1SETH1, T1SETH2, T4H1, T4H2 refer to Part 3, 7.6” HEATING MODE SETTING Menu” and T1SETC1, T1SETC2,
T4C1, T4C2 refer to Part 3, 7.5” COOLING MODE SETTING Menu”.
15
17
19
21
23
25
-10 -5 0 5 10 15 20 25 30 35 40 45 50
T1S(℃)
T4(℃)
Curve 1
Curve 2
Curve 3
Curve 4
Curve 5
Curve 6
Curve 7
Curve 8
T4H1
T4H2
T1SETH
2
T
1SETH
1
T4
T
1S (T1S2)
T4C1
T4C2
T1SETC
2
T1SETC
1
T4
T
1S (T1S2)
