Midea M thermal Mono Engineering Data Book

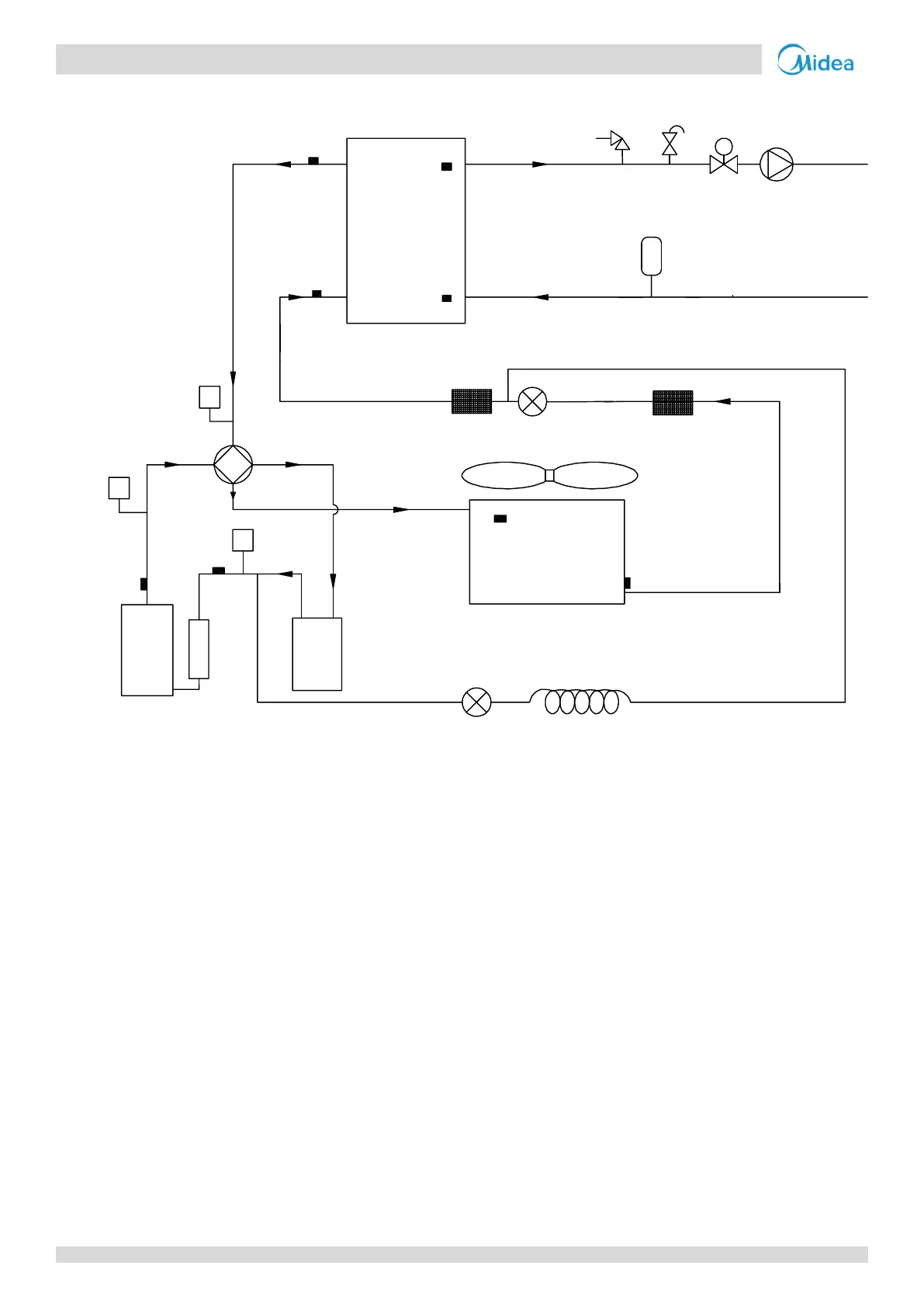

Figure 2-3.1: MHC-V8(10)W/D2N8-B0 piping diagram
F
d
e
s
c
Compressor
Accumulator
Condenser
EXV
Evaporator
Twin
Twout
T2
T2b
Pressure sensor
Safety valve Air purge valve Pump
Flow switch
High-pressure switch
Expansion vessel
Manometer
Single way solenoid valve Capillary
Discharge temp. sensor
DC motor
T4
T3
Filter
Suction temp. sensor
Filter
Low-pressure switch
