7 Hydronic Performance
MHC-V4W/D2N8-B / MHC-V6W/D2N8-B / MHC-V8W/D2N8-B/ MHC-V10W/D2N8-B

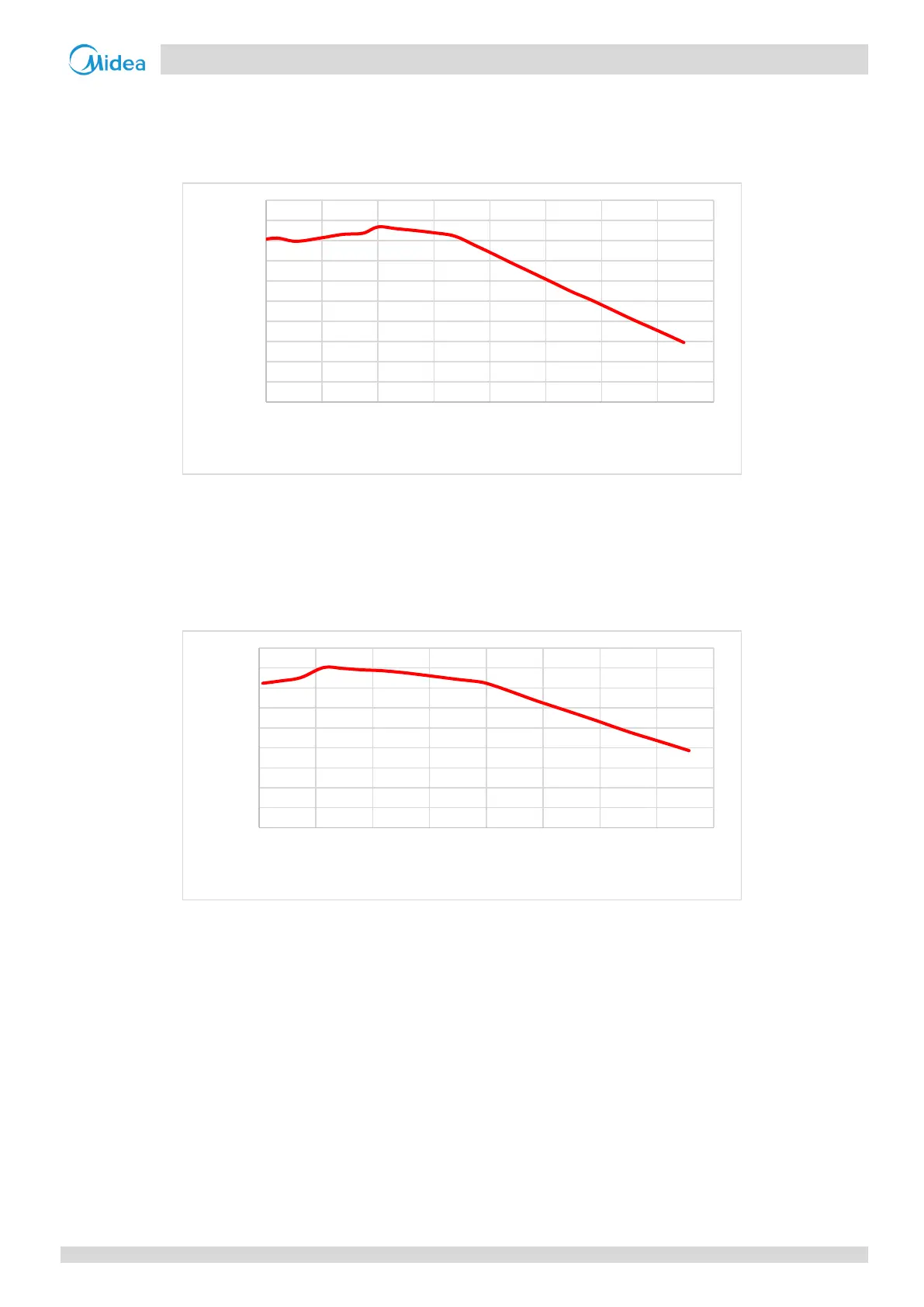

Figure 2-7.1: MHC-V4(6, 8, 10)W/D2N8-B hydronic performance
1
Abbreviations:
ESP: External static pressure
MHC-V12W/D2N8-B / MHC-V14W/D2N8-B / MHC-V16W/D2N8-B
MHC-V12W/D2RN8-B / MHC-V14W/D2RN8-B / MHC-V16W/D2RN8-B
Figure 2-7.2: MHC-V12( 14,16)W/D2(R)N8 hydronic performance
1
Abbreviations:
ESP: External static pressure
0
10
20
30
40
50
60
70
80
90
100
0.4 0.7 1.0 1.3 1.6 1.9 2.2 2.5 2.8
ESP（KPa）
water flow（m3/h）
0
10
20
30
40
50
60
70
80
90
0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.0
ESP（KPa）
water flow（m3/h）
