Midea MHC-V4W/D2N8-B Engineering Data

M thermal Mono
202005 89
Part 3 - Installation and Field Settings
T1SetC1 sets the temperature 1 of automatic setting curve for cooling mode.
T1SetC2 sets the temperature 2 of automatic setting curve for cooling mode.
T4C1 sets the ambient temperature 1 of automatic setting curve for cooling mode.
T4C2 sets the ambient temperature 2 of automatic setting curve for cooling mode.
ZONE1 C-EMISSION sets the emission type of zone1 for cooling mode.
ZONE2 C-EMISSION sets the emission type of zone2 for cooling mode.

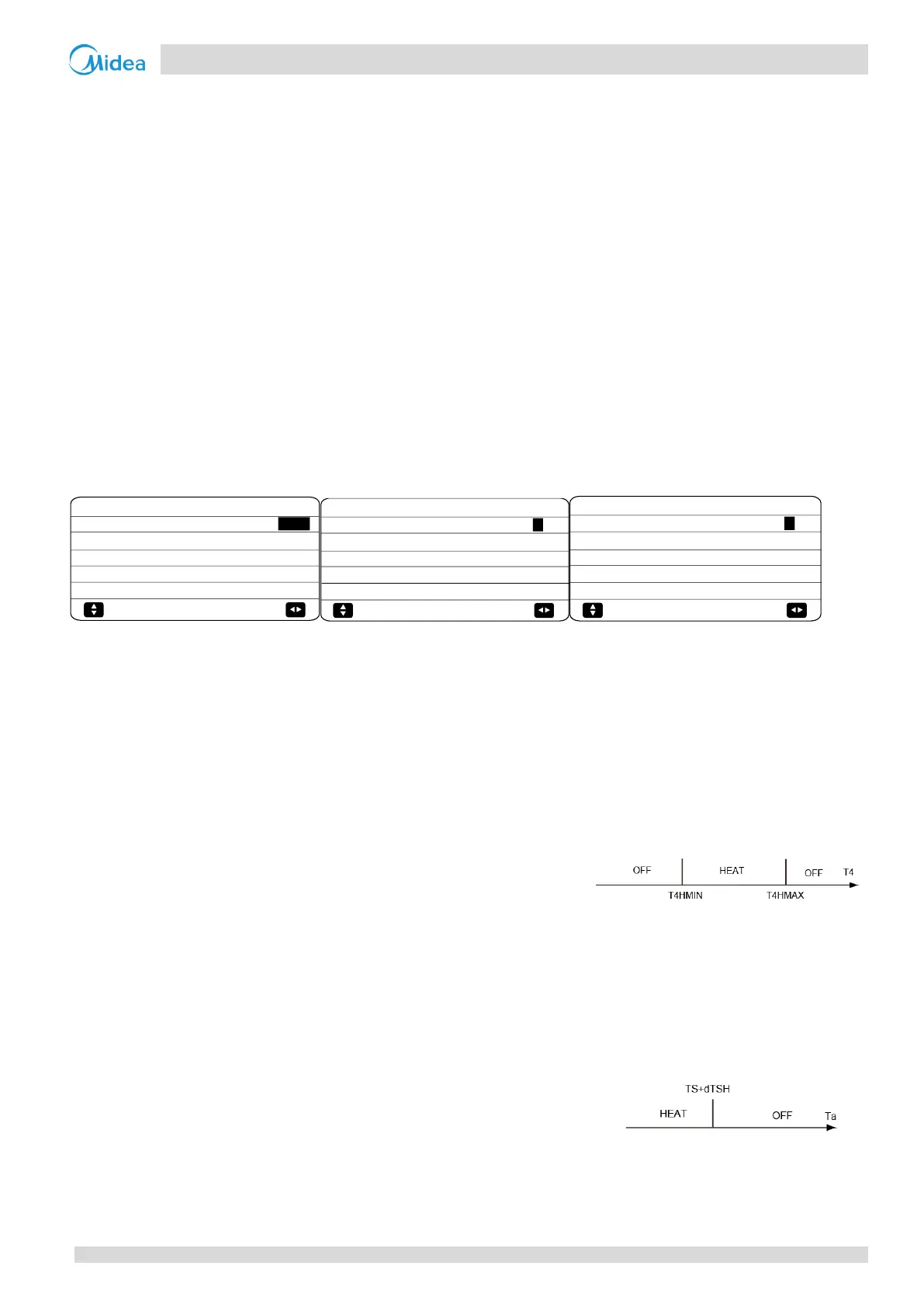

7.6 HEAT MODE SETTING Menu
MENU > FOR SERVICEMAN > HEAT MODE SETTING
Figure 3-7.14: HEAT MODE SETTING menu
In HEAT MODE SETTING the following parameters should be set.
HEAT MODE enables or disables heating mode.
t_T4_FRESH_H sets the refresh time of heating model climate temperature curve.
T4HMAX sets the ambient temperature above which the heat pump will not
operate in heating mode. The highest value that T4HMAX can take is 35°C,
which is the heating mode upper ambient temperature operating limit of the
heat pump. Refer to Figure 3-7.15.
T4HMIN sets the ambient temperature below which the heat pump will not operate in heating mode. The lowest value
that T4CMIN can take is -25°C, which is the heating mode lower ambient temperature operating limit of the heat pump.
Refer to Figure 3-7.15.
dT1SH sets the temperature difference between the heat pump leaving water
temperature (T1) and the heat pump leaving water set temperature (T1S)
above which the heat pump provides heated water to the space heating
terminals.
dTSH sets the temperature difference between the actual room temperature (Ta) and set room temperature (TS) above
16°C
-15°C
5°C
2.0HRS
YES
3 HEAT MODE SETTING
3.1 HEAT MODE
3.2 t_T4_FRESH_H
3.3 T4HMAX
3.4 T4HMIN
3.5 dT1SH
ADJUST
1/3
35°C
28°C
-5°C
5MIN
2°C
3 HEAT MODE SETTING
3.6 dTSH
3.7 t_INTERVAL_H
3.8 T1SetH1
3.9 T1SetH2
3.10 T4H1
ADJUST
2/3
FLH
2MIN
RAD.
7°C
3 HEAT MODE SETTING
3.11 T4H2
3.12 ZONE1 H-EMISSION
3.13 ZONE2 H-EMISSION
3.14 t_DELAY_PUMP
ADJUST
3/3
Figure 3-7.15: T4HMAX, T4HMIN
Abreviations:
T4: Outdoor ambient temperature
Figure 3-7.16: dTSH
Note:
Only when ROOM TEMP is enabled will this function
be available
Midea CAC Confidential
