Technical Information
49
CVA615
Coffee
Sy
stem
5.10
Rear Door Panel - Removal
Refer to figure 5-10.
1. Open the door.
2. Remove the Upper Rear Panel Fixing Screws (1).
3. Remove the Lower Rear Panel Fixing Screws (2).

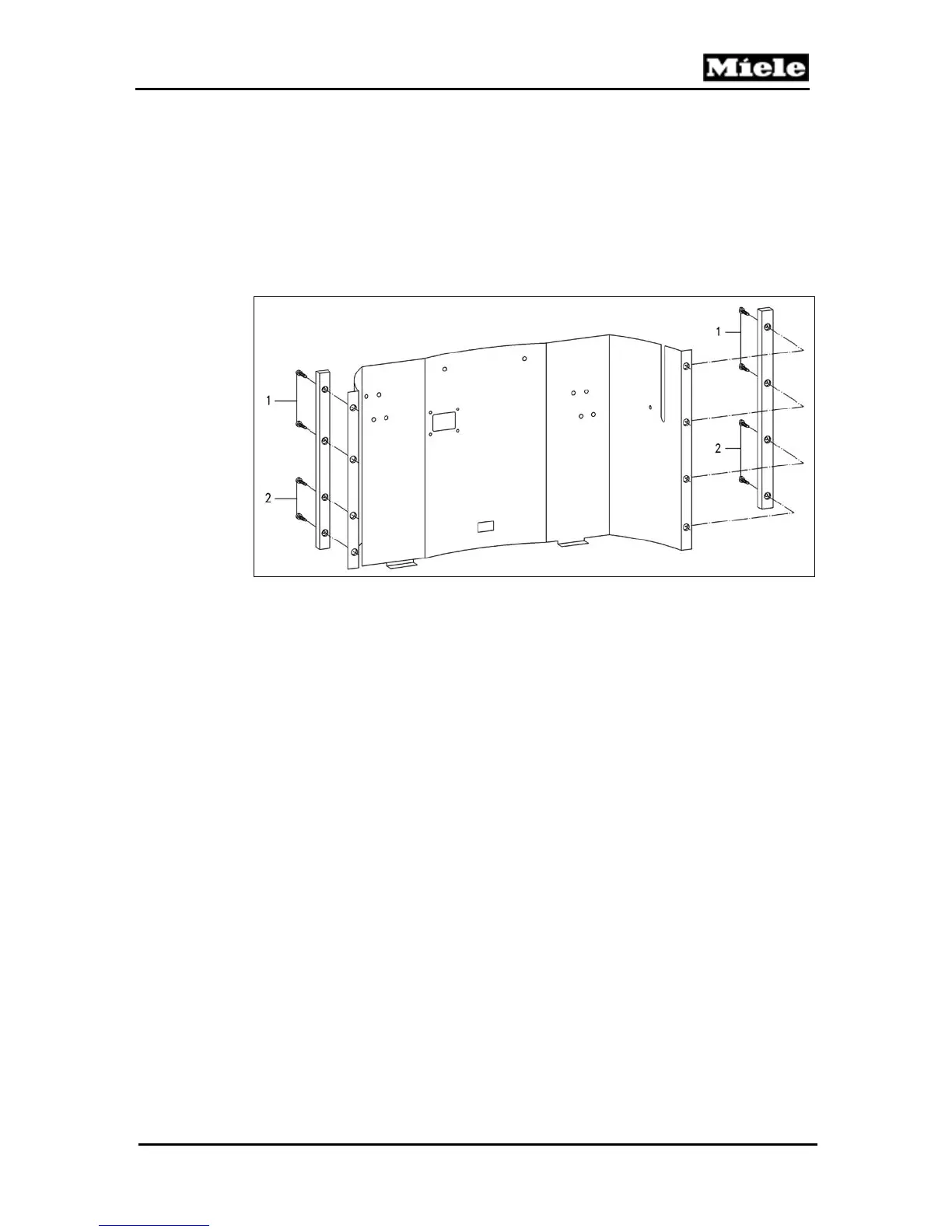

Figure 5-10:
Rear Door Panel – Removal.
56
58
Table of Contents
Default Chapter
3
Table of Contents
3
1 Construction & Design
9
Appliance Overview
9
Front View
9
Controls
9
Interior (Front of Appliance Open)
10
Technical Data
11
Layout of Components
13
2 Installation
15
Installation Procedures
15
3 COMMISSION and OPERATION
17
General Operation
17
Preparing Coffee
17
Canceling the Preparation
18
Steam Control
18
Hot Water
19
Adjusting the Coffee Grinder
20
Filling the Coffee Bean Container
21
Filling the Water Tank
22
4 DESCRIPTION of FUNCTION
23
Door Switch
23
Overflow (Reed) Switch
23
Brew Unit - Cleaning and Care
24
Removing the Brew Unit from the Appliance
24
Connection of Brew Unit to Drive Mechanism
25
Brewing Procedure
25
Brew Unit Filters
26
Ground Container
28
Waste Unit Present Switch
28
Water Tank
30
Water Level Switch
31
Grinder Assembly
33
Grinder Overload Protection
34
Ground Coffee Dispensing
36
Dispenser Switch
37
Brew Unit Drives
38
Brew Unit Drives
39
Water Pump
40
Flow Meter
40
Heaters
40
Flow through Heaters
41
Steam Heater
42
Water Path
43
Water Intake
44
Water Path - Coffee
44
Water Path - Hot Water
44
Water Path - Steam
44
Water Valve
45
Electronic Assemblies
46
Power Electronic
46
CPU Electronic
47
5 SERVICE and MAINTENANCE
49
Lid - Removal
49
Interference Suppression Filter - Removal
50
Rear Panel - Removal
50
Adjustment Slide Switch Frame - Removal
51
Door Contact Switch - Removal
52
Base Plate - Removal
53
Drip Tray - Removal
54
Overflow Switch Actuator Float - Removal
55
Overflow Switch - Removal
56
Rear Door Panel - Removal
57
Fascia Panel Cover - Removal
58
Selector Switch - Removal
59
Display Module Electronic - Removal
60
Coffee Dispensing Nozzle - Removal
61
Coffee Dispensing Nozzle - Installation
62
Steam Valve and Steam Valve Switch - Removal
63
Hot Water Nozzle - Removal
64
Hot Water Valve - Removal
64
Checking Temperature at Coffee Dispenser
65
Brew Unit - Removal (in Start/Home Position)
66
Brew Unit - Removal ( NOT in Start/Home Position)
67
Brew Unit Connections
68
Brew Unit - Installation
69
Brew Unit - Cleaning Procedure
69
Brew Unit - Filter Cleaning
70
Brew Unit - Degreasing Via the Rinse Cycle
71
Brew Unit - Lubrication
73
Brew Unit - Manual Reset to Home (out of Appliance)
74
Brew Unit Creamer Valve - Removal
75
Brew Unit Handle - Removal
75
Brew Unit Funnel - Removal
76
Brew Unit Ram - Service
77
Brew Unit Drives - Service
79
Grinder Retaining Screws
81
Upper Front Plate Assembly
82
Water Tank Float - Removal
84
Water Tank Lip Seal - Removal
85
Lower Section of Tank Valve - Removal
86
Beans Container - Removal
88
Beans Container Guide - Removal
89
Grinder - Disassembly
90
Grinder
92
Grinder Assembly - Basic Setting
93
Grinder Unit - Removal
94
Grinder Coupling
95
Dispensing Solenoid - Removal
96
Dispenser Switch - Removal
96
Waterpath & Flowmeter - Testing
97
Test Jumper Position
98
Water Path Leakage Test
99
Water Path Connections - Opening
100
Water Path Connections - Closing
100
6 Fault Diagnosis
101
Programming Mode
101
Service Mode
102
Service Mode Navigation
103
Displayed Messages
104
Fault Diagnosis
106
Wiring Diagram
109
