Technical Information
86
CVA615 Coffee System
5.40 Grinder Unit - Removal
1. Open the door.
2. Remove the Beans Container (5.39).
3. Remove the Waste Container, Brew Unit and Water Tank.
4. Remove the Top Lid (5.1)
5. Remove the Beans Container Guide (5.40).
6. Remove the Adjustment Slide Switch Frame (5.4).
7. Remove the Adjustment Lever Fixing Screws and Lever.
8. Remove the cover fixing screws (Figure 5-47 (4)).
9. Remove the cover.
Note
Mark the polarity of the plug (Figure 48, Item 1), connected
to the electronic unit.

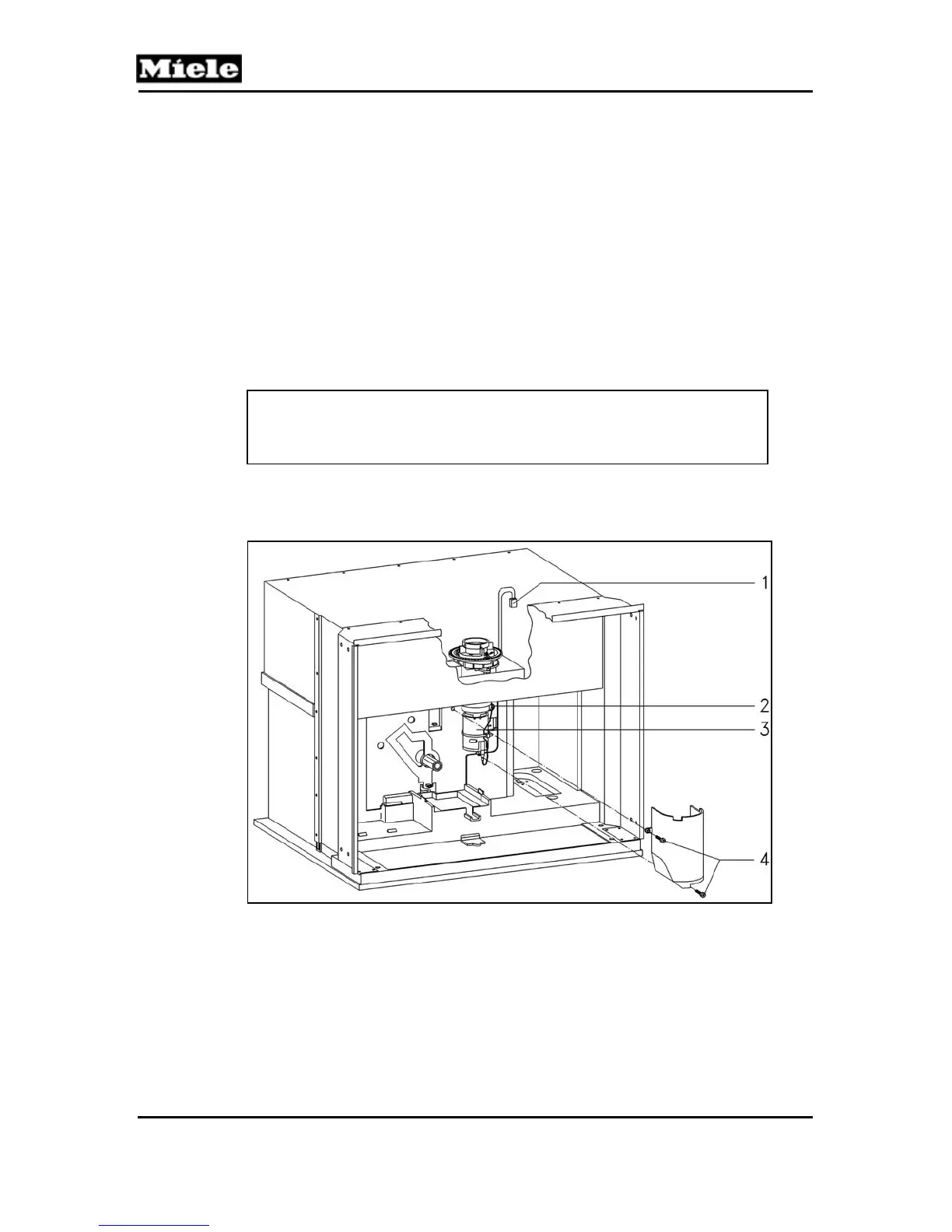

Figure 5-47: Grinder Removal
To Next Page
