CVA615 Coffee System
15. Disconnect the Water Intake Connection to the Hot Water /
Coffee Heater.
16. Refer to Figure 5-32. Remove the two Hot Water / Coffee
Heater Screws; Separate the Heater from its mounting position.
17. Refer to Figure 5-32. Remove the two “Cosmetic Fixing” screws.
Remove the Cosmetic Fixing from inside the appliance.

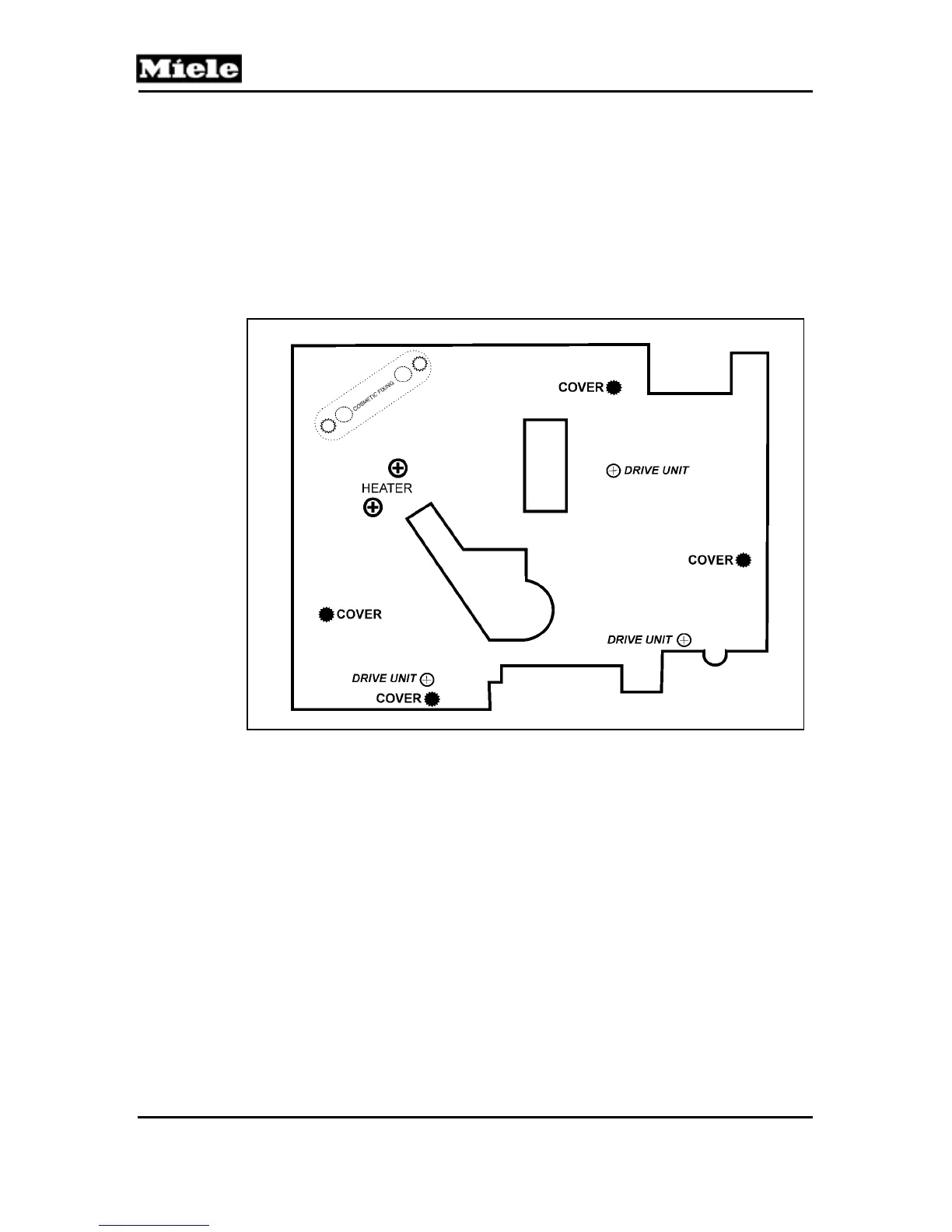

Figure 5-32: Front Plate Assembly with Retaining Screw Locations.
18. Refer to Figures 5-33 and 5-34.
19. Remove the two screws and nuts that secure the Grinder Plate
Assembly to the top of the Front Plate Assembly.
