Technical Information
8
T1500 Series Clothes Dryers
1.6 Layout of Components – T1576
A2 Door Lock
B3/1 Residual Moisture Sensor
F1 Temperature Limiters
H3/6 Lamp – Drum Interior
2R30 Temperature Sensor (Heaters)
K1 Heater Relays
M5 Motor – Drum Drive
1N1 Control Electronic
2N1 Power Electronic (Piggybacked to 1N1)
R1 Heater Bank
R30 Temperature Sensor (NTC)
S1 Selector Switch
X3/1 Terminal Block
Z1 Interference Capacitor

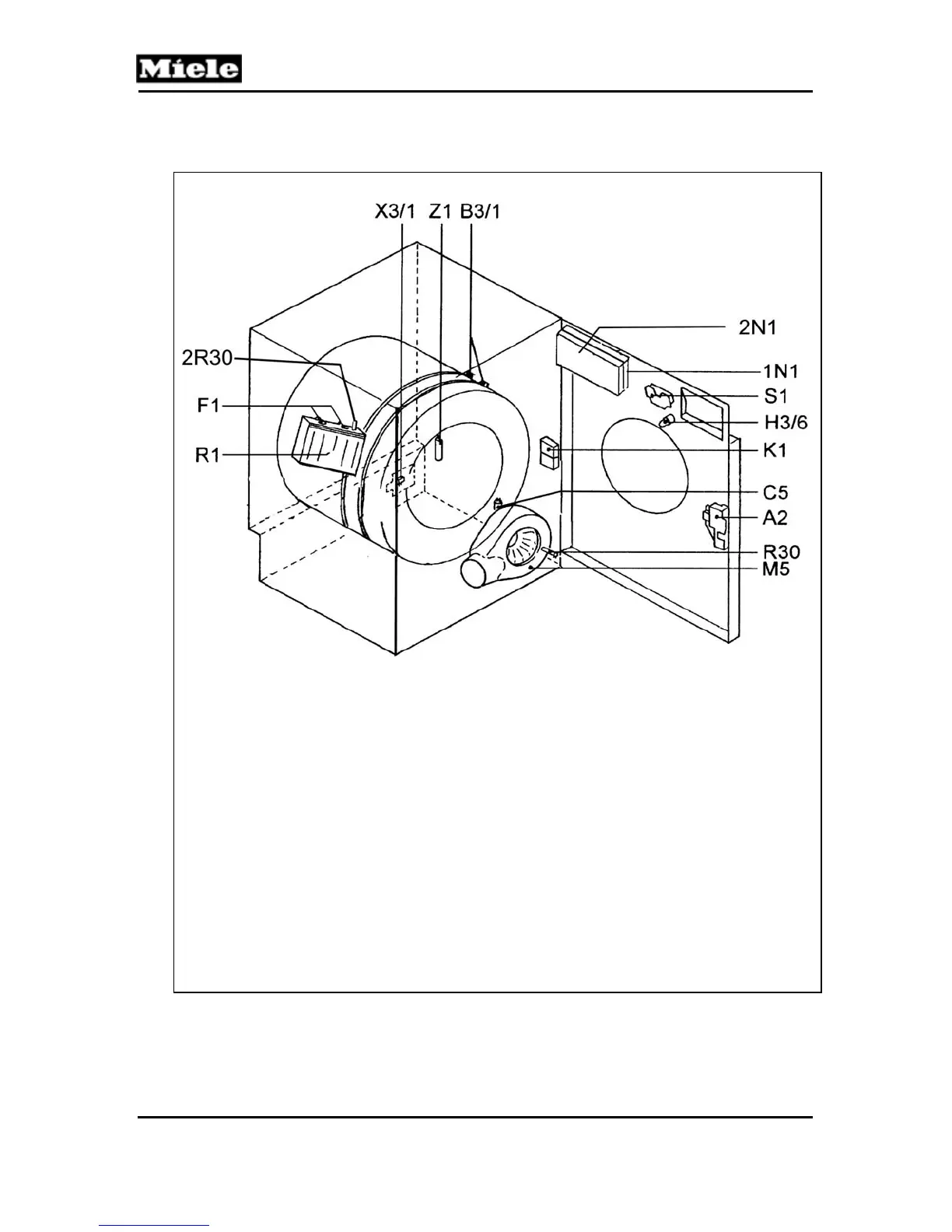

Figure 1-9: Layout of Components (T1576)
