T1500 Series Clothes Dryers
1.2 Appliance Overview – Condenser Models

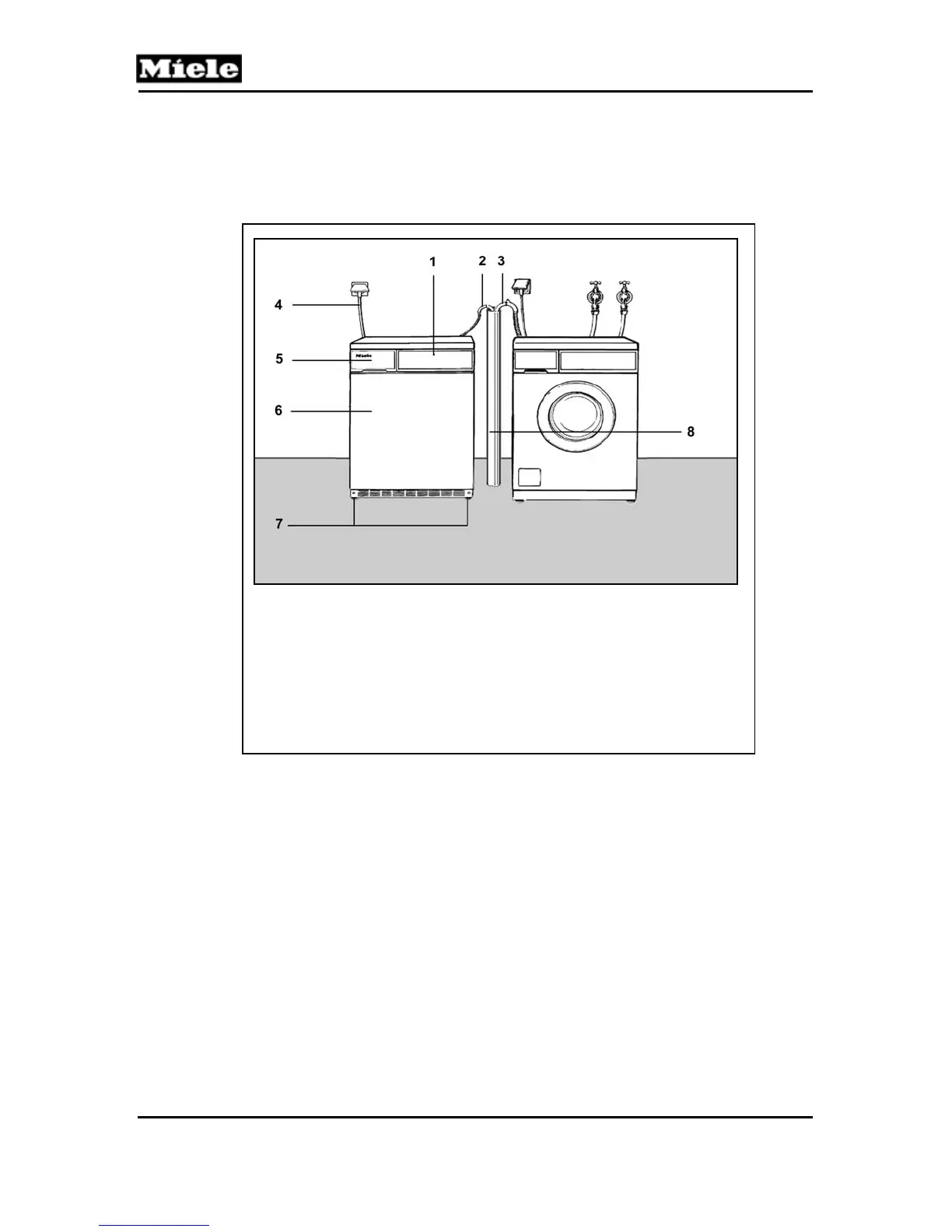

(Shown Installed Along Side a Washer)
1. Control Panel
2. Condenser Drain Hose
3. Washer Drain Hose (for clarification only – not part of Dryer)
4. Electrical Cord and Plug
5. Condensed Water Drawer
6. Drum Door
7. Adjustable Legs
8. Stand Pipe
Figure 1-2: Typical installation with Miele Clothes Washer.
Note: Condenser hose is placed into the same stand pipe the washer
drain hose uses.
