T1500 Series Clothes Dryers
5.8 Heater Relays - Access

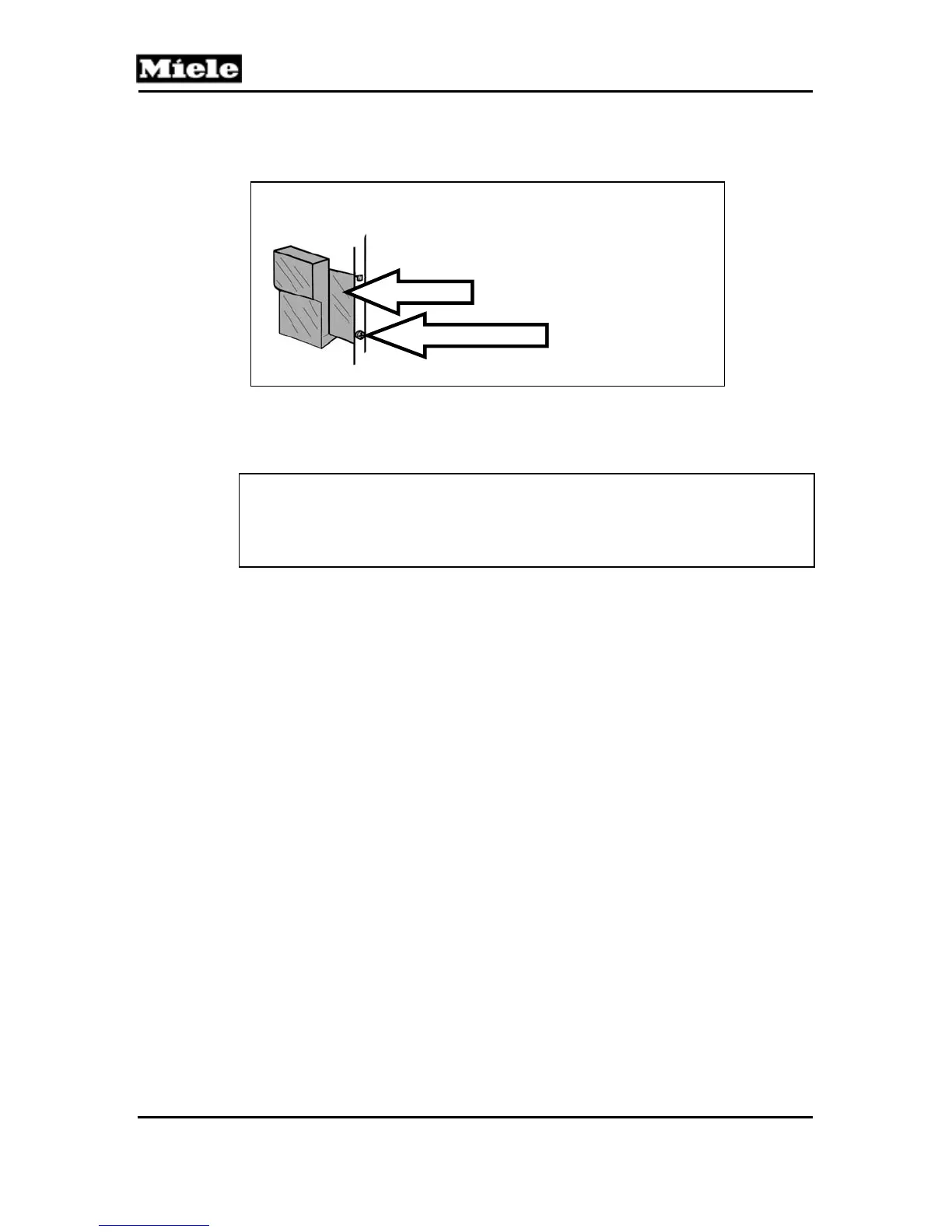

Figure 5-6: The Heater Relay Bracket is attached to the right side vertical
section of the frame, and can be easily be accessed with the Service Panel
Opened.
Warning
Ensure the appliance is disconnected from the main power, before
attempting to remove the bracket.
1. Open the Front Panel (5.2 or 5.3).
2. Locate the Heater Relay Bracket on the right side vertical
section of the frame.
3. Remove the securing screw; lift bracket from frame.
4. Position bracket to allow access to the Relay(s).
5. Slide each Relay from the bracket to release.
Bracket
Bracket Screw
