Technical Information
35
T1500 Series Clothes Dryers
5.11 Fan Motor – Removal
1. Open the Front Service Panel (5.2 or 5.3).
2. Remove the Vent-Ring Assembly (Figure 5-10) and the Air Duct
(on vented models) or Coupler (on Condenser) models.

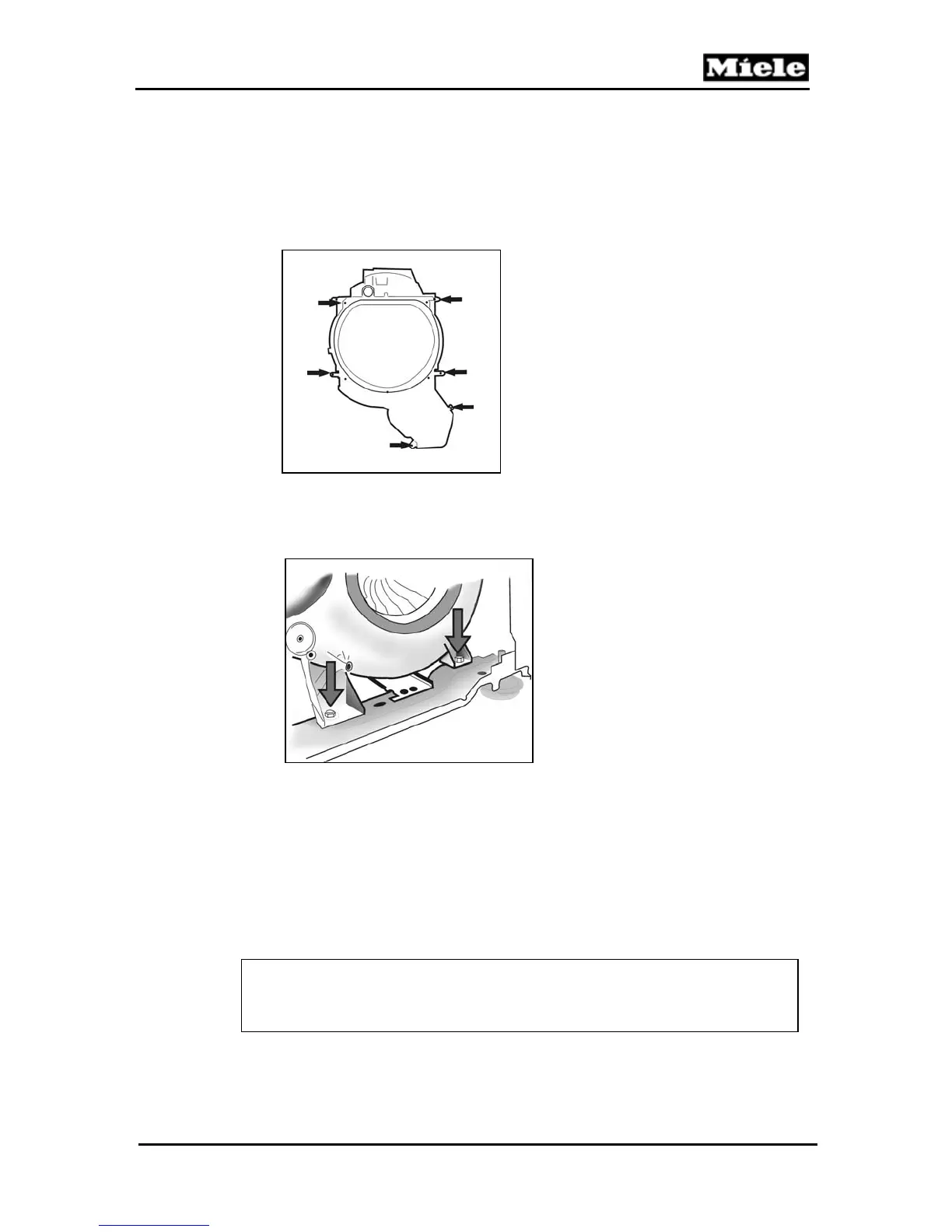

Figure 5-10: Vent Ring Assembly
3. Remove the two (2) Fan Motor Bolts (Figure 5-11).
Figure 5-11: Fan Motor Bolts.
4. Slide the Fan Motor toward the front of the appliance, out if the
locking track.
5. Lift the Fan Motor; tilting it slightly upward toward the back to
release it from the belt.
6. Position the Fan Motor toward the front of the appliance;
disconnect the electrical connection.
Warning:
Before handling the Fan Motor Assembly, ensure the capacitor is
fully discharged of stored energy.
7. Lift the motor from the appliance to remove.
